Eaton Crouse-Hinds 814 Pull Elbow - NEC/CEC
Part Number: 814
Quick Summary
The Eaton Crouse-Hinds 814 pull elbow is a rigid/IMC conduit fitting for mounting enclosures and boxes. Installers often struggle with sealing at 90° turns and misalignment in tight spaces. This NEC/CEC-compliant UL-listed part supports ordinary/non-hazardous locations and helps meet code requirements while reducing field adjustments. With its malleable iron body and gasketed connection, it delivers durable performance in demanding environments, while the 1-1/2 inch trade size keeps wiring routes tidy and compliant.
Product Information
Extended Description

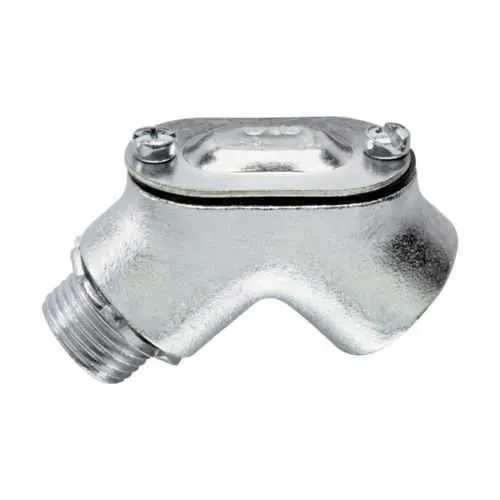

814 Eaton Crouse-Hinds: Eaton Crouse-Hinds series pull elbow, Rigid/IMC, Gender end 1: male, Gender end 2: female, Malleable iron, 90°, 1-1/2", Gasketed-rigid to box (male to female)
Product Name
Eaton Crouse-Hinds series rigid/IMC pull elbow
Catalog Number
814
Product Length/Depth
4.06 in
Product Height
3.63 in
Product Width
4.06 in
Product Weight
2.2 lb
UPC
784564108142
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Conduit type
Rigid/IMC
Type
Gasketed-rigid to box (male to female)
Gender end 1
Male
Gender end 2
Female
Shape
90° angle
Trade size
1-1/2"
Material
Malleable iron
Crouse-Hinds series Malleable and Zinc Pull Elbows and Tees - Rigid-IMC catalog page
Pull Elbows and Tees - Rigid-IMC UL certification (810, 820 and 850 series)
Pull Elbows and Tees - Rigid-IMC UL certification (810, 820 and 850 series)
Eaton Specification Sheet - 814
Feature: 1-1/2 inch trade size with a 90° gasketed-rigid-to-box configuration. Business Impact: Enables precise conduit routing around corners while maintaining a weather-tight seal, reducing leak paths and field sealing time. Application: Ideal for control panels, enclosures, and machine housings in dry and damp industrial settings. Feature: Malleable iron construction compatible with rigid/IMC conduit. Business Impact: Delivers robust durability against vibration, impacts, and long service life in challenging environments. Application: Plant floors, outdoor enclosures, and harsh manufacturing zones. Feature: Gasketed connection from rigid conduit to enclosure box (male to female). Business Impact: Ensures a reliable seal against dust and moisture ingress, lowering maintenance and rework. Application: Electrical rooms and equipment cabinets with moderate environmental exposure. Feature: Defined 90° geometry with precise dimensions (1-1/2" trade size, 4.06 in length, 3.63 in height, 4.06 in width). Business Impact: Facilitates accurate panel layout and cutouts, speeding installation and reducing field adjustments. Application: Wall or panel-mounted installations where space planning matters. Feature: NEC/CEC compliance and UL certification for Conduit Fittings (810/820/850 series). Business Impact: Aligns with widely adopted codes, minimizes inspector questions, and lowers compliance risk. Application: Facility-wide deployments in ordinary locations requiring trusted, certified fittings.
Get a Quick Quote for a Eaton Crouse-Hinds 814
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds 814?
Enquire Now
FAQs
The 814 is designed for rigid and IMC conduit with a gasketed connection to a box, featuring male and female ends. It fits 1-1/2 inch trade size installations and pairs with standard Crouse-Hinds fittings in control panels and enclosures.
The gasketed seal minimizes moisture and dust ingress while maintaining a secure, leak-free junction. This reduces field sealing time, lowers maintenance, and improves long-term enclosure integrity in industrial environments.
Yes. The 814 is UL-listed for rigid-IMC conduit fittings and complies with NEC/CEC standards, with an area classification suitable for Ordinary/Non-Hazardous locations, supporting code-compliant installations.
Trade size is 1-1/2 inch with overall dimensions around 4.06 in (L) x 4.06 in (W) x 3.63 in (H). The unit weighs approximately 2.2 lb and carries UPC 784564108142, aiding accurate cutouts and mounting plans.
It provides a reliable 90° bend with a gasketed seal, reducing misalignment and leakage at corners. Its durable malleable iron body supports harsh environments, improving panel longevity and simplifying compliance in standard industrial facilities.
