Eaton Crouse-Hinds 820 Rigid/IMC Pull Elbow - NEC/CEC
Part Number: 820
Quick Summary
The Eaton Crouse-Hinds 820 rigid/IMC pull elbow is a 90 degree conduit fitting designed for rigid and IMC conduit in control panels and equipment enclosures. In tight installations, space constraints and fitment challenges can slow projects and increase labor. This model aligns with NEC and CEC standards and carries UL certification references for the 810, 820, and 850 series, supporting compliance across North America. With a 1/2 inch trade size and a robust malleable iron body, it delivers reliable performance in ordinary locations, helping engineers reduce rework and accelerate commissioning while maintaining code conformity and long term serviceability.
Product Information
Extended Description

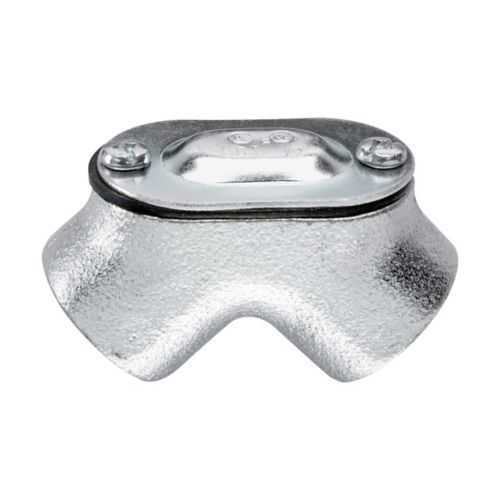

820 Eaton Crouse-Hinds: Eaton Crouse-Hinds series pull elbow, Rigid/IMC, Gender end 1: female, Gender end 2: female, Malleable iron, 90°, 1/2", Rigid to rigid (female to female)
Product Name
Eaton Crouse-Hinds series rigid/IMC pull elbow
Catalog Number
820
Product Length/Depth
2.19 in
Product Height
2.19 in
Product Width
2.19 in
Product Weight
0.33 lb
UPC
784564108203
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Conduit type
Rigid/IMC
Type
Rigid to rigid (female to female)
Gender end 1
Female
Gender end 2
Female
Shape
90° angle
Trade size
1/2"
Material
Malleable iron
Crouse-Hinds series Malleable and Zinc Pull Elbows and Tees - Rigid-IMC catalog page
Pull Elbows and Tees - Rigid-IMC UL certification (810, 820 and 850 series)
Pull Elbows and Tees - Rigid-IMC UL certification (810, 820 and 850 series)
Eaton Specification Sheet - 820
Feature: 90 degree pull elbow with female ends for both ends. Business Impact: Enables smooth turns in tight panel layouts, reducing the number of additional fittings and potential leak points. Application: Ideal for control panels and equipment enclosures where limited space demands precise routing. Feature: Malleable iron construction. Business Impact: Delivers rugged durability in vibration rich industrial environments, lowering maintenance costs and downtime. Application: Suitable for harsh manufacturing floors and outdoor panels where conformance to standards is essential. Feature: Rigid to rigid compatibility with IMC and rigid conduit. Business Impact: Simplifies procurement by supporting common conduit systems while ensuring a secure, code compliant fit. Application: Useful in new installations and retrofit projects in automation cabinets. Feature: 1/2 inch trade size. Business Impact: Fits widely used conduit runs, enabling faster assembly and reduced inventory of uncommon parts. Application: Preferred in motor control centers and machine enclosures. Feature: NEC/CEC compliance and UL certification references. Business Impact: Assures regulatory alignment and traceable certification for safe, compliant installations. Application: Critical for projects in ordinary locations requiring verified standards. Insight: This elbow complements common pull elbow ecosystems and reduces the risk of misfit components during panel builds.
Get a Quick Quote for a Eaton Crouse-Hinds 820
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds 820?
Enquire Now
FAQs
The 820 is designed for rigid and IMC conduit with female ends on both sides. It supports a 1/2 inch trade size, making it a practical choice for standard control panel and enclosure installations where rigid conduit routing is required.
Its 90 degree bend and compact malleable iron body facilitate routing in confined panel spaces. The female to female configuration simplifies alignment with existing conduits, reducing installation steps and rework while delivering a secure, code-compliant connection.
Yes. The 820 series is documented for NEC/CEC standards and UL certification coverage for rigid-IMC pull elbows, including the 810, 820, and 850 series, ensuring regulatory compliance for ordinary location installations.
The 820 has a 1/2 inch trade size, is made of malleable iron, and features roughly 2.19 inch dimensions for length, height, and width with a weight of about 0.33 lb, which informs space planning and package weight in assemblies.
Official data can be found in Eaton's Crouse-Hinds 820 specification sheet and catalog pages, along with UL certification reports for Rigid-IMC elbows. Downloads include the 820 product sheet and relevant UL and catalog references for rapid integration into engineering documentation.
