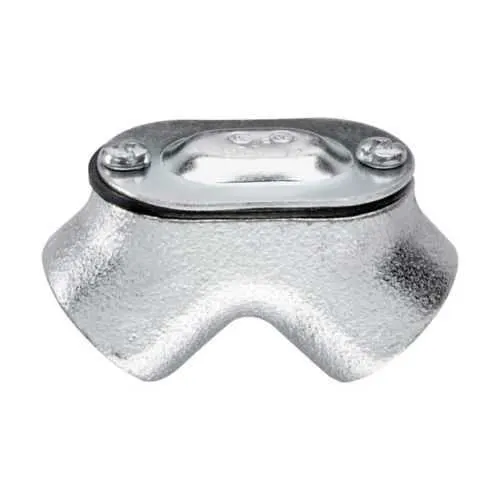

Eaton Crouse-Hinds 821 Rigid/IMC Pull Elbow - NEC/CEC
Part Number: 821
Quick Summary
Eaton Crouse-Hinds 821 rigid/IMC pull elbow provides a secure conduit transition for 3/4" rigid or IMC runs in electrical enclosures and industrial installations. This fitting reduces installation time by simplifying alignment and eliminating misfits, while delivering reliable mechanical strength. Engineers often struggle with incompatible joints in rigid/IMC systems, risking enclosure integrity and project delays. The 821's malleable iron construction and female ends ensure consistent mating with standard conduits, supporting NEC/CEC compliance and Canadian UL certifications. By delivering durable performance in ordinary locations, this elbow offers tangible business value through faster deployments, fewer field issues, and lower maintenance costs in demanding environments. The result is improved predictability and interoperability across the Eaton Crouse-Hinds conduit ecosystem, boosting project efficiency and long-term reliability.
Product Information
Extended Description
821 Eaton Crouse-Hinds: Eaton Crouse-Hinds series pull elbow, Rigid/IMC, Gender end 1: female, Gender end 2: female, Malleable iron, 90°, 3/4", Rigid to rigid (female to female)
Product Name
Eaton Crouse-Hinds series rigid/IMC pull elbow
Catalog Number
821
Product Length/Depth
2.31 in
Product Height
2.31 in
Product Width
2.31 in
Product Weight
0.44 lb
UPC
784564108210
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Conduit type
Rigid/IMC
Type
Rigid to rigid (female to female)
Gender end 1
Female
Gender end 2
Female
Shape
90° angle
Trade size
3/4"
Material
Malleable iron
Crouse-Hinds series Malleable and Zinc Pull Elbows and Tees - Rigid-IMC catalog page
Pull Elbows and Tees - Rigid-IMC Canadian certification (810, 820 and 850 series)
Pull Elbows and Tees - Rigid-IMC Canadian certification (810, 820 and 850 series)
Eaton Specification Sheet - 821
The 821 is a 3/4" trade-size pull elbow with a 90° bend and female-to-female ends for rigid/IMC conduit. This geometry standardizes tight-angle transitions, reducing field adjustment time and misalignment risk. Installers benefit from immediate compatibility with common conduit components, enabling faster, code-compliant assembly. Material and construction deliver a clear business advantage: malleable iron offers strong mechanical performance and vibration resistance. The rugged alloy withstands harsh industrial environments, lowering replacement costs and maintenance cycles over the life of the installation. In outdoor or dirty environments, the durable finish helps prevent corrosion-related failures. Compliance and certifications are built in: NEC/CEC standards and UL Canada certification support regulatory alignment. Ordinary/non-hazardous location ratings simplify project scoping and audits, while the Canadian certification helps streamline procurement for cross-border projects. Together, these factors reduce risk and accelerate commissioning. Practical dimensions support planning: at 2.31 in length, width, and height, with a 0.44 lb weight, the fitting fits compact spaces and minimizes load on conduits. The female-to-female configuration removes the need for adapters, reducing clutter and potential leakage points. Its compatibility with the broader Eaton Crouse-Hinds family simplifies stocking and maintenance. Overall, the 821 improves installation efficiency and system reliability in control panels, switchgear, and industrial machinery. By pairing robust malleable iron with a proven 90° geometry, it helps ensure long-term performance while keeping installation costs predictable in large-scale deployments.
Get a Quick Quote for a Eaton Crouse-Hinds 821
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds 821?
Enquire Now
FAQs
Yes. The Eaton Crouse-Hinds 821 is designed for rigid and IMC conduit with female-to-female ends, providing direct mating to standard conduit components without adapters. Its 3/4" trade size and 90° geometry support straightforward routing in panels, enclosures, and equipment rooms, helping installers maintain code compliance and consistent junction integrity.
Key specs include malleable iron construction, 90° angle, 3/4" trade size, and female ends. The unit measures 2.31 inches in length, height, and width and weighs approximately 0.44 pounds. UPC is 784564108210, and it is rated for rigid-to-rigid connections in ordinary/non-hazardous locations.
The 821 is intended for ordinary/non-hazardous locations and aligns with NEC/CEC standards. It is part of the Crouse-Hinds pull elbows family and has Canadian UL certification coverage for rigid-IMC fittings, supporting cross-border projects and compliant installations in industrial facilities.
Plan for direct mating with standard rigid/IMC components, avoiding unnecessary adapters. Ensure proper alignment of conduits before tightening, and consider space for the 2.31 in footprint in tight panels or enclosures. The malleable iron construction provides durability, but verify support hardware and mounting to manage vibration and impact in harsh environments.
Using the 821 reduces field assembly time, minimizes misfits and rework, and improves long-term reliability by eliminating extra adapters and joints. Durable malleable iron withstands industrial wear, aiding maintenance planning and reducing replacement costs. The result is faster project completion, lower lifecycle costs, and more predictable BOMs for multi-location deployments.
