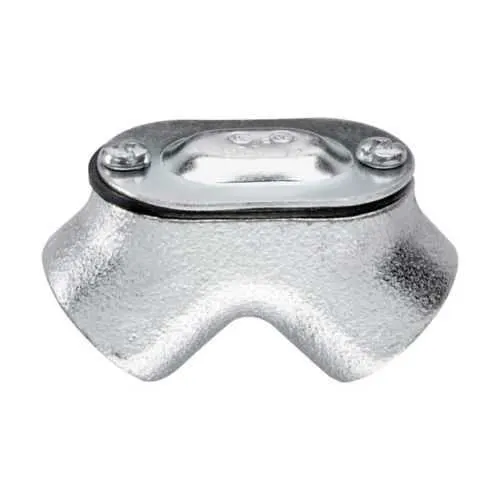

Eaton 823 Pull Elbow - Rigid/IMC, 90°, Female-Female
Part Number: 823
Quick Summary
Eaton 823 Pull Elbow is a rigid/IMC conduit fitting used to form a precise 90° connection between straight conduits in control panels and equipment. In dense panels and retrofit projects, misfit fittings slow assemblies and drive labor costs higher. This product carries NEC/CEC compliance and UL certification for Rigid-IMC, and is suitable for ordinary/non-hazardous locations, reducing regulatory risk. With a 1-1/4" trade size and malleable iron construction, it delivers rugged durability and predictable performance while simplifying procurement by aligning with standard conduit inventories. Its compact form supports quick field alignment, minimizing downtime in busy electrical rooms.
Product Information
Extended Description
823 Eaton Crouse-Hinds: Eaton Crouse-Hinds series pull elbow, Rigid/IMC, Gender end 1: female, Gender end 2: female, Malleable iron, 90°, 1-1/4", Rigid to rigid (female to female)
Product Name
Eaton Crouse-Hinds series rigid/IMC pull elbow
Catalog Number
823
Product Length/Depth
3.63 in
Product Height
3.63 in
Product Width
3.63 in
Product Weight
1.18 lb
UPC
784564108234
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Conduit type
Rigid/IMC
Type
Rigid to rigid (female to female)
Gender end 1
Female
Gender end 2
Female
Shape
90° angle
Trade size
1-1/4"
Material
Malleable iron
Crouse-Hinds series Malleable and Zinc Pull Elbows and Tees - Rigid-IMC catalog page
Pull Elbows and Tees - Rigid-IMC UL certification (810, 820 and 850 series)
Pull Elbows and Tees - Rigid-IMC UL certification (810, 820 and 850 series)
Eaton Specification Sheet - 823
Feature: Rigid/IMC construction in malleable iron provides a sturdy conduit connection that resists bending and cracking under vibration. Business impact: This enhances long-term reliability, reduces maintenance trips, and lowers lifecycle costs in factory floors and outdoor enclosures. Application: Ideal for control panels and equipment housings where rugged service is required.Feature: 90° pull elbow design with female ends simplifies alignment and installation. Business impact: Improves installation speed and reduces the risk of misalignment, cutting commissioning time in new builds and retrofits. Application: Tight-space conduit runs and panel penetrations in industrial facilities.Feature: 1-1/4" trade size supports standard conduit inventories. Business impact: Improves part standardization, reduces procurement complexity, and shortens lead times for project delivery. Application: Wiring troughs, cable trays, and equipment racks using common IMC/ridged conduit components.Feature: NEC/CEC compliance and ordinary/non-hazardous area classification. Business impact: Provides regulatory assurance and simplifies audits for non-hazardous facilities. Application: Commercial/industrial wiring in non-hazardous environments.Feature: UL certification for Rigid-IMC fittings reinforces safety and reliability. Business impact: Validates third-party safety, enabling faster approvals and fewer escalations in projects. Application: Enterprise-level electrical installations and maintenance programs.Feature: Malleable iron construction with compact dimensions (3.63 in L/H/W) and 1.18 lb weight. Business impact: Lightweight yet durable, enabling easier handling and space optimization in crowded panels. Application: Retrofit and new-build conduit runs where space is at a premium.
