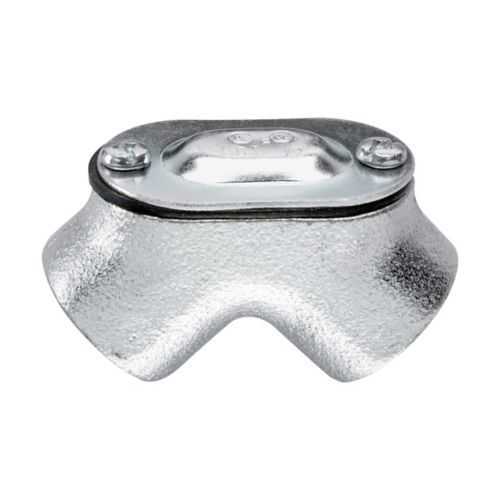

Eaton 824 Rigid/IMC Pull Elbow - Female to Female
Part Number: 824
Quick Summary
Eaton Crouse-Hinds 824 rigid/IMC pull elbow enables quick, reliable conduit transitions in electrical installations. Designers frequently battle tight bend radii and maintaining enclosure integrity during field installs. It complies with NEC/CEC standards and is certified for Canadian use, with area classification for Ordinary/Non-Hazardous Locations. For projects requiring durable malleable-iron fittings, this pull elbow reduces install time and provides compliant, long-lasting conduit routing for industrial facilities.
Product Information
Extended Description
824 Eaton Crouse-Hinds: Eaton Crouse-Hinds series pull elbow, Rigid/IMC, Gender end 1: female, Gender end 2: female, Malleable iron, 90°, 1-1/2", Rigid to rigid (female to female)
Product Name
Eaton Crouse-Hinds series rigid/IMC pull elbow
Catalog Number
824
Product Length/Depth
4.06 in
Product Height
4.06 in
Product Width
4.06 in
Product Weight
1.6 lb
UPC
784564108241
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Conduit type
Rigid/IMC
Type
Rigid to rigid (female to female)
Gender end 1
Female
Gender end 2
Female
Shape
90° angle
Trade size
1-1/2"
Material
Malleable iron
Crouse-Hinds series Malleable and Zinc Pull Elbows and Tees - Rigid-IMC catalog page
Pull Elbows and Tees - Rigid-IMC Canadian certification (810, 820 and 850 series)
Pull Elbows and Tees - Rigid-IMC Canadian certification (810, 820 and 850 series)
Eaton Specification Sheet - 824
Feature: Rigid/IMC compatibility with a 90 degree bend and 1-1/2 in trade size. Business Impact: This combination delivers a factory made elbow that reduces field fabrication, minimizes misalignment, and shortens commissioning time. Application: Ideal for panel to conduit transitions in control cabinets and industrial enclosures where space is tight and routing must be precise. Feature: Female to Female ends for easy assembly in restricted spaces. Business Impact: Eliminates the need for adapters in tight panels, speeds up installation, and lowers inventory complexity by using a single standardized fitting. Application: Great for control panels and motor starters where both conduit ends are female. Feature: Malleable iron body provides robust protection. Business Impact: High impact resistance reduces maintenance calls and extends service life in busy facilities. Application: Suitable for non-hazardous locations in warehouses and manufacturing lines. Feature: NEC/CEC compliant with ordinary location ratings. Business Impact: Supports safe operation and faster audits across North American facilities. Application: Ideal for cross border production lines and mixed site deployments. Feature: Canadian certification and cross border applicability. Business Impact: Reduces procurement complexity and standardizes conduit fittings across sites. Application: Perfect for multinational plants requiring consistent fittings in the field. Enhancing installation speed with standard hardware and reliable performance helps minimize downtime and maximize productivity.
