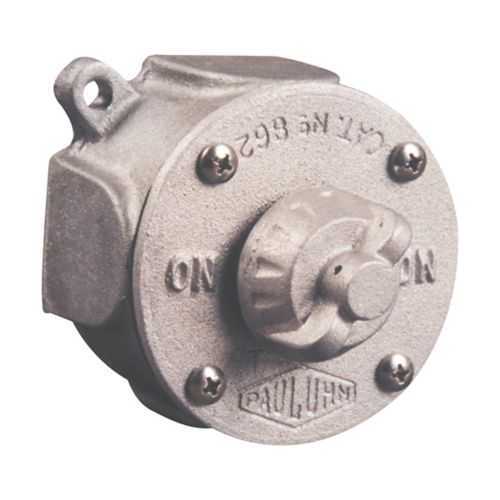

Eaton 862B-C1 Rotary Switch - IP66 Rating for Panels
Part Number: 862B-C1
Manufacturer
Eaton Crouse-Hinds
Part number
862B-C1
Quick Summary
The 862B-C1 rotary switch from Eaton is a rugged control device used to safely select circuit paths in electrical panels. In harsh environments, moisture and dust ingress threaten reliability—IP66 protection helps prevent failure and downtime. This model is rated for Ordinary/Non-Hazardous Locations and features brass construction and through-feed entry for durable service in demanding settings. As part of the Pauluhn family, it integrates with surface-mounted panels and standard 1/2-inch fittings, delivering dependable operation while reducing maintenance costs. Choosing this switch supports asset longevity, faster commissioning, and lower field-rework in coastal facilities, chemical plants, and offshore equipment where reliability matters most.
Product Information
Extended Description
862B-C1 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Pauluhn 862/1869/1871 rotary switch, 20A, 1 HP at 120 Vac/2 HP at 240 Vac, Brass, Surface mount, Round, Through feed entry, 1/2", 120/240 Vac
Product Name
Eaton Crouse-Hinds series Pauluhn 862/1869/1871 rotary switch
Catalog Number
862B-C1
Product Length/Depth
3.38 in
Product Height
3.88 in
Product Width
2.94 in
Product Weight
2.3 lb
UPC
662276387683
Area classification
Ordinary/Non-Hazardous Locations
Ingress protection (IP) ratings
IP66
Material
Brass
Mounting style
Surface
Shape
Round
Trade size
1/2"
Voltage rating
120/240 Vac
Amperage Rating
20A
Horsepower
1 hp at 120 V, 2 hp at 240 V
Special features
Through feed entry
Pauluhn Marine Rotary Switch catalog page
IF LBL 1511 - 862/1869/1871 Rotary Switch Boxes
Eaton Specification Sheet - 862B-C1
Feature: Through-feed entry design provides a sealed wiring path. Business Impact: Maintains IP66 integrity while simplifying field wiring. Application: Marine control panels and rugged industrial equipment benefit from easier, reliable installations. Feature: Brass construction offers corrosion resistance. Business Impact: Extends service life in challenging environments and reduces maintenance costs. Application: Doors, enclosures, and outdoor equipment exposed to moisture. Feature: Surface mounting with a round 1/2" trade size footprint. Business Impact: Compact panel footprint enhances fit in space-constrained control cabinets, accelerating deployment. Application: Small to mid-size machines and process panels needing quick retrofits. Feature: Electrical ratings of 20A and 120/240 VAC with 1 HP @120V / 2 HP @240V. Business Impact: Supports common motor loads and control circuits without oversizing components. Application: Motor control and circuit isolation in standard industrial processes. Feature: IP66 ingress protection and Ordinary/Non-Hazardous Location suitability. Business Impact: Regulatory compliance and predictable performance in non-hazardous environments. Application: Offshore, coastal, and general industrial facilities. Feature: Pauluhn family compatibility and documentation availability. Business Impact: Streamlined sourcing, easier integration, and faster qualification of installation practices. Application: Panel builders and electrical integrators optimizing spec-to-install workflows.
Get a Quick Quote for a Eaton Crouse-Hinds 862B-C1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds 862B-C1?
Enquire Now
FAQs
Install the 862B-C1 on a panel using its surface-mount base and through-feed entry. Wire for 120/240 VAC within the 20 A rating, using proper gasket seating to maintain IP66 sealing. Refer to the installation sheet LBL 1511 for step-by-step guidance and ensure panel cutouts accommodate the 1/2 inch trade size. After wiring, verify continuity across positions to ensure reliable switching.
The 862B-C1 is rated for 20 A with 1 HP at 120 VAC and 2 HP at 240 VAC. It uses a 1/2 inch trade size and supports 120/240 VAC operation. Manufactured in brass, the unit is designed for surface mounting in non-hazardous environments and aligns with standard Pauluhn rotary switch specifications.
Yes. The 862B-C1 carries IP66 ingress protection, providing robust dust-tight and water-tight performance. It is specified for Ordinary/Non-Hazardous Locations, making it suitable for marine, coastal, and industrial installations where exposure to dust and moisture is a concern.
The switch is a surface-mounted, round brass device with a 1/2 inch trade size. Its dimensions are approximately 3.38 in length, 3.88 in height, and 2.94 in width, with a approximate weight of 2.3 lb. This compact footprint is designed for easy integration into standard control panels.
Documentation includes the Pauluhn Marine Rotary Switch catalog page, installation sheet IF LBL 1511 for 862/1869/1871 rotary switch boxes, and the Eaton Specification Sheet for 862B-C1. These assets provide product details, wiring guidance, and installation best practices to support quick qualification and commissioning.
