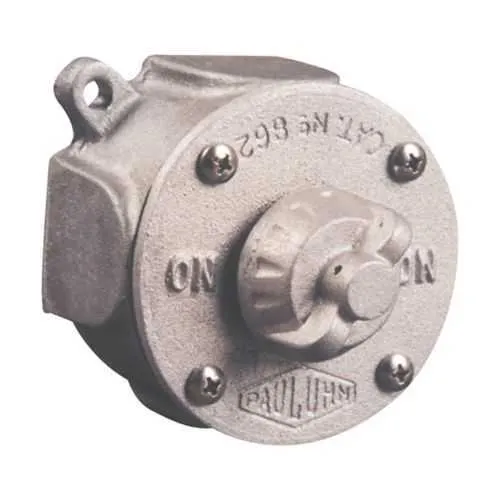

Eaton Crouse-Hinds 862BF Rotary Switch - IP66
Part Number: 862BF
Quick Summary
Eaton Crouse-Hinds 862BF Rotary Switch controls industrial circuits with reliable, manual switching for compact control panels. Engineers often face downtime when equipment sits in dusty, wet, or corrosive environments, demanding rugged, sealed components. This unit delivers IP66 ingress protection and is suited for Ordinary/Non-Hazardous Locations, featuring brass construction and flush mounting for durability in tight panel spaces. The 120/240 VAC rating supports a broad motor load, with 1 hp at 120 V and 2 hp at 240 V, helping optimize motor starts and energy use. By stocking Pauluhn-compatible changeouts, it streamlines maintenance and reduces spare-part variety for panel builders and technicians. Its compact 4.19 in depth and height with a 3 in width further simplify installation in new builds and retrofits.
Product Information
Extended Description
862BF Eaton Crouse-Hinds: Eaton Crouse-Hinds series Pauluhn 862/1869/1871 rotary switch, 20A, 1 HP at 120 Vac/2 HP at 240 Vac, Brass, Flush mount, Round, 120/240 Vac
Product Name
Eaton Crouse-Hinds series Pauluhn 862/1869/1871 rotary switch
Catalog Number
862BF
Product Length/Depth
4.19 in
Product Height
4.19 in
Product Width
3 in
Product Weight
3 lb
UPC
662276387706
Area classification
Ordinary/Non-Hazardous Locations
Ingress protection (IP) ratings
IP66
Material
Brass
Mounting style
Flush
Shape
Round
Voltage rating
120/240 Vac
Amperage Rating
20A
Horsepower
1 hp at 120 V, 2 hp at 240 V
Pauluhn Marine Rotary Switch catalog page
IF LBL 1511 - 862/1869/1871 Rotary Switch Boxes
Eaton Specification Sheet - 862BF
Feature: IP66 ingress protection and brass enclosure → Business Impact: Prolongs equipment life and reduces maintenance downtime in dusty, washdown, or outdoor environments; Application: Marine and industrial enclosures where moisture ingress is a risk. Feature: 20A current rating with 1 hp at 120 V / 2 hp at 240 V → Business Impact: Supports multiple motor loads with safe, efficient switching; Application: Control of pumps, conveyors, and fans in mid-range industrial equipment. Feature: Flush mount, round brass design → Business Impact: Eliminates protruding edges, improves sealing, and simplifies panel aesthetics; Application: Panel builder installations and retrofit projects seeking compact fit. Feature: Pauluhn 862/1869/1871 family compatibility → Business Impact: Reduces stocking complexity and speeds maintenance with familiar parts; Application: Service centers and field technicians replacing legacy switches. Feature: Rated for ordinary/non-hazardous locations → Business Impact: Clear compliance path for standard facilities, lowering lifecycle risk; Application: General industrial, commercial, and institutional control panels. Feature: Documentation and data access → Business Impact: Quick reference for installation and spec confirmation with downloadable catalog pages and datasheets; Application: Engineering approvals and procurement workflows for faster project onboarding.
Get a Quick Quote for a Eaton Crouse-Hinds 862BF
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds 862BF?
Enquire Now
FAQs
Install the 862BF in a compatible Pauluhn enclosure with a flush-mount cutout. Confirm panel dimensions (4.19 in depth/height, 3 in width) and ensure the location is rated Ordinary/Non-Hazardous with IP66 protection. Use the LBL1511 installation sheet for wiring guidance and torque requirements, and refer to the 862BF datasheet for mounting hardware specs.
Yes. The 862BF is rated for 120/240 VAC. It provides 20 A current capacity, with 1 hp at 120 V and 2 hp at 240 V, enabling efficient motor control for typical panel applications and ensuring safe switching of common industrial loads.
The 862BF is designed for Ordinary/Non-Hazardous Locations and offers IP66 ingress protection. This makes it appropriate for clean to mildly harsh environments, including standard industrial panels and certain marine or outdoor applications where moisture and dust exposure are possible.
The 862BF carries IP66 ingress protection and is specified for Ordinary/Non-Hazardous Locations, aligning with common industrial compliance needs. For further regulatory validation beyond these, consult the official Eaton documentation and local electrical codes prior to deployment.
Reference the Pauluhn Rotary Switch catalog page for overview, the IF LBL 1511 installation sheet for wiring and mounting guidance, and the Eaton Specification Sheet for 862BF technical details. These PDFs are linked in the product downloads to support quick, accurate integration.
