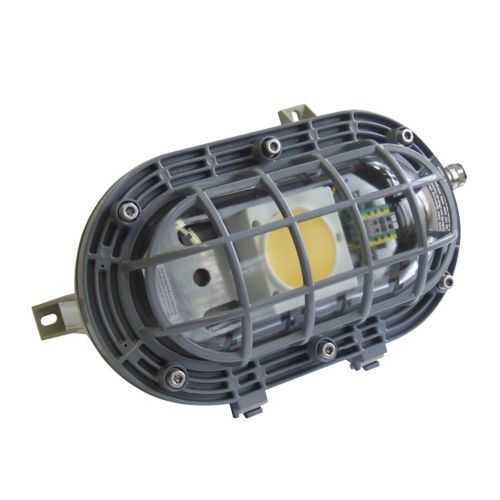

Eaton AB052510210301 AB05 LED light fixture - IP66 ATEX
Part Number: AB052510210301
Quick Summary
Eaton AB052510210301 AB05 LED light fixture is a rugged, high-output lighting solution for hazardous locations. It delivers reliable illumination in safety-critical industrial spaces while minimizing downtime and maintenance. In challenging environments, inconsistent lighting drives risk and cost; this luminaire mitigates those issues with certified protection, robust construction, and easy integration into existing safety systems. The unit carries IECEx/ATEX certifications for Zone 1 and Zone 2 as well as Zone 21 and Zone 22, plus IP66 ingress protection, ensuring safe operation in dust and water exposure. With 2000 lumens at 22W, borosilicate glass, and a durable epoxy finish, it supports energy efficiency and lifecycle cost reduction for compliant, productive operations.
Product Information
Extended Description
AB052510210301 Eaton Crouse-Hinds: Eaton Crouse-Hinds series CEAG AB05 LED light fixture, Borosilicate glass cover, Light alloy, RAL 7032 epoxy paint finish, 50-60 Hz, 2000 lumens, 1 x M25 metal thread, 230 Vac, 22W
Product Name
Eaton's Crouse-Hinds series CEAG AB05 LED light fixture
Catalog Number
AB052510210301
Product Length/Depth
360 mm
Product Height
175 mm
Product Width
253 mm
Product Weight
7 kg
EAN
4250217403347
Area classification
Hazardous/Classified Locations
Standards type
IEC IECEx/ATEX
IECEx/ATEX hazardous rating
Zone 1 Zone 2 Zone 21 Zone 22
Ingress protection (IP) ratings
IP66
Lamp type
LED
Lumens
2000
Wattage
22W
Type
1 x M25 metal thread
Voltage rating
230 Vac
Frequency rating
50-60 Hz
Material
Light alloy
Finish
Epoxy paint
Finish color
RAL 7032
Lens material
Borosilicate glass
Crouse-Hinds series CEAG AB05 LED catalog page
IECEx Certificate of Conformity - AB05 LED
IECEx Certificate of Conformity - AB05 LED
IECEx Certificate of Conformity - AB05 LED
Operating instructions - AB05 LED
Crouse-Hinds series CEAG AB05 LED photometric files
Feature: IP66-rated, rugged housing with borosilicate glass lens and light alloy construction. Business Impact: Provides long-term sealing against dust and water ingress, reducing maintenance intervals and protecting critical electronics. Application: Ideal for washdown areas and harsh industrial spaces where reliability is non-negotiable. Feature: LED technology delivering 2000 lumens at 22W with 230 VAC input and 50-60 Hz operation. Business Impact: Delivers high-efficiency illumination with lower energy consumption and cooler operation, cutting energy costs and extending fixture life. Application: Suitable for continuous operation in chemical plants, refineries, and mining facilities. Feature: 1 x M25 metal thread mounting and a compact 360 mm length with 253 mm width and 175 mm height. Business Impact: Simplifies installation and retrofit projects, enabling fast mounting in constrained environments and reducing labor time. Application: Quick upgrades in existing hazardous-area luminaires and new-builds alike. Feature: IECEx/ATEX hazardous ratings for Zone 1, Zone 2, Zone 21, and Zone 22 plus IP66. Business Impact: Ensures regulatory compliance, reduces risk of non-conformance, and accelerates procurement with clearly documented approvals. Application: Compliance-driven deployments in oil & gas, chemical processing, and mining. Feature: Borosilicate lens, epoxy finish in RAL 7032, and glass-to-metal sealing for durability. Business Impact: Improves resistance to impact, chemicals, and environmental stress, lowering replacement frequency. Application: Harsh production lines and outdoor enclosures where reliability is essential. Feature: Comprehensive documentation including catalogs, operating instructions, and photometric files. Business Impact: Expedited design approvals, easier QA sign-off, and smoother installation planning. Application: Project design and commissioning in regulated facilities requiring robust traceability.
Get a Quick Quote for a Eaton Crouse-Hinds AB052510210301
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds AB052510210301?
Enquire Now
FAQs
AB052510210301 uses a 1 x M25 metal thread and measures 360 mm in length with 253 mm width and 175 mm height, enabling straightforward mounting in typical hazardous-area enclosures. Its IP66 rating protects against dust and water ingress, while the rugged housing and borosilicate lens support quick retrofits without extensive enclosure modifications.
The fixture provides 2000 lumens at 22W with 230 VAC input and a 50-60 Hz frequency, delivering bright, consistent illumination while minimizing power draw. This can reduce energy costs by replacing higher-wattage legacy luminaires, lowering maintenance cycles, and extending service life in continuous-operation environments.
Yes. The AB05 LED luminaire is IECEx/ATEX certified for Zones 1, 2, 21, and 22, and carries IP66 protection. This combination supports safe operation in both gas and dust hazardous areas, simplifying procurement and compliance across process facilities.
A full suite of documentation accompanies AB052510210301, including a Crouse-Hinds AB05 LED catalog page, IECEx certificates, EC-type and EC-DOC documents, operating instructions, and photometric files. This enables easier regulatory approvals, QA sign-off, and accurate lighting design in project plans.
With LED efficiency, robust IP66 sealing, and IECEx/ATEX compliance, the AB05 reduces energy consumption and downtime while extending service intervals. In chemical plants, where outages are costly, this translates to lower lifecycle costs and faster maintenance cycles without compromising safety.
