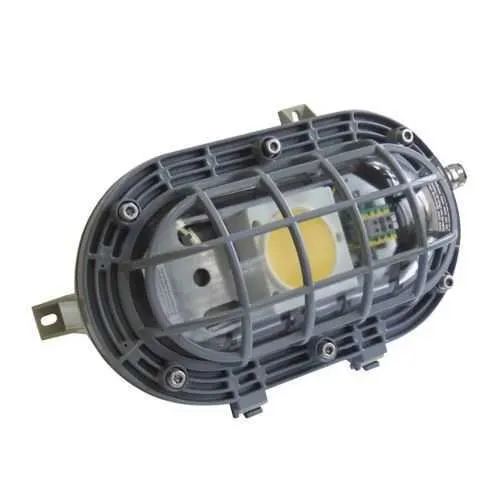

Eaton AB052512210301 LED light fixture - IP66 & IECEx/ATEX
Part Number: AB052512210301
Quick Summary
AB052512210301 LED light fixture delivers rugged, reliable illumination for hazardous industrial settings, enabling safe operation in chemical plants, refineries, and offshore facilities. The product is designed to reduce maintenance and energy costs while maintaining strict safety standards. Operators often struggle with luminaire reliability, limited compliance visibility, and difficult installations in classified locations—this fixture addresses those pain points with a robust enclosure and integrated wiring options. Key certifications underpin its suitability: IECEx/ATEX certification for Zone 1/2 and Zone 21/22, IP66 ingress protection, and CE marking for global compliance. By combining 22 W of power with 2000 lumens of output and a borosilicate glass lens, it balances efficiency with rugged performance, delivering long service life and lower total cost of ownership for industrial lighting programs.
Product Information
Extended Description
AB052512210301 Eaton Crouse-Hinds: Eaton Crouse-Hinds series CEAG AB05 LED light fixture, Borosilicate glass cover, Light alloy, RAL 7032 epoxy paint finish, 50-60 Hz, 2000 lumens, 2 x M25 metal thread, 1 x M25 Ex-d plug, 230 Vac, 22W
Product Name
Eaton's Crouse-Hinds series CEAG AB05 LED light fixture
Catalog Number
AB052512210301
Product Length/Depth
360 mm
Product Height
175 mm
Product Width
253 mm
Product Weight
7 kg
EAN
4250217403385
Area classification
Hazardous/Classified Locations
Standards type
IECEx/ATEX IEC
IECEx/ATEX hazardous rating
Zone 1 Zone 2 Zone 21 Zone 22
Ingress protection (IP) ratings
IP66
Lamp type
LED
Lumens
2000
Wattage
22W
Type
2 x M25 metal thread, 1 x M25 Ex-d plug
Voltage rating
230 Vac
Frequency rating
50-60 Hz
Material
Light alloy
Finish
Epoxy paint
Finish color
RAL 7032
Lens material
Borosilicate glass
Crouse-Hinds series CEAG AB05 LED catalog page
EC Declaration of Conformity - AB05 LED
EC Declaration of Conformity - AB05 LED
EC Declaration of Conformity - AB05 LED
Operating instructions - AB05 LED
Crouse-Hinds series CEAG AB05 LED photometric files
The IP66-rated enclosure provides exceptional protection against dust and powerful water jets, dramatically reducing the risk of ingress in harsh environments and lowering unplanned maintenance costs in outdoor or wash-down areas. This translates to higher up-time for critical processes in chemical plants, oil & gas facilities, and mining sites, while maintaining compliance with hazardous locations requirements. The LED technology delivers 2000 lumens at only 22 watts, offering tangible energy savings and a lower heat load that extends luminaire life, improving total cost of ownership in continuous-operation applications across plants and refineries. The luminaire features 230 VAC supply and a 50–60 Hz frequency rating with 2 x M25 metal thread connections and a 1 x M25 Ex-d plug, simplifying installation, routing, and compliance in Zone 1/2 and Zone 21/22 networks. Its borosilicate glass lens, light alloy housing, and epoxy finish in RAL 7032 provide chemical resistance and long-term color stability, reducing maintenance cycles and repainting needs in aggressive environments. With dimensions of 360 mm length, 253 mm width, and 175 mm height and a weight of 7 kg, the AB05 LED fixture integrates smoothly into existing layouts, supports retrofit upgrades, and minimizes structural adjustments during installations. Certifications and compliance, including IECEx/ATEX and IP66, ensure streamlined procurement across global operations and simplify ongoing regulatory alignment for hazardous-location lighting programs.
Get a Quick Quote for a Eaton Crouse-Hinds AB052512210301
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds AB052512210301?
Enquire Now
FAQs
This model offers 2 x M25 metal thread entries and 1 x M25 Ex-d plug, designed for safe, compliant wiring in Zone 1/ Zone 2 environments. The Ex-d plug supports rapid, secure connections while preserving intrinsic safety, minimizing wiring mistakes and downtime during commissioning.
The fixture operates at 230 VAC with a 50–60 Hz input, drawing 22 W to produce 2000 lumens. Its LED technology delivers steady light with low heat output, improving LED life and reducing cooling requirements in harsh environments.
Yes. It holds IECEx/ATEX certification for Zone 1, Zone 2, Zone 21, and Zone 22, and an IP66 rating for strong ingress protection, making it suitable for hazardous/classified locations in a wide range of industrial settings.
Dimensions are 360 mm in length, 253 mm in width, and 175 mm in height with a weight of 7 kg. The light alloy housing and borosilicate lens are designed for retrofits and new installations, with epoxy finish in RAL 7032 aiding durability in aggressive environments.
Expected gains include reduced energy consumption (22 W vs higher wattage equivalents), longer service life from robust materials, and lower maintenance cycles due to IP66 protection and sealed lens. These factors translate into lower operating costs and improved uptime for hazardous-location lighting programs.
