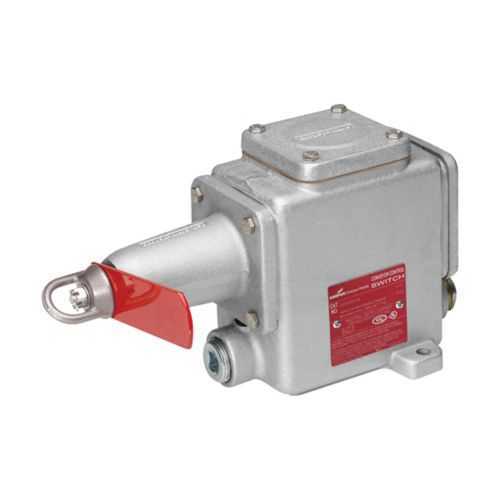

Eaton Crouse-Hinds AFU0333 06 S752 Conveyor Switch - IP66

Part Number: AFU0333 06 S752
AFU0333 06 S752
Manufacturer
Eaton Crouse-Hinds
Part number
AFU0333 06 S752
Category

Quick Summary

Eaton Crouse-Hinds AFU0333 06 S752 conveyor belt control switch provides hazardous-location belt control for rugged mining and processing lines. Maintenance teams often face unreliable operation in harsh environments and frequent line shutdowns. The unit delivers IP66 ingress protection and NEC/CEC compliance, with hazardous-location ratings including Class II, Division 1 and Division 2, Class III, and a rugged NEMA 9 4 3 enclosure. Its Corro-free epoxy powder coating, Feraloy iron alloy housing, and a 50 lb total operating force support dependable actuation with minimal maintenance. With three hubs and a 1 inch trade-size footprint, installation is straightforward and wiring is simplified, enabling safer, faster upgrades within existing safety systems.

Product Information

Extended Description

AFU0333 06 S752 Eaton Crouse-Hinds: Eaton Crouse-Hinds series AFU conveyor belt control switch, 15A, Two normally open/two normally closed, Feraloy iron, Corro-free epoxy powder coat, 50 lb total oper force, Single end right, 25 lb without switch, (3) 1" hubs
Product Name
Eaton Crouse-Hinds series AFU conveyor belt control switch
Catalog Number
AFU0333 06 S752
Product Length/Depth
12.92 in
Product Height
5.68 in
Product Width
9.5 in
Product Weight
22.7 lb
UPC
782274708065
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class II, Division 1 Class II, Division 2 Class III
NEMA Rating
9 4 3
Ingress protection (IP) ratings
IP66
Type
Single end right
Weight without switch
25 lb
Total operating force required
50 lb
Contact arrangement
Two normally open, two normally closed
Amperage Rating
15A
Voltage rating
600 Vac
Number of hubs
3
Material
Feraloy iron alloy
Trade size
1"
Special features
Corro-free epoxy powder coat finish
AFU and AFUX Series Explosionproof Conveyor Belt Control Switches catalog page AFU and AFUX Explosionproof Conveyor Belt Control Switches Canadian certification AFU and AFUX Explosionproof Conveyor Belt Control Switches Canadian certification IF 493 - AFU Safety Switch IF 493 - AFU Safety Switch IF 493 - AFU Safety Switch Eaton Specification Sheet - AFU0333 06 S752
Feature: Contact arrangement and electrical rating. Business Impact: The switch uses two normally open and two normally closed contacts rated at 15A and 600 VAC, delivering reliable signal and power switching for belt control lines, reducing misfeeds and false trips. Application: ideal for conveyor lines in hazardous environments where both control and monitoring circuits must be isolated and fail-safe. Feature: Enclosure and materials. Business Impact: Feraloy iron alloy housing with Corro-free epoxy powder coat resists corrosion and mechanical wear in aggressive facilities. Application: chemical processing, mining, oil and gas, and other harsh industrial settings. Feature: Mechanical design. Business Impact: Total operating force of 50 lb ensures deliberate actuation even in high-vibration settings, reducing unintended switching and extending component life. Application: installation in maintenance-heavy lines and during safety-interlock upgrades. Feature: Certifications and protection. Business Impact: IP66, NEC/CEC compliance, and hazardous-location ratings (Class II Div 1/2; Class III) with a NEMA 9 4 3 rating deliver regulatory alignment and long service life. Application: projects requiring strict national and international codes. Feature: Installation footprint. Business Impact: Three hubs and a 1" trade size simplify field wiring and mounting, enabling faster commissioning and easier retrofits. Application: upgrading aging conveyors or integrating with existing safety networks in new builds.

Get a Quick Quote for a Eaton Crouse-Hinds AFU0333 06 S752

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton Crouse-Hinds AFU0333 06 S752? Enquire Now

FAQs

When installing AFU0333 06 S752, plan for a three-hub configuration with a 1" trade size and single end right orientation. Ensure the enclosure is mounted in a location that maintains IP66 protection, and confirm the site meets Class II, Division 1/2 and Class III hazard classifications. Use proper wiring to maintain NEC/CEC compliance and verify that the Corro-free epoxy coating remains intact after mounting in harsh environments.
Yes. The AFU0333 06 S752 is designed with three hubs and a 1" trade size, facilitating straightforward field wiring and wiring harness compatibility. This enables easier retrofits and faster installation on existing conveyor lines while preserving hazardous-location protection and actuation reliability.
The switch combines a 15A@600 VAC rating with two normally open and two normally closed contacts, a robust Feraloy iron alloy housing, and a Corro-free epoxy powder coat. Coupled with IP66 protection and NEC/CEC compliance for Class II/III hazardous locations, it delivers reliable control and safe isolation essential for belt conveyors in mining, chemical processing, and oil/gas facilities.
This model carries NEC/CEC standards, hazardous-location ratings (Class II, Division 1 and 2; Class III), IP66 ingress protection, and a NEMA 9 4 3 enclosure. These certifications confirm suitability for hazardous environments, ensure regulatory compliance in safety-critical installations, and support risk mitigation during audits and plant inspections.
Expect reduced downtime thanks to rugged corrosion-resistant construction, a long service life in harsh locations, and fewer rework events due to reliable actuation (50 lb operating force). The three-hub, 1" footprint simplifies upgrades and wiring, lowering installation time and labor costs while maintaining NEC/CEC compliance for safer, more productive belt conveyors.
