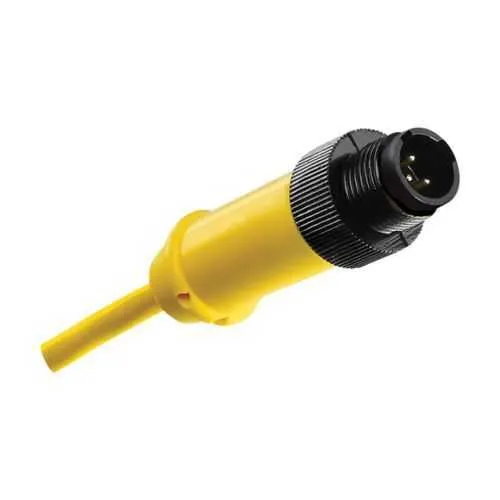

Eaton LynxPOWER AM4B2MG060F Cordset - IP68
Part Number: AM4B2MG060F
Quick Summary
AM4B2MG060F LynxPOWER Micro-Mini cordset provides rugged, reliable connectivity for industrial automation and control panels. In harsh environments, moisture, dust, and space constraints can undermine reliability, making a compact, durable cordset essential. This product carries IP68 ingress protection and IEC NEC/CEC compatibility, plus NEMA 6P ratings, signaling robust performance in ordinary locations as well as demanding washdown areas. By delivering a 6 ft cable with #22 AWG conductors and a four-pole, passive plug, it supports fast installation and long-term maintenance savings. Using this solution helps engineers meet compliance while reducing downtime and wiring errors, enabling more predictable machine readiness and smoother panel integration across diverse automation applications.
Product Information
Extended Description
AM4B2MG060F Eaton Crouse-Hinds: Eaton Crouse-Hinds series LynxPOWER Micro-Mini cordset, 4A, #22 AWG, Male, straight plug, external thread, pigtail, Passive, Dual key, Zinc, Four-pole, AC, 300 Vac, 6 ft cable length
Product Name
Eaton Crouse-Hinds series LynxPOWER Micro-Mini cordset
Catalog Number
AM4B2MG060F
Product Length/Depth
2.44 in
Product Height
0.64 in
Product Width
0.64 in
Product Weight
1 lb
UPC
662275359346
Area classification
Ordinary/Non-Hazardous Locations
Standards type
IEC NEC/CEC
NEMA Rating
6P 1 13 4 3
Ingress protection (IP) ratings
IP68
Connector type
Passive
Type
AC
Number Of Poles
Four-pole
Configuration
Male, straight plug, external thread, pigtail
Gender
Male
Cable/wire size
#22 AWG
Cable length
6 ft
Key type
Dual key
Amperage Rating
4 A
Voltage rating
300 Vac
Material
Zinc
LynxPower industrial connectivity solutions
Mini-Line and Micro-Mini Cordsets, Receptacles and Multi-port Boxes catalog page
Eaton Specification Sheet - AM4B2MG060F
Feature → Business Impact → Application: The AM4B2MG060F uses a four-pole, passive connector with a male straight plug, external thread, pigtail, and #22 AWG conductors for a compact 6 ft cordset. This configuration reduces wiring time, minimizes mis-mates, and simplifies field termination in tight control panels and motor-start circuits. Application: ideal for automated equipment and robotic cells where reliable, quick-connect control wiring is essential. Feature → Business Impact → Application: Its zinc housing delivers rugged durability and corrosion resistance, supporting long service life in washdown and dusty environments. This translates to higher uptime, lower maintenance, and lower replacement costs. Application: food & beverage, chemical processing, and general industrial environments requiring robust protection. Feature → Business Impact → Application: With a 300 Vac rating and 4 A amperage, this cordset safely powers AC control circuits and small actuators, reducing the risk of overloading and electrical faults. Application: panel coms, sensors, and small motors in automated lines. Feature → Business Impact → Application: Dual-key configuration and external thread ensure secure mating and vandal-resistant connections, minimizing accidental disconnections. Application: safety-critical machine interfaces and multi-point control systems in manufacturing cells. Feature → Business Impact → Application: Compliance with IEC/NEC standards and NEMA 6P ratings provides regulatory confidence and cross-border applicability, easing design-in for global projects. Application: European and North American machines requiring certified connectivity components.
Get a Quick Quote for a Eaton Crouse-Hinds AM4B2MG060F
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds AM4B2MG060F?
Enquire Now
FAQs
The AM4B2MG060F is designed for industrial automation and control panels where compact, reliable AC wiring is required. Its four-pole, passive configuration with a male straight plug and external thread simplifies panel wiring, while the 6 ft length accommodates most machine controls. It excels in washdown or dusty environments thanks to IP68 protection and zinc construction, enabling quick, secure connections in robotic cells and compact machinery.
IP68 indicates dust-tight integrity and water ingress protection under submersion conditions, which translates to superior durability in harsh environments. In ordinary locations, this means reduced risk from washdowns, humidity, and wash-down cleaning cycles, extending service life and lowering maintenance frequency for control cables and connectors used on automated equipment.
Yes. The cordset is designed as part of the LynxPOWER Micro-Mini family with a male, straight plug, external thread, and pigtail configuration, enabling straightforward mating with compatible LynxPOWER receptacles and passive connectors. Its standardized #22 AWG conductors and four-pole layout support reliable integration into motor drives, sensors, and control panels using LynxPOWER-compatible accessories.
Key specs include a 4 A amperage rating and 300 Vac voltage rating, with #22 AWG conductors and a 6 ft cable length. These values support typical small-signal control circuits and low-power actuators in AC systems, while the IP68 and zinc housing protect the conductors and terminations from environmental ingress, maintaining safe operation under demanding conditions.
The combination of IP68 protection, durable zinc housing, and a compact, easy-to-install design reduces maintenance downtime and field wiring errors. The dual-key mating and external-thread connection minimize disconnections, improving machine uptime and reducing service costs. Over time, fewer field faults and easier installation contribute to a favorable return on investment for automated equipment and control panels.
