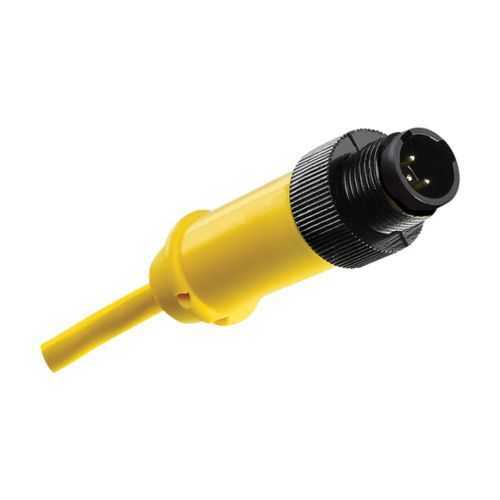

Eaton AM5B2MG060F LynxPOWER Micro-Mini Cordset - IP68
Part Number: AM5B2MG060F
Quick Summary
AM5B2MG060F is a LynxPOWER Micro-Mini cordset for reliable field connections in industrial automation equipment. Operators often struggle with moisture ingress, vibration, and wear from frequent unplugging in control panels, leading to unscheduled downtime. This cordset delivers IP68 sealing, NEMA ratings for 4 and 13, and NEC/CEC/IEC compliance, making it suitable for ordinary/non-hazardous locations. Its compact zinc housing, dual-key mating, and external-thread, pigtail configuration enable fast, secure installations. The 6 ft #22 AWG cable and 4 A at 300 VAC rating support dependable sensing and control circuits, reducing maintenance costs while improving safety and performance across automated systems.
Product Information
Extended Description
AM5B2MG060F Eaton Crouse-Hinds: Eaton Crouse-Hinds series LynxPOWER Micro-Mini cordset, 4A, #22 AWG, Male, straight plug, external thread, pigtail, Passive, Dual key, Zinc, Five-pole, AC, 300 Vac, 6 ft cable length
Product Name
Eaton Crouse-Hinds series LynxPOWER Micro-Mini cordset
Catalog Number
AM5B2MG060F
Product Length/Depth
2.44 in
Product Height
0.64 in
Product Width
0.64 in
Product Weight
1 lb
UPC
662275355478
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC IEC
NEMA Rating
1 6P 4 13 3
Ingress protection (IP) ratings
IP68
Connector type
Passive
Type
AC
Number Of Poles
Five-pole
Configuration
Male, straight plug, external thread, pigtail
Gender
Male
Cable/wire size
#22 AWG
Cable length
6 ft
Key type
Dual key
Amperage Rating
4 A
Voltage rating
300 Vac
Material
Zinc
LynxPower industrial connectivity solutions
Mini-Line and Micro-Mini Cordsets, Receptacles and Multi-port Boxes catalog page
Eaton Specification Sheet - AM5B2MG060F
Feature: Five-pole AC configuration with a male straight plug and external thread plus pigtail. Business Impact: Ensures robust, predictable mating with compatible LynxPOWER receptacles, reducing mis-wiring and installation time. Application: Panel wiring in automated equipment where reliable multi-conductor connections are required. Feature: #22 AWG conductors on a 6 ft cable. Business Impact: Enables flexible routing in compact enclosures and short-run field wiring, lowering cable clutter and installation time. Application: Control loops, sensors, and small actuators in machine gearboxes and control panels. Feature: IP68 ingress protection with NEMA ratings for 4 and 13. Business Impact: Provides superior moisture and dust resistance, minimizing maintenance and preventive repair costs. Application: Outdoor enclosures, damp workshops, and dust-prone facilities. Feature: Zinc housing with dual-key design and external thread. Business Impact: Increases durability, tamper-resistance, and mate-compatibility in high-vibration environments. Application: Harsh industrial environments and aerospace-grade manufacturing lines. Feature: 4 A at 300 VAC rating. Business Impact: Supports typical PLC I/O loads and small actuators with a compact form factor, reducing connector size and cost. Application: Industrial automation control panels and sensor networks.
Get a Quick Quote for a Eaton Crouse-Hinds AM5B2MG060F
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds AM5B2MG060F?
Enquire Now
FAQs
AM5B2MG060F offers a male straight plug with external threading and a pigtail, enabling direct panel or enclosure wiring. The 6 ft length accommodates typical control runs, while #22 AWG conductors provide a compact, easy-to-route solution. Dual-key design helps prevent mis-mating with compatible LynxPOWER receptacles, facilitating quick, secure field installations in industrial environments.
AM5B2MG060F uses five poles and #22 AWG conductors, rated for 4 A at 300 VAC. The 6 ft cable length supports short to mid-range connections in control panels and automation sensing circuits, delivering reliable power and signal transmission without the need for bulky cabling.
Yes. The cordset features IP68 ingress protection and is certified for Ordinary/Non-Hazardous Locations. This combination allows operation in damp or dusty environments typical of manufacturing floors and outdoor enclosures, reducing maintenance cycles and safeguarding critical connections.
AM5B2MG060F adheres to NEC/CEC/IEC standards and carries NEMA ratings including 4 and 13, with IP68 ingress protection. Its area classification is Ordinary/Non-Hazardous Locations, making it suitable for mainstream industrial applications while maintaining regulatory compliance.
The cordset delivers improved uptime through sealed, vibration-tolerant connections, reduced maintenance needs due to IP68 protection, and faster installation via dual-key, external-thread mating. These factors translate into lower total cost of ownership, safer operations, and more reliable control of PLCs, sensors, and actuators across automated lines.
