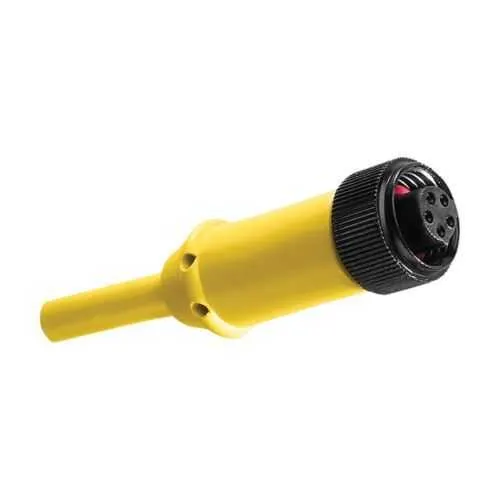

Eaton Crouse-Hinds AM5F2MG070M LynxPOWER Micro-Mini cordset - IP68
Part Number: AM5F2MG070M
Quick Summary
LynxPOWER Micro-Mini cordset delivers reliable, compact power and signal connections for industrial automation applications. Engineers often struggle with crowded panels, space constraints, and mis-mated connectors in harsh environments. This cordset meets IP68 ingress protection, NEMA 13 configurations, and IEC/NEC safety standards, ensuring durable operation in ordinary locations. With a 7 m cable, #22 AWG conductors, a 4 A rating, and a 300 Vac capacity, it reduces wiring complexity and maintenance costs while supporting robust industrial connectivity and passive connector solutions.
Product Information
Extended Description
AM5F2MG070M Eaton Crouse-Hinds: Eaton Crouse-Hinds series LynxPOWER Micro-Mini cordset, 4A, #22 AWG, Female, 90° plug, internal thread, pigtail, Passive, Dual key, Zinc, Five-pole, AC, 300 Vac, 7 m cable length
Product Name
Eaton Crouse-Hinds series LynxPOWER Micro-Mini cordset
Catalog Number
AM5F2MG070M
Product Length/Depth
1.7 in
Product Height
1.17 in
Product Width
0.64 in
Product Weight
0.56 lb
UPC
662275377258
Area classification
Ordinary/Non-Hazardous Locations
Standards type
IEC NEC/CEC
NEMA Rating
13 6P 4 1 3
Ingress protection (IP) ratings
IP68
Connector type
Passive
Type
AC
Number Of Poles
Five-pole
Configuration
Female, 90° plug, internal thread, pigtail
Gender
Female
Cable/wire size
#22 AWG
Cable length
7 m
Key type
Dual key
Amperage Rating
4 A
Voltage rating
300 Vac
Material
Zinc
LynxPower industrial connectivity solutions
Mini-Line and Micro-Mini Cordsets, Receptacles and Multi-port Boxes catalog page
Eaton Specification Sheet - AM5F2MG070M
Feature: Five-pole, female, 90° plug with internal thread and pigtail; Business Impact: Ensures precise, secure mating and reliable field connections, minimizing downtime; Application: Panel-mounted control circuits in automated equipment. Feature: 7 m cable length with #22 AWG conductors; Business Impact: Expands installation options while maintaining flexible routing in tight cabinets; Application: Sensor and actuator wiring in confined spaces. Feature: IP68 ingress protection and NEMA 13 compatibility; Business Impact: Delivers rugged performance in washdown and ordinary locations, reducing enclosure risk and maintenance needs; Application: Food & beverage, process, and general industrial environments. Feature: Dual-key configuration and zinc body; Business Impact: Prevents mis-wiring and mechanical mis-mates, improving safety and install speed; Application: High-reliability automation panels. Feature: Passive, 300 Vac rating with 4 A amperage; Business Impact: Simple, cost-effective connectivity for control circuits, with straightforward compliance and reduced part count; Application: Industrial power and signal distribution in control cabinets.
