Eaton Crouse-Hinds APQ1047 Motor Plug - NEMA 4
Part Number: APQ1047
Quick Summary
APQ1047 motor plug from Eaton Crouse-Hinds provides a rugged, 100A connection for four-wire motors in industrial installations. Manufacturers and maintenance teams struggle with enclosure protection and wiring reliability, and this design addresses those pain points with a NEMA 4-rated enclosure and copper-free aluminum construction. It meets NEC/CEC standards and is suitable for ordinary/non-hazardous locations, ensuring regulatory compliance without over-specifying for non-hazardous sites. With a compact footprint and straightforward wiring, APQ1047 supports efficient motor control panel installs and field applications, helping shorten commissioning times and reduce total cost of ownership.
Product Information
Extended Description
APQ1047 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Arktite APQ motor plug, 100A, 0.875-1.70", Four-wire, four-pole, 50-400 Hz, Style 1, Copper-free aluminum, 600 Vac/250 Vdc
Product Name

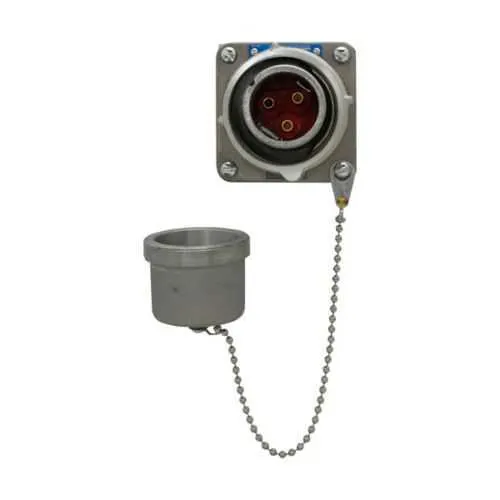

Eaton Crouse-Hinds series Arktite APQ motor plug
Catalog Number
APQ1047
Product Length/Depth
4.25 in
Product Height
4.25 in
Product Width
6.125 in
Product Weight
4.3 lb
UPC
782274053509
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4
Amperage Rating
100A
Grounding type
Style 1
Configuration
Four-wire, four-pole
Cable diameter
0.875-1.70"
Material
Copper-free aluminum
Voltage rating
600 Vac/250 Vdc
Frequency rating
50 to 400 Hz
Arktite APQ Circuit Breaking Motor Plugs catalog page
Arktite APQ Circuit Breaking Motor Plugs UL certification
Eaton Specification Sheet - APQ1047
APQ1047 is designed to deliver reliable power to four-wire, four-pole motors up to 100A. The copper-free aluminum housing reduces weight and corrosion potential, translating to easier handling during installation and longer service life in harsh environments. This plug is rated for 600 Vac and 250 Vdc with a 50 to 400 Hz frequency range, providing versatility across motor types and international installations. The Style 1 grounding and four-wire configuration simplify wiring schematics and improve fault isolation, lowering the risk of miswiring during maintenance. The unit's enclosure protection aligns with NEMA 4, enabling use in damp or dusty factory spaces without compromising performance. Cable diameter compatibility of 0.875 to 1.70 inches supports a wide range of motor leads, improving fitment in existing panels. In addition, its ordinary/non-hazardous location classification reduces compliance overhead for standard manufacturing environments. Overall, APQ1047 combines robust mechanicals with straightforward installation, enabling faster commissioning and lower lifecycle costs for motor drive systems.
