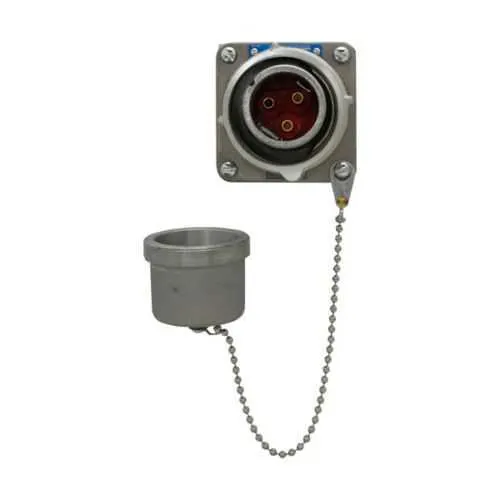

Eaton Crouse-Hinds APQ327 Motor Plug - NEMA 4, 600 Vac
Part Number: APQ327
Quick Summary
APQ327 motor plug provides a rugged electrical connection for Arktite motors in harsh industrial environments. Manufacturers often struggle with moisture ingress, dust, and downtime when plugging into damaged or non-specified connectors. This design delivers NEC/CEC compliance, a NEMA 4 rating, and UL certification to support safe operation in ordinary/non-hazardous locations. With copper-free aluminum housing and a broad 50–400 Hz range, it enables faster installation, reduced weight, and lower lifecycle costs while maintaining reliable performance across global motor applications. For engineers and procurement teams, the APQ327 connects with standard motor plug assemblies, delivering scalability and consistent reliability in demanding plants.
Product Information
Extended Description
APQ327 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Arktite APQ motor plug, 30A, 0.39-1.20", Two-wire, two-pole, 50-400 Hz, Style 1, Copper-free aluminum, 600 Vac/250 Vdc
Product Name
Eaton Crouse-Hinds series Arktite APQ motor plug
Catalog Number
APQ327
Product Length/Depth
3.38 in
Product Height
3.38 in
Product Width
3.63 in
Product Weight
2.4 lb
UPC
782274730011
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4
Amperage Rating
30A
Grounding type
Style 1
Configuration
Two-wire, two-pole
Cable diameter
0.39-1.20"
Material
Copper-free aluminum
Voltage rating
600 Vac/250 Vdc
Frequency rating
50 to 400 Hz
Arktite APQ Circuit Breaking Motor Plugs catalog page
Arktite APQ Circuit Breaking Motor Plugs UL certification
Eaton Specification Sheet - APQ327
Feature → Business Impact → Application: Amperage rating of 30A and two-wire, two-pole configuration supports common motor loads with predictable performance, reducing device mismatches and failures in automated lines. This translates to fewer unplanned outages and improved line efficiency in packaging, material handling, and process lines that rely on Arktite APQ plugs. Feature → Business Impact → Application: Copper-free aluminum construction lowers weight and improves corrosion resistance, easing现场 installation and maintenance in washdown or outdoor environments, while helping meet environmental sustainability goals. Feature → Business Impact → Application: Cable diameter range of 0.39-1.20 inches accommodates a wide variety of motor leads without multiple adapters, streamlining procurement and inventory across global facilities. Feature → Business Impact → Application: Voltage rating of 600 Vac / 250 Vdc and frequency rating of 50–400 Hz provide cross-region compatibility for multinational operations, reducing the need for regional variants and accelerating commissioning. Feature → Business Impact → Application: NEMA 4 enclosure protection and Ordinary/Non-Hazardous location suitability ensure reliable operation in dusty or light-wet environments, lowering ingress-related downtime in manufacturing floors and washdown zones. Feature → Business Impact → Application: Style 1 grounding and two-wire, two-pole configuration simplify wiring schemes, delivering faster installations and easier troubleshooting for maintenance teams in automation centers.
Get a Quick Quote for a Eaton Crouse-Hinds APQ327
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds APQ327?
Enquire Now
FAQs
APQ327 is designed for two-wire, two-pole motor connections with a Style 1 grounding scheme, rated at 600 Vac/250 Vdc, and housed in copper-free aluminum for NEMA 4 protection. It fits 0.39-1.20 inch cable diameters and is suitable for ordinary/non-hazardous locations, simplifying enclosure selection and minimizing integration risk in standard control panels.
The APQ327 is a 30A motor plug with a voltage rating of 600 Vac / 250 Vdc and a frequency range of 50 to 400 Hz, making it compatible with most industrial motors and regional power systems without additional adapters or conversions.
Yes. APQ327 features a NEMA 4 enclosure rating and is classified for Ordinary/Non-Hazardous locations, providing protection against dust and light exposure in washdown or outdoor-adjacent areas while maintaining reliable electrical performance.
APQ327 complies with NEC/CEC standards, is NEMA 4 rated for durable protection, and carries UL certification, aligning with common industry safety and performance requirements for industrial motor plugs.
Copper-free aluminum reduces weight, improves corrosion resistance, and simplifies handling during installation and replacement. This can lower installation time, extend service intervals in harsh environments, and reduce total cost of ownership without sacrificing durability.
