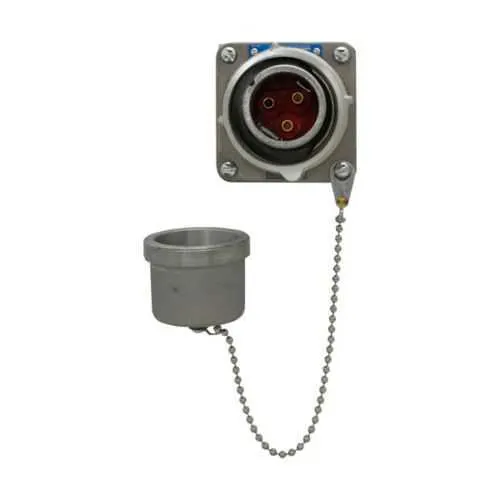

Eaton Crouse-Hinds APQ348 Motor Plug - NEMA 4, 30A
Part Number: APQ348
Quick Summary
APQ348 motor plug provides reliable electrical sealing for Arktite motor circuits in harsh industrial environments. Mismatched connectors, improper grounding, and inadequate enclosure protection can drive downtime and maintenance costs. This plug aligns with NEC/CEC standards, carries a NEMA 4 weatherproof rating, and is approved for Ordinary/Non-Hazardous Locations. Designed with copper-free aluminum for corrosion resistance and built to operate from 50 to 400 Hz, it supports seamless integration in high-demand OEM and maintenance settings. The combination of robust construction, straightforward installation, and UL-listed compatibility delivers tangible business value by improving uptime, reducing service calls, and extending motor plug life in rugged applications.
Product Information
Extended Description
APQ348 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Arktite APQ motor plug, 30A, 0.39-1.20", Three-wire, four-pole, 50-400 Hz, Style 2, Copper-free aluminum, 600 Vac/250 Vdc
Product Name
Eaton Crouse-Hinds series Arktite APQ motor plug
Catalog Number
APQ348
Product Length/Depth
3.38 in
Product Height
3.38 in
Product Width
3.63 in
Product Weight
1.38 lb
UPC
782274052908
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4
Amperage Rating
30A
Grounding type
Style 2
Configuration
Three-wire, four-pole
Cable diameter
0.39-1.20"
Material
Copper-free aluminum
Voltage rating
600 Vac/250 Vdc
Frequency rating
50 to 400 Hz
Arktite APQ Circuit Breaking Motor Plugs catalog page
Arktite APQ Circuit Breaking Motor Plugs UL certification
Eaton Specification Sheet - APQ348
Feature: 30A amperage rating and three-wire, four-pole configuration. Business Impact: Enables solid, code-compliant motor circuit connections with reduced wiring errors and improved control reliability. Application: Ideal for belt-driven fans, pumps, and conveyors in industrial facilities. Feature: Copper-free aluminum housing. Business Impact: Delivers corrosion resistance and lighter weight, lowering maintenance costs and easing field handling. Application: Suitable for damp or dusty environments around Arktite enclosures. Feature: Cable diameter range 0.39-1.20 inches. Business Impact: Flexible wiring acceptance reduces the need for adapters and simplifies retrofits. Application: Retrofit of legacy motor plugs in aging plants. Feature: 600 Vac / 250 Vdc voltage rating and 50-400 Hz frequency range. Business Impact: Supports broad motor drive compatibility and steady performance across varying supply conditions. Application: 3-phase motor drives and drives with mixed voltage systems. Feature: Style 2 grounding and NEMA 4 rating. Business Impact: Enhances safety and weatherproofing, lowering risk of electrical faults and environmental ingress. Application: Outdoor or wash-down areas with routine cleaning. Feature: Size and weight (3.38 in length, 3.63 in width, 3.38 in height, 1.38 lb). Business Impact: Compact footprint and manageable weight improve installation efficiency and field serviceability. Application: Enclosures with tight mounting clearances in control panels and junction boxes.
Get a Quick Quote for a Eaton Crouse-Hinds APQ348
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds APQ348?
Enquire Now
FAQs
For proper installation, verify cable diameter falls within 0.39-1.20 inches and align the plug with the enclosure opening. Ensure Style 2 grounding is secured and that mounts are tight to prevent micro-movements. Use appropriate wiring torque and follow NEC/CEC guidelines. This approach minimizes contact resistance and ensures reliable protection against ingress in Arktite systems.
APQ348 is rated for 30A, with a voltage rating of 600 Vac / 250 Vdc and a frequency range of 50 to 400 Hz. It is a three-wire, four-pole configuration designed for rugged motor control circuits. The copper-free aluminum housing supports durable field service, while the cable diameter range accommodates common field wiring sizes used in industrial drives.
APQ348 is specified for Ordinary/Non-Hazardous Locations and carries NEC/CEC standards with NEMA 4 weatherproofing. It is not intended for Class I, Division 1 or other hazardous-location environments. For such applications, consult Eaton’s catalog for certified alternatives or protective enclosures that meet specific hazard classifications.
APQ348 aligns with NEC/CEC standards and has a NEMA 4 rating for weatherproofing in ordinary locations. UL certification references are available for verification, and Eaton provides an official specification sheet confirming compliance. This combination supports safe operation in controlled industrial settings and simplifies procurement for compliance-driven projects.
The APQ348 measures 3.38 inches in length and height, 3.63 inches in width, and weighs 1.38 pounds. This compact footprint supports easy mounting in tight control panels and on equipment surfaces, reducing installation time and minimizing space requirements in crowded electrical rooms.
