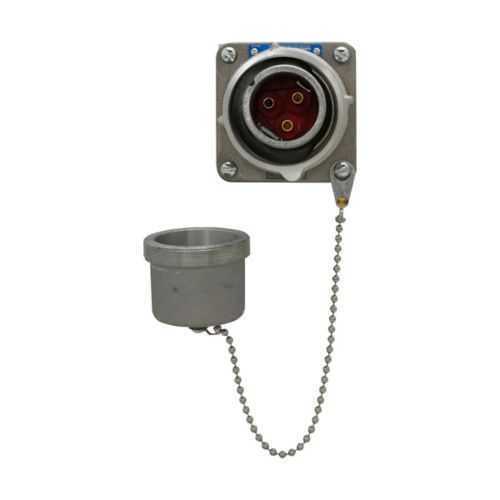

Eaton Crouse-Hinds APQ647 Motor Plug - NEMA 4
Part Number: APQ647
Quick Summary
APQ647 motor plug is a rugged power connection solution for industrial motors and drives. Engineers often face sealing challenges and wire compatibility in harsh environments, and this plug addresses those issues with a copper-free aluminum housing and a 0.50–1.45 in cable diameter range. It delivers NEC/CEC compliance, a NEMA 4 enclosure rating, and UL certification, supporting regulatory alignment across plants. Designed for control panels and motor starters, the APQ647 enables faster installations and lower maintenance in industrial automation projects while supporting reliable performance in everyday industrial use.
Product Information
Extended Description
APQ647 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Arktite APQ motor plug, 60A, 0.50-1.45", Four-wire, four-pole, 50-400 Hz, Style 1, Copper-free aluminum, 600 Vac/250 Vdc
Product Name
Eaton Crouse-Hinds series Arktite APQ motor plug
Catalog Number
APQ647
Product Length/Depth
4.25 in
Product Height
4.25 in
Product Width
4.875 in
Product Weight
2.88 lb
UPC
782274053103
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4
Amperage Rating
60A
Grounding type
Style 1
Configuration
Four-wire, four-pole
Cable diameter
0.50-1.45"
Material
Copper-free aluminum
Voltage rating
600 Vac/250 Vdc
Frequency rating
50 to 400 Hz
Arktite APQ Circuit Breaking Motor Plugs catalog page
Arktite APQ Circuit Breaking Motor Plugs UL certification
Eaton Specification Sheet - APQ647
60A amperage rating and a 600 Vac/250 Vdc voltage rating enable reliable power delivery for motors and drives in demanding lines. This reduces overload risk and simplifies protection schemes, improving uptime in manufacturing and packaging processes. The 0.50–1.45 in cable diameter range accommodates common motor leads, reducing re-termination and easing field wiring during panel upgrades. Copper-free aluminum housing lowers weight and improves corrosion resistance, simplifying handling during installation and extending component life in harsh environments. Four-wire, four-pole configuration with Style 1 grounding delivers clear, safe grounding and straightforward wiring for motor control circuits, enabling reliable disconnections and safer maintenance. The NEMA 4 enclosure rating with NEC/CEC compliance and UL certification ensures weatherproof operation in ordinary locations, reducing compliance costs and insurance concerns. With dimensions of 4.25 in length and height and 4.875 in width, plus a 2.88 lb weight, the APQ647 fits compact control panels and aligns with standard APQ footprints, streamlining panel planning and reducing shipping and installation time.
Get a Quick Quote for a Eaton Crouse-Hinds APQ647
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds APQ647?
Enquire Now
FAQs
APQ647 uses a four-wire, four-pole configuration with Style 1 grounding and accepts 0.50–1.45 inch cables. When installing, verify the panel footprint is compatible with the 4.25 inch depth and width of 4.875 inches, secure connections with appropriate torque, and ensure the environment is suitable for ordinary/non-hazardous locations per NEC/CEC guidance.
APQ647 delivers 60A amperage with a voltage rating of 600 Vac and 250 Vdc, and a frequency range of 50–400 Hz. It supports four-wire, four-pole motor connections and is designed for cable diameters between 0.50 and 1.45 inches, making it suitable for standard industrial motor leads.
Yes. APQ647 is aligned with NEC/CEC standards, carries a NEMA 4 rating for weather resistance, and is UL-certified, ensuring safe operation in ordinary/non-hazardous locations and simplifying regulatory compliance across facilities.
APQ647 is ideal for connecting motors and drives in control panels, machine tools, packaging lines, and other automation equipment. Its four-wire, four-pole design, along with the 60A rating and 50–400 Hz compatibility, supports robust motor starting and reliable panel wiring in demanding environments.
The copper-free aluminum housing reduces weight and corrosion, easing handling and lowering life-cycle costs. Its NEMA 4 weather protection and NEC/CEC compliance minimize downtime due to environmental exposure and regulatory audits, while standard dimensions facilitate quick panel upgrades and faster installation, delivering measurable savings in labor and maintenance.
