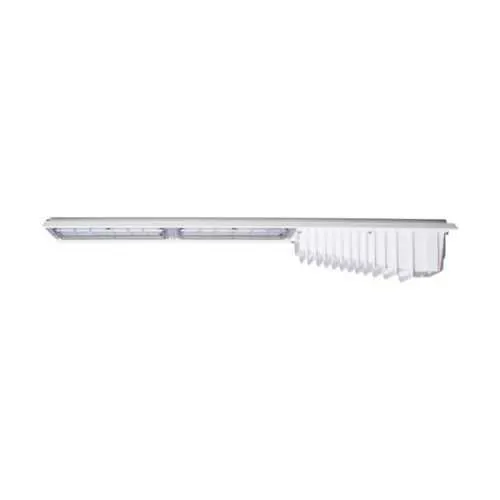

Eaton APX13L/UNV1 S903 Linear LED Light - IP66
Part Number: APX13L/UNV1 S903
Quick Summary
APX13L/UNV1 S903 is a Pauluhn Apex linear LED light fixture designed for harsh industrial environments. Operators often face maintenance downtime and unreliable illumination in washdown or dusty zones, which disrupts production and safety. With IP66 protection, NEMA 4X enclosure, and NEC/CEC compliance for ordinary locations, this fixture delivers rugged reliability in real-world facilities. The combination of universal voltage operation and high lumen output translates to energy savings and predictable performance, making it a smart choice for manufacturing floors, warehouses, and process areas seeking lower total cost of ownership and consistent visibility.
Product Information
Extended Description
APX13L/UNV1 S903 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Pauluhn Apex linear LED light fixture, 3-lamp T5HO, 50/60 Hz, LED, Polycarbonate lens, 13000 lm, 106 lm/W, Aluminum, PF > 0.90, 120-277 Vac, 127-250 Vdc, 122W
Product Name
Eaton Crouse-Hinds series Pauluhn Apex linear LED light fixture
Catalog Number
APX13L/UNV1 S903
Product Length/Depth
40.61 in
Product Height
6.39 in
Product Width
7.66 in
Product Weight
23.41 lb
UPC
662276617506
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
LED
Lumens
13000
Lumens per watt
106
Voltage rating
120-277 Vac, 127-250 Vdc
Frequency rating
50/60 Hz
Lens material
Polycarbonate
Material
Aluminum
Wattage
122W
Equivalent luminaire
3-lamp T5HO
Power factor
> 0.90
Crouse-Hinds series industrial LED lighting solutions
Crouse-Hinds series industrial LED lighting solutions
Crouse-Hinds series industrial LED lighting solutions
Crouse-Hinds series industrial LED lighting solutions
Crouse-Hinds series Pauluhn Apex LED Linear catalog page
Champ Pro PFM LED, Pauluhn Apex Industrial LED, Industrial High Bay LED and Weatherproof LED Light Fixtures UL certification
Champ Pro PFM LED, Pauluhn Apex Industrial LED, Industrial High Bay LED and Weatherproof LED Light Fixtures UL certification
Champ Pro PFM LED, Pauluhn Apex Industrial LED, Industrial High Bay LED and Weatherproof LED Light Fixtures UL certification
IF 1820 - Pauluhn Apex LED Linear
Pauluhn APEX LED Linear
Pauluhn APEX LED Linear
Feature → Business Impact → Application: LED technology delivering 13000 lm at 122W (106 lm/W) with PF > 0.90 reduces energy consumption and extends lamp life, lowering operating costs and maintenance frequency in continuous-process environments. The universal voltage range of 120-277 Vac or 127-250 Vdc simplifies stocking and retrofits across mixed electrical networks, enabling faster installations in multiple facility zones such as assembly lines and storage bays. IP66 ingress protection and a NEMA 4X enclosure provide robust washdown and corrosion resistance, improving uptime in damp, dusty, or industrial environments like food & beverage, automotive, and chemical plants. The polycarbonate lens and aluminum housing balance impact resistance with heat dissipation, supporting long service life in high-bay configurations. At 40.61 in length and 23.41 lb, installation is straightforward in standard ceilings and linear-layout corridors, offering a scalable solution for large-area lighting. This fixture aligns with industry trends toward energy efficiency, reduced maintenance, and compliant, future-ready industrial lighting infrastructure.
Get a Quick Quote for a Eaton Crouse-Hinds APX13L/UNV1 S903
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds APX13L/UNV1 S903?
Enquire Now
FAQs
APX13L/UNV1 S903 is designed for Ordinary/Non-Hazardous Locations with IP66 and NEMA 4X protection. For installation, confirm the area classification, mount in a suitable ceiling or mounting rail, and connect to a universal voltage supply (120–277 Vac or 127–250 Vdc) at 50/60 Hz. Refer to IF 1820 and the Pauluhn Apex installation instructions for wiring and mounting guidelines to ensure safe, compliant retrofits.
The fixture provides 13000 lumens at 122 watts, 106 lumens per watt, and a power factor greater than 0.90. It operates over a voltage range of 120–277 Vac or 127–250 Vdc and supports 50/60 Hz. This combination delivers bright, consistent light levels while optimizing energy efficiency and reducing operating costs in diverse plant settings.
Yes. The APX13L/UNV1 S903 features IP66 ingress protection and a NEMA 4X enclosure, offering strong resistance to dust, water, and corrosion. The aluminum housing paired with a polycarbonate lens provides robust durability in washdown zones, making it well-suited for manufacturing floors, paint booths, and other harsh environments where frequent cleaning is required.
The fixture supports NEC/CEC standards for ordinary locations, with IP66 ingress protection and NEMA 4X enclosure ratings. These certifications ensure compliance with common industrial installation codes and reliability in non-hazardous areas, helping facilities meet regulatory requirements while delivering dependable performance.
The LED solution delivers long life with high lumen output (13000 lm) at 122W, improving dependability and reducing replacement frequency. Universal voltage compatibility simplifies inventory and retrofits, while PF > 0.90 supports overall energy efficiency. In practice, facilities experience lower energy bills, reduced maintenance cycles, and improved worker visibility in critical process and storage areas, contributing to a favorable ROI over time.
