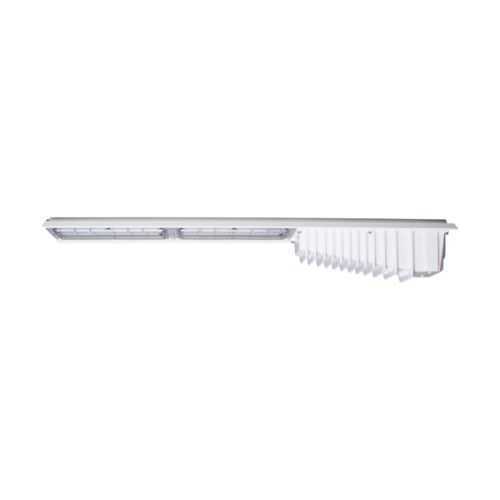

Eaton Crouse-Hinds APX17L/UNV34 S903 LED Light Fixture - IP66
Part Number: APX17L/UNV34 S903
Quick Summary
APX17L/UNV34 S903 LED light fixture delivers high-output linear illumination for industrial spaces and non-hazardous locations. Facility teams struggle with reliability, corrosion, and maintenance downtime in demanding environments where outages drive cost. IP66 ingress protection, NEMA 4X enclosure, and NEC/CEC compliance provide durable, code-ready operation across harsh indoor and washdown areas. This Pauluhn Apex fixture is designed for 347–480 VAC, 50/60 Hz service, delivering 17000 lumens at 118 lm/W from a 144 W LED source. With a polycarbonate lens and aluminum housing, it blends rugged build quality with energy efficiency, reducing total cost of ownership. Ideal for OEMs, integrators, and facility managers seeking consistent light, straightforward installation, and long-term reliability.
Product Information
Extended Description
APX17L/UNV34 S903 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Pauluhn Apex linear LED light fixture, 4-lamp T5HO, 50/60 Hz, LED, Polycarbonate lens, 17000 lm, 118 lm/W, Aluminum, PF > 0.90, 347-480 Vac, 144W
Product Name
Eaton Crouse-Hinds series Pauluhn Apex linear LED light fixture
Catalog Number
APX17L/UNV34 S903
Product Length/Depth
40.61 in
Product Height
6.39 in
Product Width
7.66 in
Product Weight
23.41 lb
UPC
662276627734
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
LED
Lumens
17000
Lumens per watt
118
Voltage rating
347-480 Vac
Frequency rating
50/60 Hz
Lens material
Polycarbonate
Material
Aluminum
Wattage
144W
Equivalent luminaire
4-lamp T5HO
Power factor
> 0.90
Crouse-Hinds series Global LED lighting portfolio
Crouse-Hinds series Global LED lighting portfolio
Crouse-Hinds series Global LED lighting portfolio
Crouse-Hinds series Global LED lighting portfolio
Crouse-Hinds series Pauluhn Apex LED Linear catalog page
Champ Pro PFM LED, Pauluhn Apex Industrial LED, Industrial High Bay LED and Weatherproof LED Light Fixtures UL certification
Champ Pro PFM LED, Pauluhn Apex Industrial LED, Industrial High Bay LED and Weatherproof LED Light Fixtures UL certification
Champ Pro PFM LED, Pauluhn Apex Industrial LED, Industrial High Bay LED and Weatherproof LED Light Fixtures UL certification
IF 1820 - Pauluhn Apex LED Linear
Eaton Specification Sheet - APX17L/UNV34 S903
Eaton Specification Sheet - APX17L/UNV34 S903
Feature: High lumen output of 17000 lm at 118 lm/W from a 144 W LED array. Business Impact: Delivers bright, uniform illumination with lower energy use and fewer fixtures needed for large spaces. Application: Large manufacturing floors, warehouses, and assembly lines where visibility directly affects productivity. Feature: 347–480 VAC, 50/60 Hz compatibility. Business Impact: Simplifies electrical design, reduces the need for transformers, and accelerates installation. Application: Facilities with variable power feeds or centralized electrical service. Feature: IP66 ingress protection and NEMA 4X enclosure. Business Impact: Enables reliable operation in wet, dusty, and washdown environments, lowering maintenance costs and downtime. Application: Food & beverage processing, chemical processing, and outdoor industrial areas. Feature: Aluminum housing with polycarbonate lens. Business Impact: Provides rugged durability and corrosion resistance while preserving optical performance. Application: Harsh settings where washdowns and corrosive exposure are common. Feature: 4-lamp T5HO equivalent illumination. Business Impact: Eases retrofit planning, reduces ballast needs, and supports scalable lighting upgrades. Application: Retrofit projects in existing facilities seeking LED parity with legacy fixtures. Feature: NEC/CEC compliance and Ordinary/Non-Hazardous Location rating. Business Impact: Streamlines approvals and ensures code-compliant installation. Application: Non-hazardous industrial environments with strict regulatory expectations.
Get a Quick Quote for a Eaton Crouse-Hinds APX17L/UNV34 S903
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds APX17L/UNV34 S903?
Enquire Now
FAQs
For installation, consult the IF1820 Pauluhn Apex instruction sheet and Eaton’s installation literature. The fixture supports 347–480 VAC service, a 40.61 in length, and 6.39 in height with a 7.66 in width, making alignment and mounting straightforward in high-bay or task-lit zones. Ensure proper mounting hardware, spacing, and compliance with NEC/CEC requirements.
Key specs include 17000 lumens at 118 lm/W from a 144 W LED array, operating on 347–480 VAC with 50/60 Hz frequency. The luminaire uses a polycarbonate lens and aluminum housing, delivering IP66 protection and a NEMA 4X enclosure suitable for non-hazardous areas in industrial settings.
Yes. The unit is certified for Ordinary/Non-Hazardous Locations under NEC/CEC standards and features a NEMA 4X/IP66-rated enclosure, enabling reliable operation in standard industrial environments without specialized hazardous-area approvals.
The fixture complies with NEC/CEC standards and is rated for Ordinary/Non-Hazardous Locations. It carries a NEMA 4X enclosure rating and IP66 ingress protection, supporting installations in wet, dusty, and washdown conditions while simplifying regulatory approvals.
The LED design delivers long life with reduced maintenance compared to legacy T5HO systems. With 17000 lumens and 118 lm/W efficiency, facilities save on energy costs and retrofit timing, while the rugged APX enclosure minimizes unplanned downtime in harsh environments.
