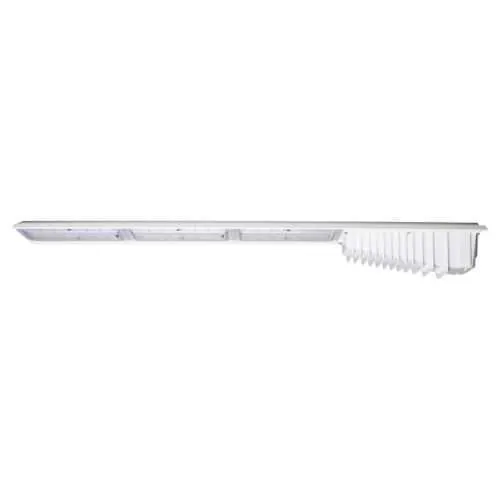

Eaton APX25L/UNV1 S903 LED Light Fixture - IP66
Part Number: APX25L/UNV1 S903
Quick Summary
APX25L/UNV1 S903 LED light fixture provides high-output industrial illumination for ordinary locations such as manufacturing floors. It helps address downtime and maintenance costs by delivering long life and reliable performance in demanding environments. It carries IP66 ingress protection, a NEMA 4X enclosure, and NEC/CEC compliance to meet rigorous industrial safety and performance standards. The unit supports both 120-277 VAC and 127-250 VDC, delivering 25,000 lumens at 115 lm/W with a PF above 0.90, for efficient operation across multi-voltage facilities. Designed as a compatible Pauluhn Apex linear luminaire, it reduces total cost of ownership through fewer replacements, lower energy use, and easier installation in high-ceiling or wet locations.
Product Information
Extended Description
APX25L/UNV1 S903 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Pauluhn Apex linear LED light fixture, 6-lamp T5HO, 50/60 Hz, LED, Polycarbonate lens, 25000 lm, 115 lm/W, Aluminum, PF > 0.90, 120-277 Vac, 127-250 Vdc, 217W
Product Name
Eaton Crouse-Hinds series Pauluhn Apex linear LED light fixture
Catalog Number
APX25L/UNV1 S903
Product Length/Depth
52.84 in
Product Height
6.39 in
Product Width
7.66 in
Product Weight
31.28 lb
UPC
662276618411
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
LED
Lumens
25000
Lumens per watt
115
Voltage rating
120-277 Vac, 127-250 Vdc
Frequency rating
50/60 Hz
Lens material
Polycarbonate
Material
Aluminum
Wattage
217W
Equivalent luminaire
6-lamp T5HO
Power factor
> 0.90
Crouse-Hinds series industrial LED lighting solutions
Crouse-Hinds series industrial LED lighting solutions
Crouse-Hinds series industrial LED lighting solutions
Crouse-Hinds series industrial LED lighting solutions
Crouse-Hinds series Pauluhn Apex LED Linear catalog page
Champ Pro PFM LED, Pauluhn Apex Industrial LED, Industrial High Bay LED and Weatherproof LED Light Fixtures UL certification
Champ Pro PFM LED, Pauluhn Apex Industrial LED, Industrial High Bay LED and Weatherproof LED Light Fixtures UL certification
Champ Pro PFM LED, Pauluhn Apex Industrial LED, Industrial High Bay LED and Weatherproof LED Light Fixtures UL certification
IF 1820 - Pauluhn Apex LED Linear
Pauluhn APEX LED Linear
Pauluhn APEX LED Linear
High-output brightness and efficiency: With 25,000 lumens and 115 lm/W, this fixture delivers bright, uniform illumination while keeping operating costs low. The high-power LED design supports clear visibility for fast-moving operations in warehouses, assemblies, and other industrial spaces. Flexible power options: It supports both 120-277 VAC and 127-250 VDC, enabling easy integration into existing power architectures without rewiring. This simplifies upgrades and retrofits across multi-voltage facilities, reducing installation time and risk. Rugged protection: IP66 ingress protection and a NEMA 4X enclosure protect against dust, water jets, and corrosion in harsh environments. The robust housing is well-suited for washdown areas and other demanding spaces common in industrial plants. Reliability and efficiency outcomes: A PF > 0.90 and 217W wattage deliver consistent performance with reduced electrical losses. Long LED life minimizes maintenance downtime and lowers replacement costs over the asset life. Compliance and compatibility: NEC/CEC standards ensure regulatory alignment, and ordinary/non-hazardous area classification fits typical industrial facilities. The polycarbonate lens and aluminum housing balance clarity with durability, supporting long-term service. Installation and integration: The 52.84 in length provides long-run coverage with fewer fixtures, improving project timing and material counts.
Get a Quick Quote for a Eaton Crouse-Hinds APX25L/UNV1 S903
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds APX25L/UNV1 S903?
Enquire Now
FAQs
The APX25L/UNV1 S903 is a 52.84 in linear LED luminaire that accepts 120-277 VAC or 127-250 VDC. For retrofit, mount to standard support channels or compatible housings, connect to a multi-voltage supply, verify IP66 seal, and follow the IF1820 instruction guidelines. Plan for straightforward long-run installations to minimize join points and installation time.
Key specs include 25,000 lumens at 115 lm/W, PF > 0.90, 217W power consumption, voltage range 120-277 VAC or 127-250 VDC, and 50/60 Hz operation. It uses a polycarbonate lens in an aluminum housing, with a 52.84 in length and 7.66 in width, suitable for long runs on industrial ceilings.
Yes. It features IP66 ingress protection and a NEMA 4X enclosure, making it appropriate for washdown environments. It is certified for Ordinary/Non-Hazardous Locations under NEC/CEC standards, which aligns with typical industrial facilities while not being rated for Hazardous Areas.
The fixture complies with NEC/CEC standards, carries an IP66 ingress protection rating, and uses a NEMA 4X enclosure. It is designed for Ordinary/Non-Hazardous Locations, ensuring regulatory alignment and robust protection in harsh industrial environments.
The long LED life combined with high lumen output reduces maintenance downtime and replacement costs. Energy efficiency (115 lm/W, PF > 0.90) lowers operating expenses, while 120-277 VAC or 127-250 VDC compatibility simplifies upgrades, delivering lower total cost of ownership across multi-voltage facilities.
