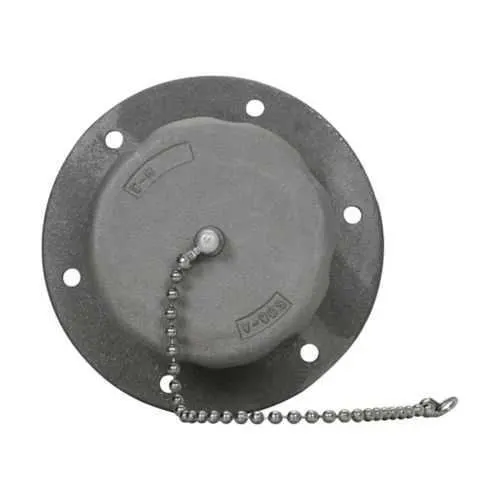

Eaton AR61047 AR Round Flange Receptacle - 600 Vac/250 Vdc
Part Number: AR61047
Quick Summary
Arktite AR round flange receptacle housing is a durable panel-mount solution for 100A, four-wire power connections in industrial control panels. Engineers and procurement teams face corrosion, misalignment, and downtime when connectors fail or interfaces loosen under vibration. This AR61047 unit addresses those challenges with a copper-free aluminum enclosure that resists corrosion and provides a rigid mounting base. It is designed to meet NEC/CEC standards and carries UL certification for safety and reliability in ordinary/non-hazardous locations. By combining robust electrical performance with straightforward installation—thanks to a dedicated AR mounting flange and standardized four-wire configuration—your panel builds stay compliant, productive, and easier to service, delivering predictable ROI and reduced total cost of ownership.
Product Information
Extended Description
AR61047 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Arktite AR round flange receptacle housing, 100A, Four-wire, four-pole, Style 1, Copper-free aluminum, 600 Vac/250 Vdc
Product Name
Eaton Crouse-Hinds series Arktite AR round flange receptacle housing
Catalog Number
AR61047
Product Length/Depth
6.44 in
Product Height
4.75 in
Product Width
4.75 in
Product Weight
3.44 lb
UPC
782274068305
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Amperage Rating
100A
Grounding type
Style 1
Configuration
Four-wire, four-pole
Material
Copper-free aluminum
Voltage rating
600 Vac/250 Vdc
Arktite Flange Receptacle Housing for Panel Mounting catalog page
Arktite Flange Receptacle Housing for Panel Mounting UL certification
IF 292 - Arktite Plug with Receptacle Mounting Flange
Eaton Specification Sheet - AR61047
AR61047 delivers a 100A amperage rating with a four-wire, four-pole configuration, enabling clean, four-conductor power delivery for panel-mounted interfaces. The ability to carry higher current in a compact housing reduces the number of parallel connections, improving reliability and reducing wiring errors in control panels. In practice, this means faster commissioning and safer terminations during installation. Copper-free aluminum construction provides corrosion resistance and a lighter profile compared to traditional copper-bearing housings. This translates to longer service life in ordinary locations and lower replacement costs for critical power assemblies. The material choice also simplifies procurement and improves sustainability for OEMs. Round flange mounting with Style 1 grounding simplifies panel integration and ensures stable, vibration-resistant connections in noisy industrial environments. The 6.44 in length and 4.75 in width/height footprint fit compact panels and standard mounting flanges, minimizing enclosure redesigns. For installers, available installation sheets (IF 292) and the Eaton specification page accelerate correct assembly and reduce field questions. Compliance and installation support are reinforced by NEC/CEC standards and UL certification, + availability of Arktite catalogs and documentation to aid validation and traceability. By aligning with common standards and providing structured documentation, AR61047 minimizes risk and accelerates project timelines. Product compatibility with AR round flange receptacle housings enables a standardized approach, reducing spare-part variety and supporting faster maintenance and predictable long-term support from Eaton.
Get a Quick Quote for a Eaton Crouse-Hinds AR61047
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds AR61047?
Enquire Now
FAQs
Ensure correct AR mounting flange pairing and alignment with the AR series interface. Use the IF 292 installation sheet for flange mounting guidance, connect all four conductors in a four-wire, four-pole configuration, and verify copper-free aluminum terminal integrity. Torque values and color-coding should follow the Eaton spec page to avoid miswiring and ensure reliable, vibration-resistant connections.
AR61047 is rated for 100A with a four-wire, four-pole configuration. It supports 600 Vac and 250 Vdc, uses Style 1 grounding, and employs copper-free aluminum construction. The unit measures 6.44 in long and 4.75 in high by 4.75 in wide, with a UPC of 782274068305, suitable for ordinary locations under NEC/CEC guidance.
AR61047 is specified for Ordinary/Non-Hazardous Locations. It is not rated for hazardous or classified environments. For hazardous areas, select a model with appropriate enclosure and certification aligned to the specific hazard class, barrier, and wiring method required by your facility’s safety program and local codes.
AR61047 carries NEC/CEC standards alignment and UL certification for safety and reliability in standard industrial installations. Verification via Eaton’s catalog pages and UL certification references can streamline regulatory approvals and facility audits, ensuring consistent performance across control panels and assemblies.
The copper-free aluminum construction reduces corrosion-related maintenance and extends service life, lowering replacement costs. Its 100A rating supports fewer parallel connections, reducing wiring complexity and downtime during commissioning. Documentation and compatibility with AR mounting interfaces simplify procurement, installation, and future upgrades, delivering a lower total cost of ownership and faster return on investment.
