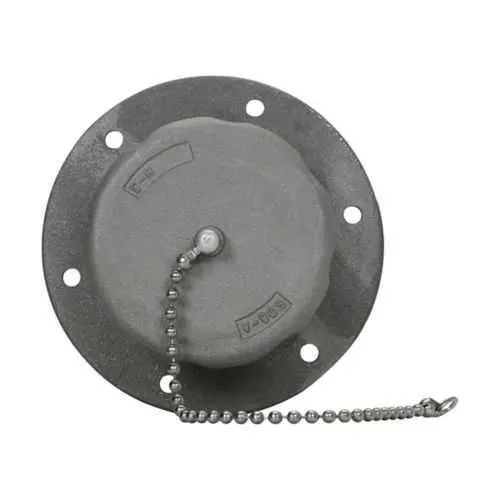

Eaton Crouse-Hinds AR61048 Receptacle Housing - 600 Vac/250 Vdc
Part Number: AR61048
Quick Summary
The Eaton Crouse-Hinds AR61048 Receptacle Housing is a rugged, panel-mount power connection engineered for Arktite AR round flange installations. Engineers often face downtime when mounting hardware misaligns with flanges or when enclosures limit current capacity. This unit offers NEC/CEC compliance with ordinary/non-hazardous area classification and UL-certified options to simplify regulatory approvals. Built from copper-free aluminum, it delivers strength with reduced weight while supporting 100A at 600 Vac/250 Vdc. Its compact form suits mid‑size control panels and field installations, delivering reliable grounding and easy integration into existing assemblies. Designed for industrial environments, it balances performance, installation efficiency, and total cost of ownership for automation projects.
Product Information
Extended Description
AR61048 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Arktite AR round flange receptacle housing, 100A, Three-wire, four-pole, Style 2, Copper-free aluminum, 600 Vac/250 Vdc
Product Name
Eaton Crouse-Hinds series Arktite AR round flange receptacle housing
Catalog Number
AR61048
Product Length/Depth
6.44 in
Product Height
4.75 in
Product Width
4.75 in
Product Weight
3.3 lb
UPC
782274068343
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Amperage Rating
100A
Grounding type
Style 2
Configuration
Three-wire, four-pole
Material
Copper-free aluminum
Voltage rating
600 Vac/250 Vdc
Arktite Flange Receptacle Housing for Panel Mounting catalog page
Arktite Flange Receptacle Housing for Panel Mounting UL certification
IF 292 - Arktite Plug with Receptacle Mounting Flange
Eaton Specification Sheet - AR61048
Feature: 100A amperage with a three-wire, four-pole configuration. Benefit: standardizes panel wiring and supports common mid‑range loads, reducing wiring complexity and Part Number proliferation. Application: ideal for control panels and machine enclosures in automation projects. Feature: Copper-free aluminum construction. Benefit: provides corrosion resistance with lighter weight, lowering handling effort and maintenance costs. Application: outdoor or humid indoor environments where enclosure longevity matters. Feature: Voltage rating of 600 Vac/250 Vdc. Benefit: broad compatibility across mixed-voltage systems, simplifying procurement and inventory. Application: panel boards, process equipment, and power distribution in industrial settings. Feature: Style 2 grounding and flange-mount configuration. Benefit: enhances mechanical integrity and grounding reliability, reducing field wiring steps. Application: robust connections in standard Arktite panel mounts. Feature: Compact dimensions and weight (6.44 in L × 4.75 in W × 4.75 in H; 3.3 lb). Benefit: enables denser panel layouts and faster installation with predictable fit. Application: space-constrained enclosures in automation lines. Feature: Certifications and documentation support (NEC/CEC, Ordinary/Non-Hazardous locations; UL certification available). Benefit: mitigates compliance risk and accelerates approvals. Application: regulated facilities and turnkey projects; installation guidance via IF 292 and spec sheets.
Get a Quick Quote for a Eaton Crouse-Hinds AR61048
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds AR61048?
Enquire Now
FAQs
Install AR61048 by securing the round flange receptacle housing to the panel using standard mounting flanges per the IF 292 instruction sheet. Route three-wire, four-pole conductors into the terminal arrangement, then complete grounding per Style 2. Verify clearance and seal where applicable, and refer to the Arktite mounting guidelines for panel thickness and cutout requirements.
AR61048 provides a 100A amperage rating with a three-wire, four-pole configuration and a voltage rating of 600 Vac / 250 Vdc. The housing is made from copper-free aluminum, offering a robust solution for mid-range power distribution in industrial panels and equipment enclosures.
Yes. The AR61048 is designed for ordinary/non-hazardous locations and adheres to NEC/CEC standards, with UL-certified options available to support compliant panel builds in regulated facilities. This aligns with typical industrial automation and electrical infrastructure projects.
The receptacle housing measures 6.44 inches in length, 4.75 inches in width, and 4.75 inches in height, with an approximate weight of 3.3 pounds. These dimensions support compact panel layouts and straightforward installation in standard Arktite panel assemblies.
Refer to the AR61048 specification sheet and IF 292 installation sheet from Eaton for installation guidance. Additional resources include the Arktite catalog page and UL certification documentation accessible via Eaton’s and UL’s databases to support compliance and procurement decisions.
