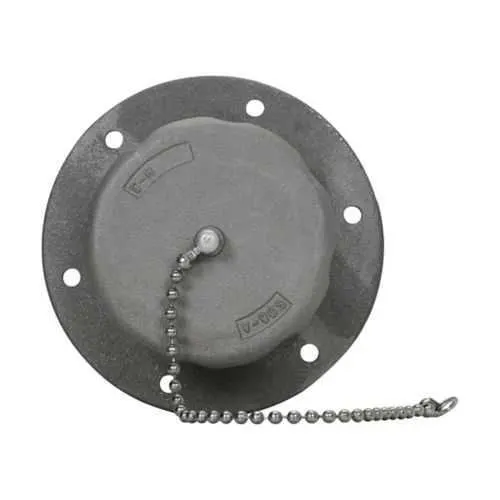

Eaton Crouse-Hinds AR6348 Arktite AR round flange receptacle housing - 600 Vac/250 Vdc
Part Number: AR6348
Quick Summary
Arktite AR round flange receptacle housing enables reliable 30A power connections in panel-mounted industrial enclosures. Engineers often wrestle with cramped layouts, corrosion risks, and wiring errors during panel installations. This AR6348 meets NEC/CEC standards, carries UL certification, and is rated for Ordinary/Non-Hazardous locations. Designed for enclosures & electrical infrastructure, it simplifies panel mounting, accelerates installation, and improves lifecycle reliability—especially in copper-free aluminum constructions.
Product Information
Extended Description
AR6348 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Arktite AR round flange receptacle housing, 30A, Two-wire, three-pole, Style 2, Copper-free aluminum, 600 Vac/250 Vdc
Product Name
Eaton Crouse-Hinds series Arktite AR round flange receptacle housing
Catalog Number
AR6348
Product Length/Depth
3.88 in
Product Height
4.75 in
Product Width
4.75 in
Product Weight
1.44 lb
UPC
782274066783
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Amperage Rating
30A
Grounding type
Style 2
Configuration
Two-wire, three-pole
Material
Copper-free aluminum
Voltage rating
600 Vac/250 Vdc
Arktite Flange Receptacle Housing for Panel Mounting catalog page
Arktite Flange Receptacle Housing for Panel Mounting UL certification
IF 292 - Arktite Plug with Receptacle Mounting Flange
Eaton Specification Sheet - AR6348
The AR6348 combines rugged copper-free aluminum construction with a 30A rating, delivering a lightweight yet durable solution that reduces handling and installation time. Business impact: lower total cost of ownership due to easier wiring, faster panel integration, and improved corrosion resistance in non-hazardous environments. Application: panel-mounted systems in general purpose enclosures and process controls where space is tight and reliability is paramount. The two-wire, three-pole configuration with Style 2 grounding supports dependable grounding continuity, while the 600 VAC / 250 VDC rating expands compatibility with mixed supply systems. This receiver housing is compatible with Arktite AR series components and installation sheets like IF 292, helping prevent misalignment and unused-space issues common in compact panels. Industry context: engineers benefit from standardized panel-mount solutions that meet NEC/CEC and UL requirements, reducing regulatory risk and schedule delays.
Get a Quick Quote for a Eaton Crouse-Hinds AR6348
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds AR6348?
Enquire Now
FAQs
Follow the Arktite installation guidance (IF 292) for panel mounting flange receptacles. Align AR6348 with the flange, secure with appropriate mounting hardware, confirm ground continuity, and connect the two-wire, three-pole circuit rated for 30A. Verify the enclosure is suitable for Ordinary/Non-Hazardous locations and ensure wiring adheres to NEC/CEC requirements for safe, reliable operation.
AR6348 is rated for 30A with a voltage rating of 600 VAC or 250 VDC. It uses a two-wire, three-pole configuration and employs Style 2 grounding. The housing is copper-free aluminum, designed for panel mounting in Arktite AR series enclosures and is suited to ordinary, non-hazardous environments under NEC/CEC standards.
AR6348 is specified for Ordinary/Non-Hazardous Locations. It adheres to NEC/CEC standards and UL certification, making it appropriate for standard industrial control panels and general-purpose enclosures. For hazardous locations, consult Eaton Crouse-Hinds product recommendations to select a version with appropriate certification.
AR6348 complies with NEC/CEC standards and UL certification, and is rated for Ordinary/Non-Hazardous Locations. These certifications support regulatory compliance and safe operation in general industrial environments, reducing risk during audits and inspections while ensuring compatibility with common control panels.
Use the IF 292 instruction sheet for consistent mounting practices to minimize misalignment and installation time. The copper-free aluminum design reduces weight and corrosion risk, lowering maintenance needs over the product lifecycle. Leverage standardized AR series components for quick replacements and predictable performance, which translates to reduced downtime and improved overall equipment effectiveness (OEE).
