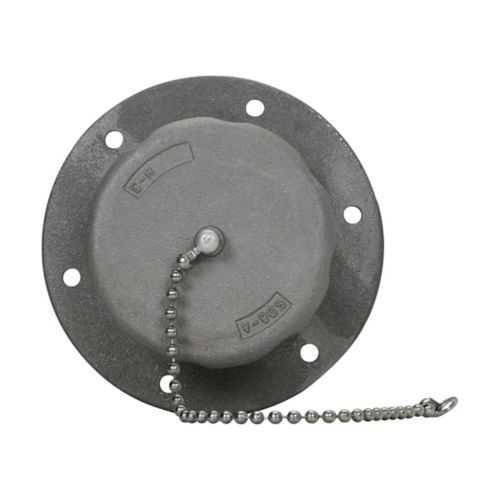

Eaton AR6647 AR Round Flange Receptacle Housing - 60A 600Vac/250Vdc
Part Number: AR6647
Quick Summary
Arktite AR round flange receptacle housing is designed for durable, high-current panel connections in industrial enclosures. Installers often struggle with corrosion, vibration-induced loosening, and inconsistent grounding in harsh environments, which can lead to unplanned downtime. This design addresses those challenges with a copper-free aluminum body, precise flange mounting, and a Style 1 grounding scheme that stays secure under vibration. It carries UL certification and NEC/CEC compliance, plus Ordinary/Non-Hazardous Locations classification, ensuring safe operation and streamlined approvals. For procurement and field deployment, the combination of rugged construction, clear specifications, and straightforward installation reduces commissioning time and long-term maintenance costs, while supporting reliable, compliant performance in demanding facilities.
Product Information
Extended Description
AR6647 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Arktite AR round flange receptacle housing, 60A, Four-wire, four-pole, Style 1, Copper-free aluminum, 600 Vac/250 Vdc
Product Name
Eaton Crouse-Hinds series Arktite AR round flange receptacle housing
Catalog Number
AR6647
Product Length/Depth
5.25 in
Product Height
4.75 in
Product Width
4.75 in
Product Weight
2.53 lb
UPC
782274067506
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Amperage Rating
60A
Grounding type
Style 1
Configuration
Four-wire, four-pole
Material
Copper-free aluminum
Voltage rating
600 Vac/250 Vdc
Arktite Flange Receptacle Housing for Panel Mounting catalog page
Arktite Flange Receptacle Housing for Panel Mounting UL certification
IF 292 - Arktite Plug with Receptacle Mounting Flange
Eaton Specification Sheet - AR6647
Feature: Copper-free aluminum construction. Business impact: excellent corrosion resistance and lighter weight reduce maintenance needs and simplify handling in tight panel spaces. Application: Arktite AR round flange receptacle housings in panel-mounted enclosures used in non-hazardous industrial environments. Feature: 60A amperage rating with 600 Vac/250 Vdc voltage. Business impact: supports high-load circuits with stable performance, reducing overheating risk and wiring complexity. Application: panel interfaces for motors, pumps, and controls in NEC/CEC-compliant systems. Feature: Four-wire, four-pole configuration with Style 1 grounding. Business impact: provides a clear, reliable grounding path even under vibration, aiding fault diagnosis and safety. Application: dependable field connections in control panels and associated equipment. Feature: Compact, flange-mounted form with dimensions of 5.25 in length, 4.75 in height, and 4.75 in width; weight 2.53 lb. Business impact: fits standard panel cutouts, accelerates installation, and minimizes enclosure rework. Application: space-constrained control panels and junction enclosures. Feature: NEC/CEC compliance, UL certification, and Ordinary/Non-Hazardous Locations classification. Business impact: simplifies approvals, enhances safety, and reduces project risk. Application: new builds and retrofits across manufacturing and process facilities, with straightforward documentation and sourcing.
Get a Quick Quote for a Eaton Crouse-Hinds AR6647
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds AR6647?
Enquire Now
FAQs
Yes. AR6647 uses a round flange receptacle housing designed for Arktite mounting flanges and standard panel cutouts. Its 5.25 in length and 4.75 in width/height provide a compact, straightforward fit in typical control panels, and instructions like IF 292 support correct mounting and alignment during installation.
AR6647 is rated for 60A and supports 600 Vac / 250 Vdc. It is a four-wire, four-pole configuration with Style 1 grounding, crafted from copper-free aluminum to balance conductivity with corrosion resistance, suitable for reliable operation in panel-mounted applications.
This receptacle housing is intended for ordinary/non-hazardous locations under NEC/CEC standards. It is suited for industrial panels and equipment connections where robust grounding and reliable, high-current connections are required, while meeting UL certification expectations.
AR6647 complies with NEC/CEC standards and UL certification, and is classified for Ordinary/Non-Hazardous Locations. These certifications support safe operation, simpler approvals, and streamlined integration into code-compliant control panels and enclosures.
The copper-free aluminum construction and precise flange mounting reduce corrosion-related maintenance and field reworks. The 60A/600Vac rating supports durable, high-current performance, while standardized dimensions ease supplier stocking and installation, delivering faster commissioning and lower lifecycle costs for manufacturing and process facilities.
