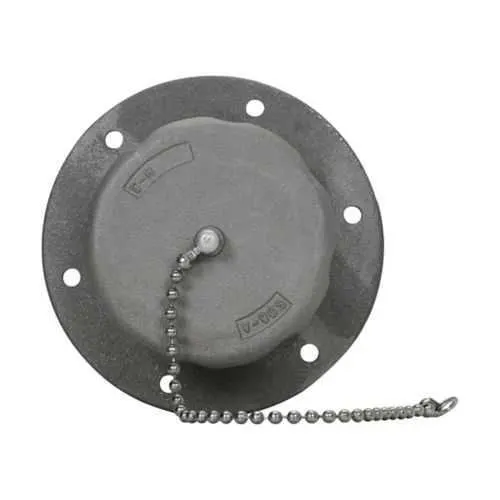

Eaton AR6648 Receptacle Housing - 60A, Four-pole
Part Number: AR6648
Quick Summary
AR6648 receptacle housing is a rugged, panel-mount electrical interface designed for industrial enclosures. Engineers often struggle with durable, corrosion-resistant fittings that also meet regulatory requirements in harsh environments. This AR6648 assembly complies with NEC/CEC standards and is rated for Ordinary/Non-Hazardous Locations, backed by UL certification. For panel builders and integrators, the copper-free aluminum body reduces weight while simplifying installation, delivering reliability and cost efficiency across multiple automation applications.
Product Information
Extended Description
AR6648 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Arktite AR round flange receptacle housing, 60A, Three-wire, four-pole, Style 2, Copper-free aluminum, 600 Vac/250 Vdc
Product Name
Eaton Crouse-Hinds series Arktite AR round flange receptacle housing
Catalog Number
AR6648
Product Length/Depth
5.25 in
Product Height
4.75 in
Product Width
4.75 in
Product Weight
2.63 lb
UPC
782274067605
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Amperage Rating
60A
Grounding type
Style 2
Configuration
Three-wire, four-pole
Material
Copper-free aluminum
Voltage rating
600 Vac/250 Vdc
Arktite Flange Receptacle Housing for Panel Mounting catalog page
Arktite Flange Receptacle Housing for Panel Mounting UL certification
IF 292 - Arktite Plug with Receptacle Mounting Flange
Eaton Specification Sheet - AR6648
Feature → Business Impact → Application: The 60A amperage rating enables robust power delivery to medium-sized automation loads, reducing interconnects and simplifying wire sizing, which translates to shorter panel design and faster commissioning. Three-wire, four-pole configuration with Style 2 grounding provides a solid fault path and safer maintenance in demanding environments, making it ideal for control panels and machine enclosures in ordinary locations.Feature → Business Impact → Application: Copper-free aluminum offers corrosion resistance with significantly lighter weight than traditional copper components, easing handling during installation and lowering shipping and labor costs. The 600 Vac/250 Vdc voltage rating supports mixed AC/DC systems, enhancing flexibility for panel designers and field service teams in mixed-signal environments.Feature → Business Impact → Application: Round flange mounting supports clean enclosure integration and compatibility with the Arktite AR series for panel-mounted receptacles, reducing assembly steps and improving seal integrity. Compliance with NEC/CEC and UL documentation provides regulatory assurance for panel fabrication, installation, and ongoing maintenance in manufacturing lines.Feature → Business Impact → Application: Durable construction and standardized specifications enable predictable maintenance cycles and lower total cost of ownership, with readily available installation instructions (IF 292) and datasheets supporting quick on-site commissioning in industrial facilities.Feature → Business Impact → Application: The combination of 60A, three-wire four-pole configuration and rated voltage ensures reliable performance in common industrial controls, enabling engineers to meet system budgets while maintaining robust safety margins across panel-mounted receptacles.
Get a Quick Quote for a Eaton Crouse-Hinds AR6648
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds AR6648?
Enquire Now
FAQs
AR6648 is designed for panel mounting with a round flange compatible with the Arktite AR series. The flange supports secure installation in control panels and machine enclosures, providing a robust sealing interface. Its 4-pole, 3-wire configuration aligns with standard panel-mounted receptacles, enabling straightforward integration with matching plug sets and mating components from the AR family.
AR6648 is rated for 60A with a voltage rating of 600 Vac / 250 Vdc. It uses a three-wire, four-pole configuration and Style 2 grounding. This arrangement supports reliable grounding paths and safe fault current paths in industrial control panels, while allowing flexible connection to mixed AC/DC systems common in automation equipment.
AR6648 is intended for Ordinary/Non-Hazardous Locations and NEC/CEC-compliant installations. It’s ideal for panel-mounted receptacle housing in industrial automation, packaging, and processing equipment where robust power interfaces are needed without hazardous location classifications, offering durable aluminum construction and UL-backed certification for safe operation.
AR6648 aligns with NEC/CEC standards and is documented for Ordinary/Non-Hazardous Locations. UL certification is available via official documentation, and installation sheets (IF 292) support correct wiring and safe assembly. This combination helps ensure regulatory compliance, ease of inspection, and formal safety validation for panel assemblies in manufacturing environments.
The copper-free aluminum body resists corrosion, reducing maintenance needs and extending service life in exposed or humid environments. Its 60A rating and robust grounding scheme minimize downtime from interconnect failures, while standardized AR compatibility simplifies spares and field replacements. Overall, this translates to lower total cost of ownership and faster return on investment for automation projects.
