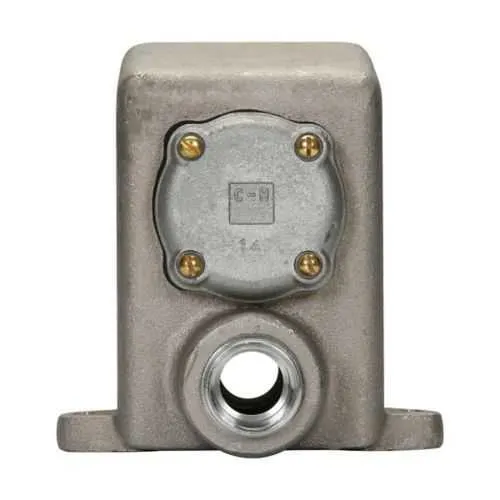

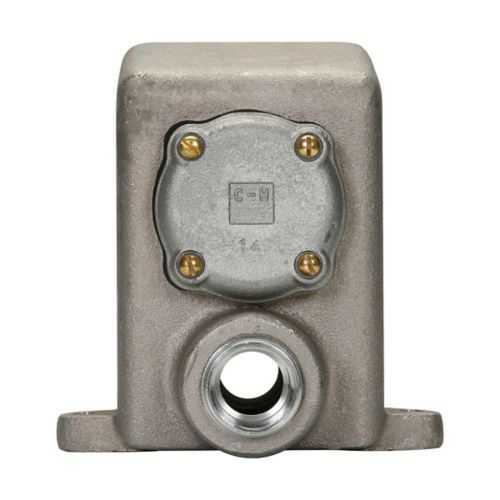

Eaton Crouse-Hinds ARD13 Back Box - 20A/30A
Part Number: ARD13
Quick Summary
ARD13 back box from Eaton Crouse-Hinds provides rugged enclosure solutions for field wiring in industrial control panels. Engineers often struggle with secure through-feed wiring and tight installation spaces, and ARD13 answers with precise dimensions and robust construction. This unit supports Ordinary/Non-Hazardous Locations area classification and carries a 1/2 inch trade size with a 20A/30A amperage rating, while the cast aluminum body delivers enduring protection. Its through-feed back box design simplifies wiring access and reduces mounting time, helping maintenance teams boost uptime and cut installation costs. Designed for compatibility with Arktite receptacles and standard panel hardware, ARD13 also supports scalable enclosure configurations for evolving industrial applications.
Product Information
Extended Description
ARD13 Eaton Crouse-Hinds: Eaton Crouse-Hinds series ARD back box, 20A/30A, Through feed, Cast aluminum, 1/2"
Product Name
Eaton Crouse-Hinds series ARD back box
Catalog Number
ARD13
Product Length/Depth
5.31 in
Product Height
3.69 in
Product Width
4.25 in
Product Weight
1.35 lb
UPC
782274070100
Area classification
Ordinary/Non-Hazardous Locations
Trade size
1/2"
Amperage Rating
20A/30A
Back box style
Through feed
Material
Cast aluminum
Feature: Cast aluminum enclosure delivers high strength-to-weight ratio and corrosion resistance → Business impact: Enhances durability in harsh environments while minimizing weight-related handling and shipping costs → Application: Suitable for outdoor or damp industrial areas where enclosure integrity matters. Feature: Through feed back box design enables straightforward wiring access → Business impact: Reduces field labor time and minimizes wiring errors during installation → Application: Ideal for switches, relays, and receptacle mounting in control panels. Feature: 20A/30A amperage rating with 1/2" trade size → Business impact: Supports common device loads while maintaining compact form factor → Application: Fits standard 1/2" conduit/Wiring configurations in confined spaces. Feature: Compact dimensions (5.31 in L × 3.69 in H × 4.25 in W) → Business impact: Improves panel density and reduces enclosure footprint → Application: Enables scalable panel layouts in control cabinets. Feature: Ordinary/Non-Hazardous Locations area classification → Business impact: Streamlines compliance planning and procurement for non-hazardous environments → Application: Suitable for general industrial equipment housings and non-hazardous control stations. Feature: Compatibility with Arktite receptacles and standard hardware → Business impact: Simplifies sourcing and replacement, reducing downtime during upgrades or maintenance → Application: Supports retrofit projects and modular enclosure strategies.
Get a Quick Quote for a Eaton Crouse-Hinds ARD13
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds ARD13?
Enquire Now
FAQs
The ARD13 back box is a 1/2 inch trade size, cast aluminum enclosure with a through-feed design. When installing, ensure mounting on a flat surface with adequate clearance for wiring access, and plan for 20A/30A circuit wiring. Use standard panel hardware and verify that the location is classified as Ordinary/Non-Hazardous to meet compliance. The through-feed setup speeds wiring runs and minimizes internal space conflicts.
Yes. ARD13 is specified for 1/2 inch trade size and supports through-feed connections, enabling straightforward wiring passes into and out of the enclosure. Its cast aluminum body provides robust protection, making it well-suited for industrial environments where durable back boxes are needed to simplify wiring layouts and reduce labor during installation.
The ARD13 back box is designed for ordinary/non-hazardous locations, ideal for control panels, equipment housings, and junction points in general industrial settings. Its 20A/30A rating supports typical control circuit loads, while its compact dimensions help maximize panel density. This makes it a practical choice for retrofits and new installations where reliability and ease of maintenance are priorities.
According to the provided data, ARD13 carries an area classification of Ordinary/Non-Hazardous Locations. No additional certifications such as SIL, CE, or IP ratings are listed in the specifications. For projects requiring specific regulatory approvals, verify the latest Eaton documentation or contact a representative to confirm any jurisdiction-specific certifications before procurement.
ARD13 reduces maintenance time through its through-feed design, permitting easier wiring access and faster servicing of field connections. The cast aluminum construction resists corrosion, extending enclosure life in active factory environments. Its compatibility with Arktite receptacles and standard hardware minimizes downtime during upgrades, contributing to lower total cost of ownership and improved uptime for critical equipment.
