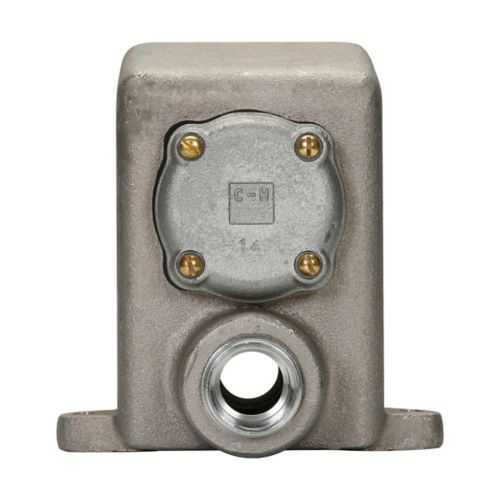

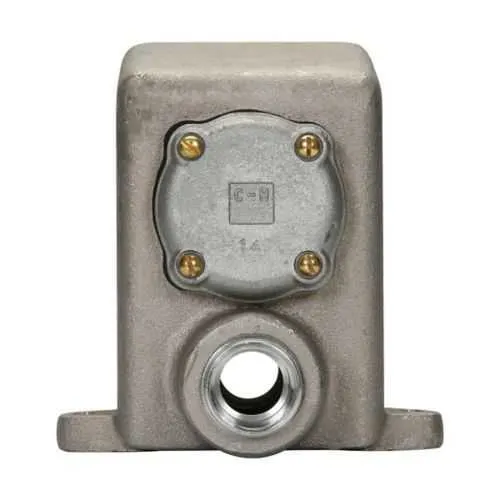

Eaton ARD23 Back Box - Through Feed, 3/4 in Cast Aluminum
Part Number: ARD23
Quick Summary
The ARD23 back box provides a rugged enclosure for through-feed wiring in industrial panels. Engineers often struggle with secure connections in tight spaces; this ARD23 combines a compact footprint with a rugged cast aluminum body. The product is classified for Ordinary/Non-Hazardous Locations, aligning with common plant environments and reducing compliance risk. With a 3/4 in trade size and 20A/30A amperage rating, it supports flexible wiring layouts while keeping install time low. Its compatibility with through-feed back box configurations helps simplify wiring harness design and field upgrades. Overall, ARD23 delivers reliable protection, faster installation, and ongoing maintenance efficiency for panel builders and engineers.
Product Information
Extended Description
ARD23 Eaton Crouse-Hinds: Eaton Crouse-Hinds series ARD back box, 20A/30A, Through feed, Cast aluminum, 3/4"
Product Name
Eaton Crouse-Hinds series ARD back box
Catalog Number
ARD23
Product Length/Depth
5.31 in
Product Height
3.69 in
Product Width
4.25 in
Product Weight
1.1 lb
UPC
782274070209
Area classification
Ordinary/Non-Hazardous Locations
Trade size
3/4"
Amperage Rating
20A/30A
Back box style
Through feed
Material
Cast aluminum
Amperage rating and through-feed design deliver direct business impact: simplify power distribution wiring and reduce panel depth. The ARD23 supports 20A/30A circuits, enabling clean terminations for a broad range of equipment while the through-feed back box style simplifies pass-through wiring from conduit into the enclosure. This combination reduces wiring complexity, minimizes reworks during panel builds, and speeds commissioning on new or modified controls. Cast aluminum construction provides durability with corrosion resistance, extending service life and lowering maintenance costs in typical factory environments. The enclosure's compact footprint—5.31 in length, 3.69 in height, and 4.25 in width, at roughly 1.1 lb—saves panel real estate and improves install accessibility in tight spaces. Through-feed compatibility aligns with common conduit fittings and Arktite receptacle catalogs, enabling streamlined procurement and faster field installs. Classified for Ordinary/Non-Hazardous Locations, the ARD23 supports reliable operation in standard plant environments while offering robust mounting and a straightforward maintenance profile for OEMs and service teams.
