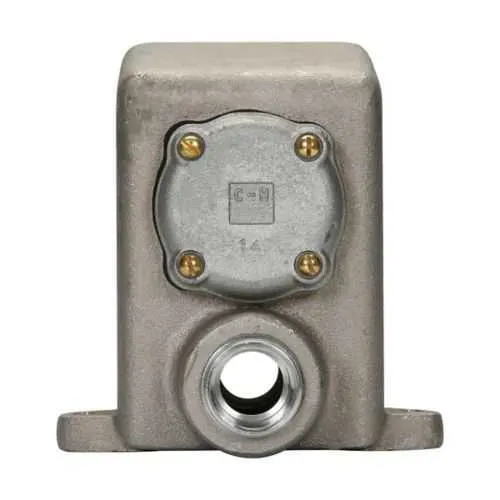

Eaton Crouse-Hinds ARD46 Back Box - 60A Through Feed
Part Number: ARD46
Quick Summary
ARD46 back box is a rugged enclosure that enables clean, through-feed terminations in industrial panels and control cabinets. This design addresses cramped layouts and difficult cable routing by delivering a compact, cast aluminum solution with precise fit for 1-1/4" trade size. This unit supports Ordinary/Non-Hazardous Location applications while maintaining robust current handling through a 60A rating, promoting safe, code-compliant power distribution. With Arktite receptacle compatibility and easy installation, it offers lower lifecycle costs and faster commissioning for panel builders and OEMs.
Product Information
Extended Description
ARD46 Eaton Crouse-Hinds: Eaton Crouse-Hinds series ARD back box, 60A, Through feed, Cast aluminum, 1-1/4"
Product Name
Eaton Crouse-Hinds series ARD back box
Catalog Number
ARD46
Product Length/Depth
7.06 in
Product Height
5.75 in
Product Width
5.13 in
Product Weight
3.45 lb
UPC
782274070506
Area classification
Ordinary/Non-Hazardous Locations
Trade size
1-1/4"
Amperage Rating
60A
Back box style
Through feed
Material
Cast aluminum
Feature: 60A amperage rating paired with a through-feed back box design. Business impact: supports higher-current terminations in a compact enclosure, reducing the need for additional boxes and minimizing copper and conduit runs. Application: ideal for machine control panels and equipment where clean routing of feeds is essential. Feature: 1-1/4" trade size and through-feed configuration. Impact: simplifies conduit connections and cable management in tight spaces, lowering installation time and error rates. Application: panel door terminations and receptor assemblies in non-hazardous locations. Feature: Cast aluminum body. Impact: rugged, corrosion-resistant enclosure that withstands washdowns, humidity, and vibration, reducing maintenance intervals. Application: outdoor or damp indoor environments where enclosure integrity matters. Feature: Compact dimensions. Impact: space-saving footprint with 7.06 in length, 5.75 in height, and 5.13 in width, enabling denser panel layouts. Application: retrofit projects and new equipment where enclosure real estate is limited. Feature: Area classification Ordinary/Non-Hazardous Locations. Impact: supports compliance within standard plant environments and avoids over-specification for non-hazardous sites. Application: industrial control panels in typical manufacturing settings. Feature: Through-feed back box style. Impact: simplifies wiring schemes and improves cable management efficiency. Application: receptacle and conduit networks in centralized control assemblies. Insight: Compatibility with Arktite receptacles (catalog references) helps standardize components across equipment lines, reducing part diversity and procurement complexity.
Get a Quick Quote for a Eaton Crouse-Hinds ARD46
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds ARD46?
Enquire Now
FAQs
The ARD46 supports a 1-1/4" trade size and through-feed design, making it compatible with Arktite receptacles and standard conduit terminations in non-hazardous locations. Its cast aluminum body provides a sturdy mounting footprint, while the relatively compact dimensions help ensure clean routing in panel assemblies.
Key specs include a 60A amperage rating, 1-1/4" trade size, through-feed back box style, cast aluminum material, and overall dimensions of 7.06 in long, 5.75 in high, and 5.13 in wide with a weight of 3.45 lb. The UPC for procurement is 782274070506, and the enclosure is suited for ordinary/non-hazardous locations.
Based on the provided specifications, ARD46 is classified for Ordinary/Non-Hazardous Locations. For hazardous or classified areas, additional enclosure ratings or different enclosures designed for those conditions would be required to meet regulatory and safety standards.
ARD46 provides a rugged, corrosion-resistant cast aluminum body, a through-feed design that simplifies cable routing, and a compact footprint that reduces panel real estate. These features translate to faster commissioning, fewer parts, and lower maintenance needs in typical manufacturing and control-panel applications.
The combination of a durable aluminum enclosure, through-feed capability, and standard 1-1/4" terminations reduces the number of required enclosures and fittings, accelerating installation and minimizing downtime. The enclosure’s corrosion resistance also lowers maintenance intervals, contributing to a lower total cost of ownership over the equipment lifecycle.
