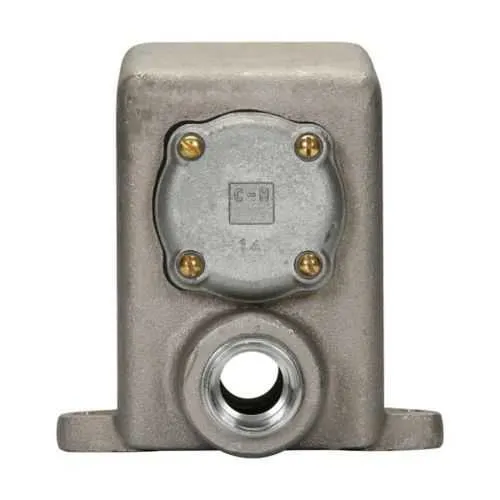

Eaton ARD56 Back Box - Ordinary/Non-Hazardous Locations
Part Number: ARD56
Quick Summary
The Eaton ARD56 back box provides rugged enclosure for 60A through-feed connections in industrial control panels. Installing unreliable metal enclosures can lead to wiring damage, ingress, and costly downtime; ARD56 mitigates these risks with a cast aluminum body and a through-feed design that secures terminations and simplifies routing. Although the data specifies Ordinary/Non-Hazardous Locations, this enclosure remains a robust choice for standard factory environments where reliable mounting and tight fits matter for ongoing compliance. Its 1-1/2 inch trade size and compatible mounting options support fast integration with conduit and receptacle assemblies, delivering business value through reduced installation time and long-term maintenance predictability.
Product Information
Extended Description
ARD56 Eaton Crouse-Hinds: Eaton Crouse-Hinds series ARD back box, 60A, Through feed, Cast aluminum, 1-1/2"
Product Name
Eaton Crouse-Hinds series ARD back box
Catalog Number
ARD56
Product Length/Depth
7.06 in
Product Height
5.75 in
Product Width
5.13 in
Product Weight
3.35 lb
UPC
782274070605
Area classification
Ordinary/Non-Hazardous Locations
Trade size
1-1/2"
Amperage Rating
60A
Back box style
Through feed
Material
Cast aluminum
60A amperage rating and through-feed design translate into reliable, low-resistance terminations in active panels. This improves uptime in vibration-prone environments by minimizing loosening risks and maintenance calls. The ARD56 is well-suited for control cabinets that require clean routing of conductors and secure terminal blocks in a compact footprint. Cast aluminum construction delivers excellent corrosion resistance while keeping weight manageable for field crews. This material choice supports ongoing performance in crowded industrial spaces where impact and abrasion are common. For installations near damp or corrosive processes, ARD56 provides durable enclosure integrity without adding excessive weight to assemblies. A 1-1/2 inch trade size offers broad compatibility with common fittings and conduits, reducing the need for adapters and custom components. This simplifies procurement and speeds mounting, especially in retrofit projects. A through-feed back box design minimizes exposed wiring terminals and provides a straightforward wiring path, which reduces training time for technicians and decreases wiring error rates. The Ordinary/Non-Hazardous Locations rating aligns with standard manufacturing and assembly lines, ensuring compliance with typical electrical codes while avoiding unnecessary certifications for non-hazardous environments. This combination supports predictable maintenance needs and helps OEMs realize faster project ROI.
Get a Quick Quote for a Eaton Crouse-Hinds ARD56
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds ARD56?
Enquire Now
FAQs
ARD56 uses a 1-1/2 inch trade size and a through-feed back box style with cast aluminum construction. Mounting should follow standard panel practices and align with commonly used conduit fittings. Ensure installation in ordinary locations and verify that panel openings accommodate the 7.06 in length, 5.75 in height, and 5.13 in width for a proper fit.
The ARD56 is rated for 60A with a 1-1/2 inch trade size. It features a through-feed back box design and a cast aluminum body. These specs support reliable terminations and straightforward wiring routes in standard factory enclosures, reducing thermal and resistance concerns during continuous operation.
No. The provided data specifies Ordinary/Non-Hazardous Locations for ARD56. It should not be used in hazardous environments unless the appropriate, certified enclosure is selected. Always consult the manufacturer’s literature for location-based approvals before deployment in sensitive facilities.
Area classification for ARD56 is Ordinary/Non-Hazardous Locations. The dataset does not list IP, CE, or SIL certifications. For compliance, verify with Eaton’s official datasheets and your local electrical codes to confirm any additional approvals required for your installation environment.
Durable cast aluminum provides corrosion resistance and long service life, reducing maintenance frequency. The through-feed design simplifies wiring and terminations, lowering installation time and potential errors. These factors collectively contribute to lower total cost of ownership and faster project deployment in standard manufacturing settings.
