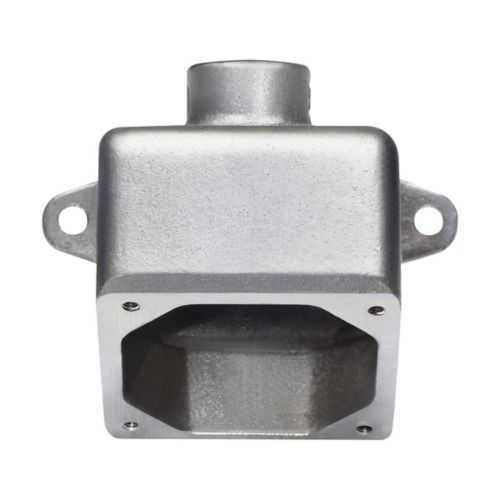

Eaton Crouse-Hinds ARE13 Back Box - 20A/30A, One Hub
Part Number: ARE13
Quick Summary
ARE13 back box by Eaton Crouse-Hinds provides a rugged enclosure solution for 1/2" conduit circuits in control panels and industrial equipment. Installers face misalignment, corrosion, and limited service life in harsh environments; ARE13 mitigates these issues with a cast aluminum body and a single hub for straightforward installation. Area classification designates Ordinary/Non-Hazardous Locations, supporting safe use in typical facilities; this enclosure also aligns with standard electrical practices for dependable performance. With a compact footprint and robust construction, it delivers reliable protection and faster wiring, reducing field downtime and lifecycle costs. Its 3.63 in length, 4.5 in height, and 4.25 in width complement 1/2" trade size and 20A/30A rating for versatile mounting.
Product Information
Extended Description
ARE13 Eaton Crouse-Hinds: Eaton Crouse-Hinds series ARE back box, 20A/30A, One hub, Cast aluminum, 1/2"
Product Name
Eaton Crouse-Hinds series ARE back box
Catalog Number
ARE13
Product Length/Depth
3.63 in
Product Height
4.5 in
Product Width
4.25 in
Product Weight
1.2 lb
UPC
782274070704
Area classification
Ordinary/Non-Hazardous Locations
Trade size
1/2"
Amperage Rating
20A/30A
Back box style
One hub
Material
Cast aluminum
Feature: Cast aluminum enclosure. Business impact: Delivers corrosion resistance and light-weight durability for tough industrial environments, reducing maintenance cycles and extending service life. Application: Ideal for control panels and equipment housings where frequent handling occurs. Feature: One hub back box style. Business impact: Simplifies conduit routing and minimizes penetrations, shortening installation time and lowering labor costs. Application: Receptacle and automation panel assemblies in crowded electrical rooms. Feature: 1/2" trade size and 20A/30A rating. Business impact: Supports common branch circuits with ample headroom, enabling flexible wiring schemes and safer overcurrent protection. Application: Machine wiring, motor starters, and control panel feeders. Feature: Dimensions and weight (3.63 in L x 4.5 in H x 4.25 in W; 1.2 lb). Business impact: Compact footprint fits tight panel spaces while maintaining rigidity, facilitating faster mounting and improved thermal performance. Application: Space-constrained automation enclosures and field deployments in non-hazardous zones. Feature: Area classification Ordinary/Non-Hazardous Locations. Business impact: Aligns with standard industrial safety requirements, reducing compliance risk. Application: General purpose enclosure use in manufacturing and processing facilities. The combination of these features supports reliable installation of ARE13 back boxes in industrial automation and electrical infrastructure projects, with reduced total cost of ownership over time.
Get a Quick Quote for a Eaton Crouse-Hinds ARE13
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds ARE13?
Enquire Now
FAQs
ARE13 installs with a single hub for 1/2" conduit. Mount the enclosure to a flat panel surface, seal any openings to protect against dust, and route wiring through the hub. Verify circuit rating is within 20A/30A and ensure correct clearance for panel door operation to minimize heat buildup and mechanical stress.
ARE13 is ideal for control panels, receptacle back box applications, and general automation equipment in ordinary, non-hazardous locations. Its cast aluminum body and compact 3.63 in x 4.5 in x 4.25 in footprint support installations in space-constrained enclosures and protect wiring terminations in demanding environments.
ARE13 measures 3.63 inches in length, 4.5 inches in height, and 4.25 inches in width, with a weight of approximately 1.2 pounds. It supports a 1/2 inch trade size and 20A/30A amperage rating, making it suitable for compact, reliable enclosure solutions.
ARE13 is classified for Ordinary/Non-Hazardous Locations. It is not described for hazardous area use and does not specify IP ratings in the provided data. For hazardous-duty applications, consult the manufacturer’s datasheet or Eaton technical support for alternative enclosures with appropriate ratings.
The cast aluminum construction provides corrosion resistance and durability, reducing replacement frequency and maintenance, while its lightweight design simplifies handling and installation. A smaller form factor can lower material handling time and enable faster field deployment in standard assembly lines, contributing to lower total cost of ownership over the enclosure’s lifecycle.
