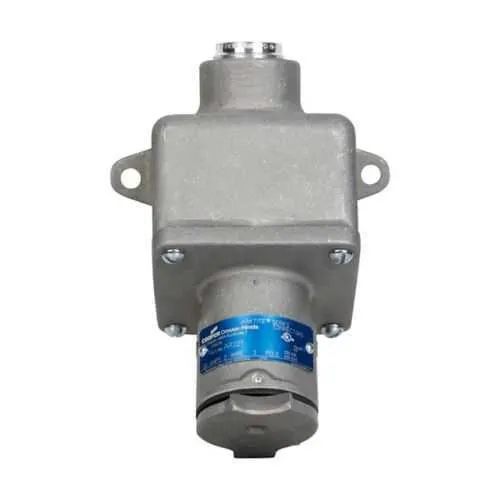

Eaton Crouse-Hinds ARE2212 Receptacle Assembly - 600 Vac
Part Number: ARE2212
Quick Summary
ARE2212 receptacle assembly delivers rugged, 20A power connections for Arktite enclosures used in industrial control panels. Engineers often struggle with corrosion resistance and limited maintenance access in compact cabinets, especially when equipment must perform across multiple markets. This ARE2212 offers copper-free aluminum construction, Style 1 grounding, and a 50–400 Hz rating up to 600 Vac/250 Vdc, making it suitable for ordinary/non-hazardous locations. By aligning with standard cataloging and installation practices, it supports reliable panel performance while reducing lifecycle costs and downtime for maintenance teams.
Product Information
Extended Description
ARE2212 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Arktite ARE receptacle assembly, 20A, Two-wire, two-pole, 50-400 Hz, Style 1, Copper-free aluminum,Spring door, 3/4",600 Vac/250 Vdc
Product Name
Eaton Crouse-Hinds series Arktite ARE receptacle assembly
Catalog Number
ARE2212
Product Length/Depth
4.875 in
Product Height
6.875 in
Product Width
4.25 in
Product Weight
2 lb
UPC
782274040486
Area classification
Ordinary/Non-Hazardous Locations
Amperage Rating
20A
Voltage rating
600 Vac/250 Vdc
Frequency rating
50 to 400 Hz
Grounding type
Style 1
Configuration
Two-wire, two-pole
Trade size
3/4"
Receptacle style
Spring door
Material
Copper-free aluminum
Eaton Crouse-Hinds ARE2212 3D drawing
Arktite 20A Metallic Plugs, Receptacles and Connectors catalog page
IF 352 - Model M72 Arktite Plugs and Receptacles
IF 352 - Model M72 Arktite Plugs and Receptacles
Eaton Specification Sheet - ARE2212
The ARE2212 utilizes a 20A amperage rating with a 600 Vac/250 Vdc voltage capability and a broad 50 to 400 Hz frequency window, ensuring reliable operation across diverse international power systems and panel configurations. This translates into lower redesign costs and fewer part substitutions when expanding into new markets, while maintaining compliance with typical industrial control-panel standards. Copper-free aluminum construction delivers strong corrosion resistance and a lighter weight, reducing installation time and handling risk in tight enclosures and overhead installations. The spring door receptacle style enhances dust exclusion and simplifies field servicing, contributing to reduced maintenance downtime and longer service intervals. The two-wire, two-pole configuration with a 3/4 inch trade size fits standard conduit fittings, streamlining gasketed enclosure integration and ensuring consistent electrical performance in Arktite environments. Style 1 grounding provides clear, dependable grounding paths, improving fault response and operator safety without complex retrofits. Together, these features support faster commissioning, lower total cost of ownership, and robust reliability for harsh or non-hazardous industrial locations.
Get a Quick Quote for a Eaton Crouse-Hinds ARE2212
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds ARE2212?
Enquire Now
FAQs
ARE2212 is a two-wire, two-pole receptacle designed for Arktite enclosure applications with a 3/4" trade size. It uses copper-free aluminum, a spring door, and Style 1 grounding to provide a secure, maintenance-friendly fit. It supports standard conduit fittings and aligns with typical installation practices for Arktite systems, reducing field modification needs and ensuring consistent performance.
ARE2212 is rated for 20A and 600 Vac / 250 Vdc, with a frequency range of 50 to 400 Hz. The area classification is Ordinary/Non-Hazardous Locations, indicating suitability for common industrial environments without hazardous conditions. The combination of these ratings supports safe operation across regional electrical networks while maintaining straightforward compliance during design reviews.
Yes. The ARE2212 supports a broad 50–400 Hz range and a 600 Vac/250 Vdc rating, making it compatible with many global power systems. The 3/4" trade size aids conduit compatibility, and the copper-free aluminum construction offers corrosion resistance, which is beneficial for installations in diverse climates and standards without requiring extensive adaptation.
The spring door design simplifies access for routine maintenance while helping to exclude dust and contaminants. Copper-free aluminum reduces corrosion risk in harsh environments, extending service intervals. The 20A, 600 Vac/250 Vdc rating ensures consistent performance under typical industrial loads, and the straightforward two-wire, two-pole configuration minimizes wiring complexity during upgrades or panel refurbishments.
A comprehensive set of resources is available, including 3D CAD drawings, Arktite catalog pages, installation instruction sheets, and the Eaton Specification Sheet for ARE2212. These documents assist with design, procurement, installation, and maintenance planning, and ensure correct application in non-hazardous environments.
