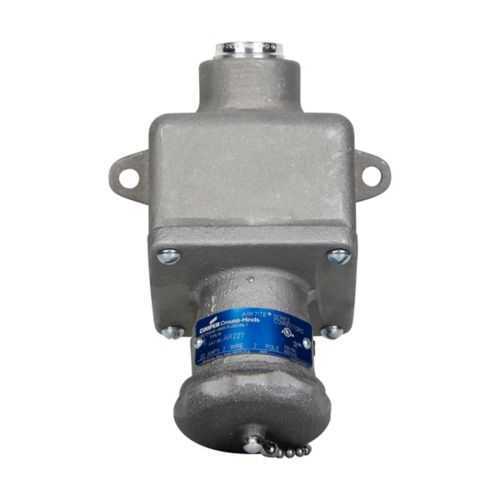

Eaton Crouse-Hinds ARE2272 Receptacle Assembly - NEMA 4
Part Number: ARE2272
Quick Summary
ARE2272 receptacle assembly is a rugged, weather-resistant connector for Arktite enclosures in industrial facilities. When downtime or corrosion threatens reliability, this model's copper-free aluminum construction and threaded cap help reduce maintenance and seal failures. It carries NEC/CEC compliance, a NEMA 4 enclosure rating, and a broad 50–400 Hz operating range, ensuring safe operation across diverse environments. Designed for 20A circuits at up to 600 Vac (250 Vdc) and a 3/4" trade size, it streamlines installation and enhances long-term uptime for control panels, motors, and power distribution in harsh settings.
Product Information
Extended Description
ARE2272 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Arktite ARE receptacle assembly, 20A, Two-wire, two-pole, 50-400 Hz, Style 1, Copper-free aluminum, Threaded cap, 3/4", 600 Vac/250 Vdc
Product Name
Eaton Crouse-Hinds series Arktite ARE receptacle assembly
Catalog Number
ARE2272
Product Length/Depth
4.875 in
Product Height
6.875 in
Product Width
4.25 in
Product Weight
2 lb
UPC
782274072104
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4
Amperage Rating
20A
Voltage rating
600 Vac/250 Vdc
Frequency rating
50 to 400 Hz
Grounding type
Style 1
Configuration
Two-wire, two-pole
Trade size
3/4"
Receptacle style
Threaded cap
Material
Copper-free aluminum
Eaton Crouse-Hinds ARE2272 3D drawing
Arktite 20A Metallic Plugs, Receptacles and Connectors catalog page
IF 1338 - Arktite 20A Plugs, Receptacles and Cord Connectors
IF 1338 - Arktite 20A Plugs, Receptacles and Cord Connectors
Eaton Specification Sheet - ARE2272
Feature: Amperage and voltage ratings of 20A and 600 Vac / 250 Vdc with a 50–400 Hz range. Business Impact: Supports wide industrial power distribution with robust compatibility, reducing wiring complexity and the need for multiple receptacles. Application: Ideal for ARE receptacles in Arktite enclosures across machine shops and manufacturing lines. Feature: Copper-free aluminum construction. Business Impact: Lightweight yet corrosion-resistant, lowering handling effort and maintenance costs while extending service life. Application: Field installations in humid or outdoor environments where weight savings matter. Feature: Threaded cap receptacle style with Style 1 grounding. Business Impact: Provides secure sealing and reliable grounding, reducing leak paths and improving safety margins. Application: Outdoor enclosures and damp locations in process environments. Feature: Configuration two-wire, two-pole with a 3/4" trade size. Business Impact: Simplifies wiring topology and accelerates panel builds, lowering labor time per installation. Application: Control panels and power distribution blocks using standard 3/4" fittings. Feature: NEMA 4 rating and NEC/CEC compliance. Business Impact: Delivers proven environmental protection and regulatory alignment, minimizing risk and rework. Application: Ordinary/Non-Hazardous locations in industrial facilities requiring compliant, dependable receptacles.
