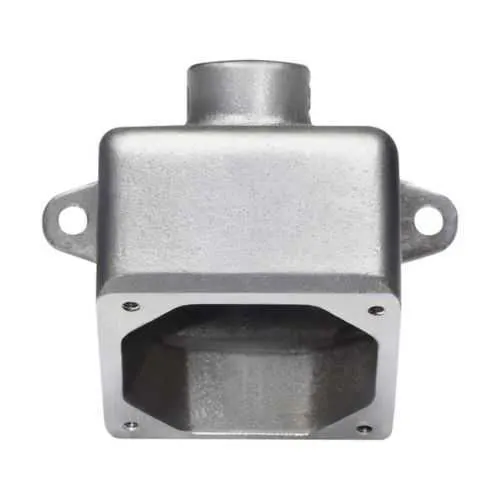

Eaton Crouse-Hinds ARE23 Back Box - 20A/30A Cast Aluminum
Part Number: ARE23
Quick Summary
ARE23 back box is an Eaton Crouse-Hinds enclosure that houses and protects electrical receptacles in industrial environments. In harsh plant settings, limited space and difficult wiring access can slow projects and drive downtime. This back box is intended for ordinary/non-hazardous locations and supports 20A/30A receptacles with a single hub, delivering a durable, lightweight solution that speeds installation. Its cast aluminum construction withstands exposure to dust, moisture, and temperature cycling, helping maintenance teams meet schedules while minimizing spare parts. By combining reliable protection with a compact footprint, the ARE23 adds measurable value to industrial control panels and electrical infrastructure projects.
Product Information
Extended Description
ARE23 Eaton Crouse-Hinds: Eaton Crouse-Hinds series ARE back box, 20A/30A, One hub, Cast aluminum, 3/4"
Product Name
Eaton Crouse-Hinds series ARE back box
Catalog Number
ARE23
Product Length/Depth
3.63 in
Product Height
4.5 in
Product Width
4.25 in
Product Weight
1.15 lb
UPC
782274070803
Area classification
Ordinary/Non-Hazardous Locations
Trade size
3/4"
Amperage Rating
20A/30A
Back box style
One hub
Material
Cast aluminum
Feature: Cast aluminum construction provides rugged durability and corrosion resistance in factory environments. Business Impact: reduces maintenance costs and extends service life of enclosures in harsh conditions. Application: ideal for outdoor or washdown areas within industrial enclosures where reliability matters. Feature: Amperage rating of 20A/30A supports common receptacle configurations without overdesign. Business Impact: enables flexible circuit planning and compliant wiring layouts, reducing parts variance. Application: suitable for control panels and equipment racks requiring standard commercial or industrial receptacles. Feature: Trade size of 3/4" and back box style One hub streamline wiring. Business Impact: simplifies conduit routing and minimizes components, slashing installation time. Application: fast integration into existing conduit networks for automation and instrumentation. Feature: Area classification Ordinary/Non-Hazardous Locations and material suitability. Business Impact: ensures regulatory alignment and safe operation in typical factory floors. Application: ideal for non-hazardous zones across manufacturing and processing facilities. Feature: Compact dimensions (4.25 in W x 4.5 in H x 3.63 in D) and weight (1.15 lb) enable easy handling and quick mounting. Business Impact: reduces crane or ladder time during installations and supports denser panel layouts. Application: compatible with Arktite receptacle back-box configurations and standard mounting schemes.
Get a Quick Quote for a Eaton Crouse-Hinds ARE23
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds ARE23?
Enquire Now
FAQs
ARE23 is designed for a 3/4 inch trade size and features a single hub, enabling straightforward conduit entry and routing. When integrating into existing panels, verify conduit alignment with the back box mounting pattern and ensure the enclosure doorway provides adequate clearance for receptacle terminations. The lightweight cast aluminum construction simplifies handling during retrofit installations and reduces overall labor time.
Key specifications include a 20A/30A amperage rating, 3/4" trade size, and one hub back box configuration. These factors determine compatibility with common receptacles and wiring schemes in industrial automation panels. The 4.25 x 4.5 x 3.63 inch footprint supports compact layouts, while the 1.15 lb weight facilitates installation without specialized equipment.
Yes. ARE23 is classified for Ordinary/Non-Hazardous Locations, making it appropriate for factory floors, standard assembly lines, and typical processing environments. Its cast aluminum construction adds durability against incidental exposure to dust and moisture, helping maintain long-term performance without requiring special enclosure materials or coatings.
ARE23 uses cast aluminum, which offers good corrosion resistance and structural rigidity. This reduces the likelihood of enclosure deformation or degradation during routine maintenance, contributing to longer service intervals and lower replacement costs. The single hub design also minimizes seal points, supporting easier cleaning and inspection.
By combining a lightweight form factor, standard 3/4 inch conduit compatibility, and a dependable 20A/30A rating, ARE23 accelerates installation and reduces part variety. The result is faster panel builds, fewer field adjustments, and improved uptime, delivering measurable ROI through lower labor costs and fewer extension leads or adapters.
