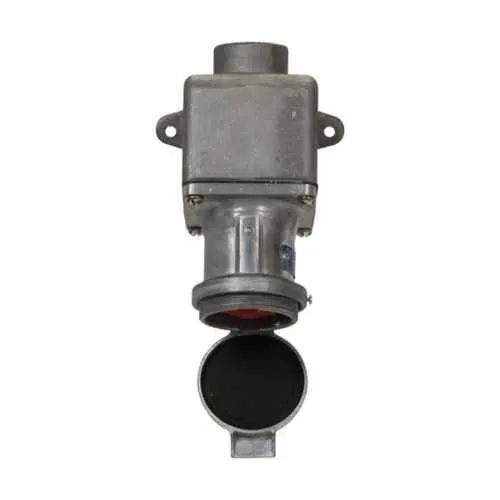

Eaton ARE3423S22 Receptacle Assembly - NEMA 4
Part Number: ARE3423S22
Quick Summary
ARE3423S22 receptacle assembly delivers rugged, field-ready power connections for industrial control panels and Arktite enclosures. Engineers often wrestle with corrosion, miswiring, and wiring schemes that slow startups; this unit simplifies installation while meeting tough site demands. It carries a NEMA 4 rating for weather resistance, NEC/CEC compliance, and suitability for Ordinary/Non-Hazardous Locations, aligning with global codes. For procurement teams, the copper-free aluminum construction, spring door design, and 1 inch trade size translate to lower replacement costs, easier maintenance, and quicker commissioning. The 50 to 400 Hz range supports US/IEC equipment and multi-region installations, enabling broader equipment compatibility and smoother project execution.
Product Information
Extended Description
ARE3423S22 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Arktite ARE receptacle assembly, 30A, Three-wire, four-pole, 50-400 Hz, Style 2, Copper-free aluminum, Spring door, Reversed contacts, 1", 600 Vac/250 Vdc
Product Name
Eaton Crouse-Hinds series Arktite ARE receptacle assembly
Catalog Number
ARE3423S22
Product Length/Depth
5.44 in
Product Height
7.19 in
Product Width
4.25 in
Product Weight
2.95 lb
UPC
662276930797
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4
Amperage Rating
30A
Voltage rating
600 Vac/250 Vdc
Frequency rating
50 to 400 Hz
Grounding type
Style 2
Configuration
Three-wire, four-pole
Trade size
1"
Receptacle style
Spring door
Material
Copper-free aluminum
Special features
Reversed contacts
Arktite 30A Metallic Plugs, Receptacles and Connectors catalog page
Arktite 30A Metallic Plugs, Receptacles and Connectors catalog page
IF 352 - Model M72 Arktite Plugs and Receptacles
Eaton Specification Sheet - ARE3423S22
Feature 1: Amperage and voltage rating — 30A and 600 Vac/250 Vdc. Business impact: supports high-current loads safely, reducing the risk of overcurrent events and unplanned downtime. Application: ideal for control panels, automation racks, and Arktite assemblies in industrial environments where reliable power distribution matters. Application tone: aligns with long-life, code-compliant installations. Feature 2: Frequency range — 50 to 400 Hz. Business impact: accommodates both North American and international equipment, streamlining global projects and spare parts inventories. Application: critical for multi-region machinery and modular systems in manufacturing plants. Feature 3: Material and construction — copper-free aluminum. Business impact: lightweight yet corrosion-resistant, lowering installation effort and lifecycle costs. Application: outdoor or harsh-location installations where material compatibility and durability are essential. Feature 4: Receptacle style and features — spring door with reversed contacts. Business impact: enhances sealing against dust and moisture while simplifying field wiring and maintenance. Application: robust connectors for equipment that requires quick access without compromising reliability. Feature 5: Grounding and configuration — Style 2 grounding, three-wire four-pole, 1" trade size. Business impact: straightforward grounding pathways reduce commissioning time and improve safety. Application: standard Arktite configurations in control cabinets and enclosures. Feature 6: Certifications and compliance — NEMA 4, NEC/CEC, Ordinary/Non-Hazardous Locations. Business impact: ensures regulatory alignment and safer operation in typical plant environments. Application: suitable for a wide range of industrial facilities, minimizing compliance risk and accelerating approvals.
Get a Quick Quote for a Eaton Crouse-Hinds ARE3423S22
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds ARE3423S22?
Enquire Now
FAQs
ARE3423S22 uses a standard 1 inch trade size and a three-wire, four-pole configuration with Style 2 grounding. For installation, align the receptacle with mating plugs, secure with appropriate mounting hardware, and ensure the spring door seals properly to maintain the enclosure’s environmental rating. Verify voltage and frequency ratings (600 Vac/250 Vdc, 50–400 Hz) match your equipment and local codes (NEC/CEC). Regularly inspect for reversed contacts and ensure copper-free aluminum construction remains free of corrosion.
The ARE3423S22 is rated for 30A at 600 Vac/250 Vdc and operates across 50–400 Hz, making it compatible with a broad range of industrial equipment. Its copper-free aluminum body reduces weight and corrosion risk, while the spring door and reversed contacts enhance reliability and ease of maintenance in challenging environments.
Yes. ARE3423S22 carries a NEMA 4 rating and is designed for Ordinary/Non-Hazardous Locations, offering weather resistance suitable for outdoor cabinets, control rooms adjacent to outdoor processes, and other demanding sites. The copper-free aluminum construction further improves durability in corrosive atmospheres, while the Arktite platform supports robust field wiring.
ARE3423S22 complies with NEC/CEC standards and is rated for NEMA 4 enclosures. It is suitable for Ordinary/Non-Hazardous Locations, ensuring regulatory alignment for typical industrial operations and simplifying project approvals and audits.
The copper-free aluminum construction minimizes corrosion-related maintenance, and the spring door with reversed contacts reduces wear and downtime during inspections. With a 1 inch trade size and straightforward three-wire four-pole wiring, commissioning is faster, field replacements are simpler, and overall lifecycle costs are reduced for plant operators.
