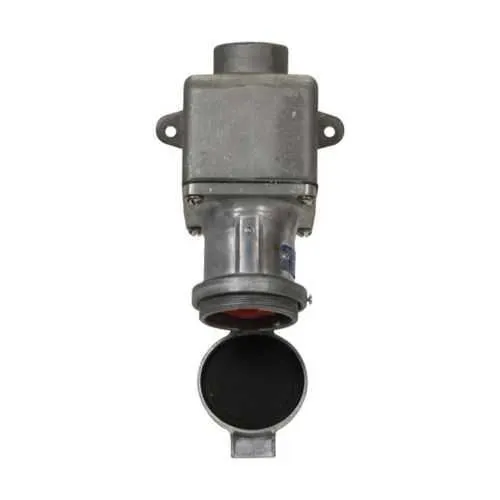

Eaton Crouse-Hinds ARE3513 Receptacle Assembly - NEMA 4
Part Number: ARE3513
Quick Summary
ARE3513 receptacle assembly provides rugged, 30A electrical interconnection for Arktite enclosures in industrial settings. Engineers often struggle with connectors that fail in harsh environments or require frequent maintenance; this model addresses those issues with robust, field-ready design. It carries a NEMA 4 rating for weather resistance, and aligns with NEC/CEC standards, while its area classification suits ordinary/non-hazardous locations. The copper-free aluminum housing lowers weight and corrosion risk, and the spring door design simplifies sealing and service. With a 1-inch trade size, five-wire five-pole configuration, and a 600 Vac/250 Vdc rating, ARE3513 supports reliable, compliant power distribution with reduced lifecycle costs.
Product Information
Extended Description
ARE3513 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Arktite ARE receptacle assembly, 30A, Five-wire, five-pole, 50-400 Hz, Style 1, Copper-free aluminum, Spring door, 1", 600 Vac/250 Vdc
Product Name
Eaton Crouse-Hinds series Arktite ARE receptacle assembly
Catalog Number
ARE3513
Product Length/Depth
4.875 in
Product Height
6.875 in
Product Width
4.25 in
Product Weight
2.95 lb
UPC
782274040615
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4
Amperage Rating
30A
Voltage rating
600 Vac/250 Vdc
Frequency rating
50 to 400 Hz
Grounding type
Style 1
Configuration
Five-wire, five-pole
Trade size
1"
Receptacle style
Spring door
Material
Copper-free aluminum
Eaton Crouse-Hinds ARE3513 3D drawing
Arktite 30A Metallic Plugs, Receptacles and Connectors catalog page
IF 352 - Model M72 Arktite Plugs and Receptacles
Eaton Specification Sheet - ARE3513
Feature: 30A current rating with 600 Vac/250 Vdc voltage capability. Business Impact: Supports demanding industrial loads with a single connector, reducing the number of variants and accelerating wiring design. Application: Ideal for Arktite enclosure wiring where reliable power feeds are essential. Feature: Five-wire, five-pole configuration with Style 1 grounding. Business Impact: Ensures correct grounding and simplifies wiring schemes, lowering mis-wiring risk and commissioning time. Application: Suitable for control panels and outdoor equipment requiring robust grounding integrity. Feature: Copper-free aluminum construction and 1" trade size. Business Impact: Lighter assemblies resist corrosion and ease field handling, cutting installation labor and shipping costs. Application: Beneficial in humid or coastal environments where aluminum resists corrosion. Feature: Spring door receptacle style and NEMA 4 rating. Business Impact: Provides weatherproof protection and dust sealing, reducing maintenance cycles and downtime. Application: Outdoor or harsh-location installations in ordinary/non-hazardous areas. Feature: Compact dimensions—4.875" L, 6.875" H, 4.25" W—and weight of 2.95 lb. Business Impact: Delivers a sturdy yet space-efficient footprint, simplifying panel layouts and mounting. Application: Fits standard ARE-series mounting spaces and 1" conduit routing. Feature: Availability of CAD drawings, installation sheets, and specification documentation. Business Impact: Speeds design reviews and startup, improves accuracy and compliance. Application: Useful for engineering approvals and procurement workflows.
