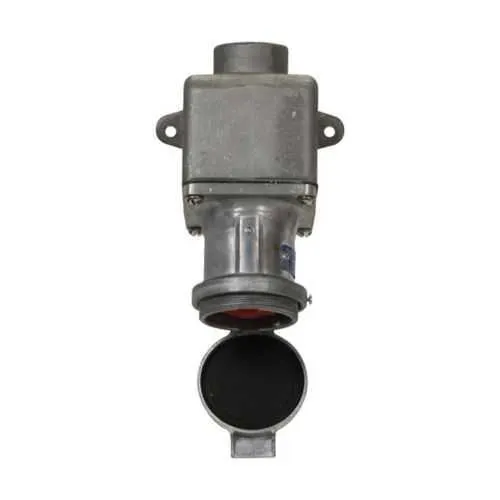

Eaton Crouse-Hinds ARE3523 Receptacle Assembly - NEMA 4
Part Number: ARE3523
Quick Summary
ARE3523 receptacle assembly by Eaton Crouse-Hinds delivers rugged electrical connectivity for Arktite installations in harsh industrial environments. Field teams often struggle with durable sealing, wiring errors, and downtime when equipment isn’t built for Arktite enclosures. This design meets NEC/CEC standards, carries a NEMA 4 enclosure rating, and is suitable for ordinary/non-hazardous locations, with copper-free aluminum that reduces weight without sacrificing strength. At 30A and a voltage range of 600 Vac/250 Vdc across 50–400 Hz, the ARE3523 also features a 1" trade size and a spring-door receptacle style, delivering quick maintenance, reliable performance, and lower life-cycle costs for industrial facilities and equipment builders.
Product Information
Extended Description
ARE3523 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Arktite ARE receptacle assembly, 30A, Four-wire, five-pole, 50-400 Hz, Style 2, Copper-free aluminum, Spring door, 1", 600 Vac/250 Vdc
Product Name
Eaton Crouse-Hinds series Arktite ARE receptacle assembly
Catalog Number
ARE3523
Product Length/Depth
4.875 in
Product Height
6.875 in
Product Width
4.25 in
Product Weight
2.95 lb
UPC
782274040622
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4
Amperage Rating
30A
Voltage rating
600 Vac/250 Vdc
Frequency rating
50 to 400 Hz
Grounding type
Style 2
Configuration
Four-wire, five-pole
Trade size
1"
Receptacle style
Spring door
Material
Copper-free aluminum
Eaton Crouse-Hinds ARE3523 3D drawing
Arktite 30A Metallic Plugs, Receptacles and Connectors catalog page
IF 352 - Model M72 Arktite Plugs and Receptacles
Eaton Specification Sheet - ARE3523
Feature: 30A at 600 Vac/250 Vdc with a broad 50–400 Hz range. Business Impact: Enables safe power distribution across diverse motors, drives, and control panels while maintaining a healthy safety margin. Application: Ideal for Arktite receptacle assemblies in manufacturing lines and packaging equipment where uptime matters. Feature: Copper-free aluminum construction. Business Impact: Reduces weight and improves corrosion resistance, easing installation and extending enclosure life. Application: Suitable for harsh environments and installations in ordinary locations seeking long service intervals. Feature: Four-wire, five-pole configuration with Style 2 grounding and a 1" trade size. Business Impact: Simplifies wiring schematics, enhances grounding reliability, and minimizes field miswiring during panel assembly. Application: Panel-mounted distribution and control enclosures in industrial plants. Feature: Spring door receptacle style. Business Impact: Provides a positive seal with fast maintenance access, reducing dust ingress and service time. Application: Enclosures requiring reliable protection in non-hazardous environments. Feature: NEMA Rating 4 and NEC/CEC compliance for Ordinary/Non-Hazardous Locations. Business Impact: Reduces regulatory risk and guarantees consistent performance in standard facilities. Application: Machinery enclosures, control panels, and equipment housings in manufacturing and facilities environments.
Get a Quick Quote for a Eaton Crouse-Hinds ARE3523
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds ARE3523?
Enquire Now
FAQs
ARE3523 is designed for Arktite receptacle assemblies in ordinary and non-hazardous locations. It supports 30A at 600 Vac/250 Vdc and operates across 50–400 Hz, making it ideal for industrial machinery, panels, and control enclosures where reliable power connections are required without exposure to hazardous environments.
ARE3523 complies with NEC/CEC standards and carries a NEMA 4 rating, ensuring ingress protection against dust and water in non-hazardous settings. This combination supports safe operation in typical industrial facilities, aligns with regulatory expectations, and reduces risk during audits or inspections.
The copper-free aluminum construction delivers a lighter, corrosion-resistant receptacle suitable for long-term installations. It reduces weight on mounting surfaces, improves durability in harsh environments, and lowers maintenance costs by resisting galvanic corrosion common in exposed enclosures.
ARE3523 uses a 1" trade size and a four-wire, five-pole configuration with Style 2 grounding, simplifying wiring and grounding practices. When planning layouts, ensure panel cutouts and mounting provisions accommodate the 4.875 in length, 6.875 in height, and 4.25 in width, and confirm enclosure compatibility with Arktite standards.
Documentation is available through Eaton’s resources, including a 3D CAD drawing package, installation sheets IF352, and the Eaton specification sheet for ARE3523. Access to these assets supports accurate modeling, rapid installation planning, and reduced field errors during deployment.
