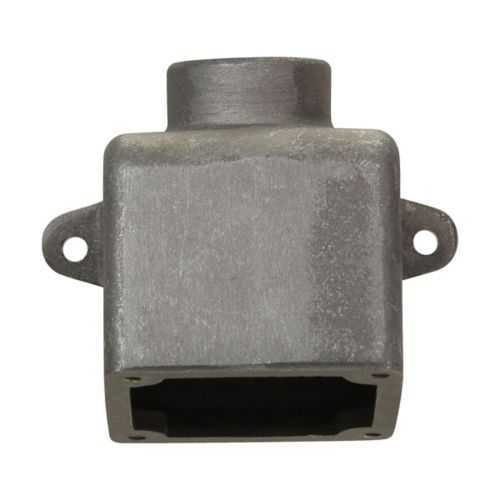

Eaton ARE36 Back Box - 60A, One Hub, Cast Aluminum
Part Number: ARE46
Quick Summary
The Eaton ARE36 back box protects wiring enclosures in industrial control panels and outdoor installations. Engineers often grapple with weathering, corrosion, and wiring layouts that cause downtime and costly service calls. Key certifications include area classification for Ordinary/Non-Hazardous Locations, underscoring its general-duty suitability for commercial and light-industrial environments. Built as a rugged cast aluminum back box, ARE36 delivers durable protection without adding excessive weight. Its 60A amperage rating and 1" trade size support common branch-circuit applications, while the one-hub design simplifies cable routing and terminations. For projects using Arktite receptacles and standard enclosure ecosystems, ARE36 integrates smoothly, helping maintain system integrity and faster commissioning while reducing lifecycle costs.
Product Information
Extended Description
ARE46 Eaton Crouse-Hinds: Eaton Crouse-Hinds series ARE back box, 60A, One hub, Cast aluminum, 1-1/4"
Product Name
Eaton Crouse-Hinds series ARE back box
Catalog Number
ARE46
Product Length/Depth
4.69 in
Product Height
5.69 in
Product Width
4.25 in
Product Weight
2.05 lb
UPC
782274071107
Area classification
Ordinary/Non-Hazardous Locations
Trade size
1-1/4"
Amperage Rating
60A
Back box style
One hub
Material
Cast aluminum
The ARE36 back box uses a 60A rating and a 1" trade size to provide reliable capacity for standard control circuits while maintaining a compact footprint suitable for panel enclosures. This combination reduces the need for oversized boxes and helps optimize panel real estate, which translates to faster wiring and less material waste during installation. The one hub design simplifies routing, minimizes knockouts, and accelerates terminations, resulting in lower labor costs and quicker commissioning on site. Cast aluminum construction delivers durability, corrosion resistance, and robust mechanical protection in everyday industrial environments, improving long-term reliability and reducing maintenance downtime. With its ordinary/non-hazardous area classification, ARE36 fits broad commercial and light-industrial applications, while compatible with Arktite receptacle ecosystems, ensuring seamless integration into existing enclosure layouts. The enclosure’s dimensions (4.69 in L × 5.69 in H × 4.25 in W) and weight (2.05 lb) strike a practical balance between ease of handling and protective performance, enabling simpler installation in tight panels and behind equipment racks. Access to Eaton’s specification sheets and catalogs supports precise selection, compliant installation, and future expansion planning.
Get a Quick Quote for a Eaton Crouse-Hinds ARE46
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds ARE46?
Enquire Now
FAQs
ARE36 measures 4.69 in long, 5.69 in high, 4.25 in wide and weighs 2.05 lb. It uses a 1" trade size and a one hub back box design, so ensure panel cutouts match these dimensions and mounting hardware is aligned with the hub location. Refer to Eaton datasheets for mounting hole patterns and clearance.
ARE36 provides a 60A amperage rating within a cast aluminum back box, suitable for ordinary/non-hazardous locations. The one hub design simplifies wiring paths, while the robust aluminum construction offers mechanical protection and resistance to typical shop-floor conditions, supporting reliable operation in standard control-system installations.
ARE36 is listed for Ordinary/Non-Hazardous Locations, making it appropriate for general indoor and light-industrial environments. It is not specified for hazardous locations or extreme outdoor exposure. For outdoor use, verify environmental ratings and consider additional sealing or enclosure accessories per project requirements.
The listed certification is area classification: Ordinary/Non-Hazardous Locations. No additional certifications are stated in the provided data. Always consult the Eaton specification sheet for full compliance details and any regional standards applicable to your project.
The ARE36’s 60A rating, 1" trade size, and one-hub design reduce wiring complexity and labor time, contributing to quicker commissioning and lower field labor costs. Its cast aluminum construction enhances durability, lowering maintenance and replacement frequency. For procurement, downloadable spec sheets and catalogs support accurate sizing and long-term ROI calculations.
