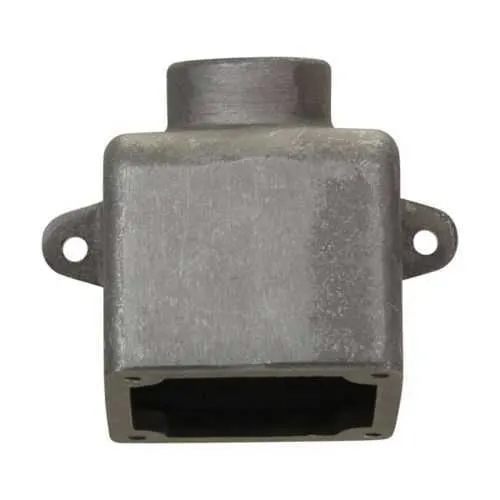

Eaton ARE56 Back Box - 60A, 1-1/2in Cast Aluminum
Part Number: ARE56
Quick Summary
ARE56 back box by Eaton provides a robust enclosure for 60A circuits in control panels and industrial installations. This compact housing addresses common field challenges like space constraints, corrosion resistance, and wiring access by delivering a durable cast aluminum body with a single hub. Classified for Ordinary/Non-Hazardous Locations, it offers reliable operation in typical factory environments while avoiding the complexity of harsher enclosures. The ARE56 integrates seamlessly with the Eaton Crouse-Hinds ARE back-box family, supporting standard 1-1/2" hubs and compatible receptacles. For procurement teams and OEMs, its predictable footprint and material compatibility reduce part variety, shorten install time, and improve spare-part planning, contributing to lower lifecycle costs and improved uptime.
Product Information
Extended Description
ARE56 Eaton Crouse-Hinds: Eaton Crouse-Hinds series ARE back box, 60A, One hub, Cast aluminum, 1-1/2"
Product Name
Eaton Crouse-Hinds series ARE back box
Catalog Number
ARE56
Product Length/Depth
4.69 in
Product Height
5.69 in
Product Width
4.25 in
Product Weight
1.95 lb
UPC
782274071206
Area classification
Ordinary/Non-Hazardous Locations
Trade size
1-1/2"
Amperage Rating
60A
Back box style
One hub
Material
Cast aluminum
Cast aluminum housing with a single hub delivers rugged durability and corrosion resistance in industrial environments. This translates to lower replacement costs and reduced maintenance cycles, improving overall uptime for equipment housed in control panels and machinery. The ARE56 is well-suited for ordinary locations in general manufacturing, where a strong physical enclosure is essential without the need for harsh-location certification. With a 60A amperage rating, ARE56 supports reliable current handling in compact enclosures. The business impact is simplified electrical design and fewer intermediate enclosures or adapters, saving panel space and procurement time while maintaining compliance with standard wiring practices. Engineers can deploy ARE56 in line with other Eaton Crouse-Hinds enclosures to streamline installation in new builds and plant refurbishments. One hub back box design reduces parts count and accelerates wiring entry during installation. This reduces labor time and training requirements for field technicians, delivering faster turnarounds on panel upgrades. In technical terms, it also simplifies integration with receptacle outlets and the Arktite back-box ecosystem. Dimensional footprint—4.69" length, 5.69" height, and 4.25" width—along with a weight of 1.95 lb, yields a compact enclosure that fits into tight panels without sacrificing protection. This balance of size and mass lowers shipping costs and makes field handling easier for teams, while still providing robust protection for wiring. Area classification Ordinary/Non-Hazardous Locations ensures suitability for standard industrial settings, easing regulatory considerations and procurement approvals. The ARE56’s compatibility with the standard ARE back-box family means inventory can be consolidated, improving purchasing efficiency and ensuring rapid replacement during maintenance windows.
Get a Quick Quote for a Eaton Crouse-Hinds ARE56
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds ARE56?
Enquire Now
FAQs
ARE56 is specified as a 1-1/2 inch trade size back box with a single hub, designed to accept standard ARE receptacles and conduit fittings within ordinary locations. The design aligns with Eaton Crouse-Hinds back-box families, simplifying selection and stocking for OEMs and maintenance teams. This compatibility reduces guesswork during panel design and speeds up wiring runs in control panels and enclosures.
ARE56 provides 4.69 inches of depth, 5.69 inches of height, and 4.25 inches of width, with a product weight of about 1.95 pounds. These compact measurements offer a snug footprint for crowded control panels while leaving room for wiring and connectors. The dimensions support straightforward enclosure selection during project scoping and procurement planning.
ARE56 is classified for Ordinary/Non-Hazardous Locations, which means it is intended for standard factory environments rather than hazardous areas. For installations requiring explosion protection or special certifications, consider alternative enclosures from Eaton's broader lineup. Always verify location classification and applicable codes before finalizing the panel design.
With a single hub design and cast aluminum body, ARE56 simplifies wiring entry and reduces hardware counts. The compact form factor helps technicians navigate tight panels, while the durable material minimizes maintenance interruptions. Integration with Eaton back-box accessories also accelerates refurbishment projects and ensures consistent performance across the plant.
Choosing ARE56 yields lower lifecycle costs through longer service life, reduced part variety, and fewer field replacements due to corrosion-resistant cast aluminum. Its 60A rating supports reliable service for typical machine applications, and standardization with other Eaton enclosures reduces procurement lead times and training overhead, delivering measurable maintenance and uptime benefits.
