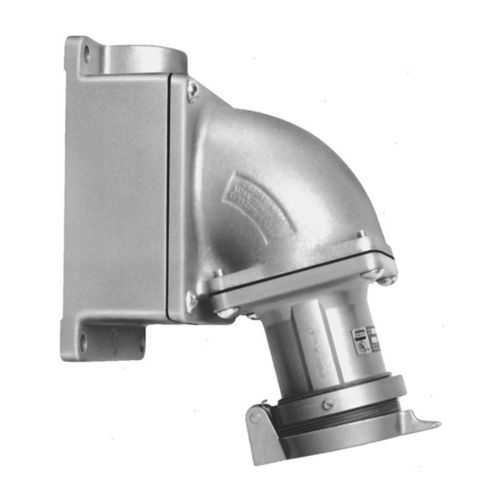

Eaton AREA10426 Area Receptacle Assembly - NEMA 4
Part Number: AREA10426
Quick Summary
AREA10426 area receptacle assembly from Eaton delivers rugged, safe power distribution for harsh industrial environments. Maintenance downtime and corrosion are common pain points when enclosures fail code tests or moisture-control. This design meets NEC/CEC standards, carries a NEMA 4 rating for dust and water resistance, and is classified for Ordinary/Non-Hazardous Locations. Coupled with copper-free aluminum construction and a spring door, AREA10426 offers easy installation, long service life, and predictable maintenance costs for panel builders and OEMs.
Product Information
Extended Description
AREA10426 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Arktite AREA receptacle assembly, 100A, Three-wire, four-pole, 50-400 Hz, Style 2, Copper-free aluminum, Spring door, 2", 600 Vac/250 Vdc
Product Name
Eaton Crouse-Hinds series Arktite AREA receptacle assembly
Catalog Number
AREA10426
Product Length/Depth
9.88 in
Product Height
10.5 in
Product Width
5.88 in
Product Weight
8.1 lb
UPC
782274041049
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4
Amperage Rating
100A
Voltage rating
600 Vac/250 Vdc
Frequency rating
50 to 400 Hz
Grounding type
Style 2
Configuration
Three-wire, four-pole
Trade size
2"
Receptacle style
Spring door
Material
Copper-free aluminum
Eaton Crouse-Hinds AREA10426 3D drawing
Arktite 100A Metallic Plugs, Receptacles and Connectors catalog page
IF 352 - Model M72 Arktite Plugs and Receptacles
Eaton Specification Sheet - AREA10426
Feature: The AREA10426 delivers 100A at 600 Vac/250 Vdc with a 50 to 400 Hz range, enabling it to power motors, drives, and lighting across diverse industrial lines. Business Impact: Reduces the need for multiple receptacles and simplifies spares, shortening project timelines and lowering stocking costs. Application: Manufacturing lines and panel assemblies needing a wide electrical envelope. Feature: Three-wire, four-pole configuration with Style 2 grounding provides robust fault management and safe operation. Business Impact: Improves protection for critical equipment and personnel, supporting compliant control circuits. Application: Motors, drives, and heavy machinery in harsh environments. Feature: Copper-free aluminum enclosure delivers reduced weight with excellent corrosion resistance. Business Impact: Eases transport and installation while extending service life in damp or outdoor locations. Application: Outdoor panels, wash-down areas, and exposed enclosures. Feature: Receptacle style with a spring door offers reliable sealing and easy maintenance access. Business Impact: Minimizes ingress of dust and moisture during service windows, lowering maintenance costs. Application: Industrial enclosures subject to frequent access. Feature: Area-rated for Ordinary/Non-Hazardous locations with NEC/CEC compliance and a NEMA 4 rating. Business Impact: Streamlines approvals, enhances safety, and reduces retrofit risk across facilities. Application: Facility-wide power distribution in non-hazardous environments.
Get a Quick Quote for a Eaton Crouse-Hinds AREA10426
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds AREA10426?
Enquire Now
FAQs
AREA10426 is designed for a 2" trade size with a compact footprint. It weighs 8.1 lb and measures 9.88 in (length) Ă— 10.5 in (height) Ă— 5.88 in (width). Use standard mounting holes and follow the IF 352 installation guidance for Arktite receptacles to ensure proper sealing and compliance in ordinary locations.
AREA10426 carries a NEMA 4 rating for dust and water resistance and is listed for NEC/CEC compliance, suitable for Ordinary/Non-Hazardous Locations. This combination supports safe operation in damp or wash-down environments while meeting common regulatory expectations for industrial power assemblies.
Configured as three-wire, four-pole with Style 2 grounding, AREA10426 provides a clear grounding path and proper fault management for motor and drive applications. This arrangement simplifies wiring schematics in control cabinets and supports reliable, code-compliant operation in demanding workplaces.
The copper-free aluminum construction reduces weight and enhances corrosion resistance, while the spring door design aids quick access and sealing during service. Together, these features lower maintenance frequency, extend service life, and improve reliability in challenging environments such as outdoor installations or wash-down areas.
Access a 3D CAD drawing package, Arktite catalog pages, installation instructions IF 352, and the AREA10426 specification sheet. These resources support fast design-in, accurate part selection, and compliant field installations, streamlining procurement and installation workflows.
