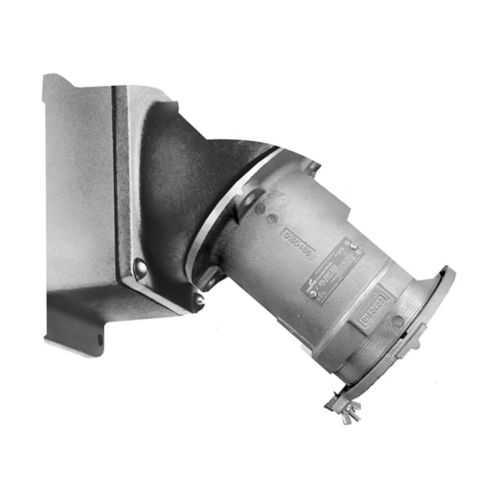

Eaton Crouse-Hinds AREA204126 Receptacle Assembly - NEC/CEC
Part Number: AREA204126
Quick Summary
Arktite AREA receptacle assembly provides rugged 200A power distribution for industrial cabinets and outdoor equipment. It addresses weatherproofing and safe termination challenges by featuring a spring door and reliable crimp/solder connections. With area classification for Ordinary/Non-Hazardous locations, NEMA 3R enclosure rating, and NEC/CEC compliance, it reduces regulatory risk. Designed for long service life in demanding environments, it supports quick integration with standard Arktite accessories and broad motor-control gear. This combination delivers measurable value by reducing maintenance downtime and ensuring regulatory compliance across typical industrial installations.
Product Information
Extended Description
AREA204126 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Arktite AREA receptacle assembly, 200A, Four-wire, four-pole, 50-400 Hz, Style 1, Copper-free aluminum, Spring door, Crimp/solder, 2", 600 Vac/250 Vdc, 0.75"
Product Name
Eaton Crouse-Hinds series Arktite AREA receptacle assembly
Catalog Number
AREA204126
Product Length/Depth
15.63 in
Product Height
14.44 in
Product Width
8.38 in
Product Weight
19.6 lb
UPC
782274041728
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
3R
Amperage Rating
200A
Voltage rating
600 Vac/250 Vdc
Frequency rating
50 to 400 Hz
Grounding type
Style 1
Configuration
Four-wire, four-pole
Trade size
2"
Receptacle style
Spring door
Termination style
Crimp/solder
Wire well size
0.75"
Material
Copper-free aluminum
Arktite 200A Metallic Plugs, Receptacles and Connectors catalog page
IF 853 - Arktite AR Series, Model 80 200A/400A
IF 853 - Arktite AR Series, Model 80 200A/400A
Eaton Specification Sheet - AREA204126
Feature: The AREA204126 delivers a 200A rating with a 600 Vac / 250 Vdc supply and a broad 50–400 Hz window. Business impact: Enables a single, high-load distribution point, reducing the need for multiple feeders and simplifying maintenance. Application: ideal for outdoor enclosures and heavy automation panels in manufacturing facilities. Feature: Copper-free aluminum housing provides excellent corrosion resistance while keeping weight down. Business impact: lowers handling costs during installation and minimizes long-term maintenance in harsh environments. Application: outdoor systems, damp locations, and coastal facilities. Feature: Receptacle style with a spring door facilitates quick access while protecting terminals from dust, moisture, and debris. Business impact: speeds service calls and reduces wear on components. Application: field installations and routine maintenance in control cabinets. Feature: Termination style crimp/solder and a 0.75" wire well support secure, reliable field terminations. Business impact: improves electrical integrity and lowers rework risk. Application: high-connectivity panels and feeders in demanding industrial settings. Feature: Area classification Ordinary/Non-Hazardous Locations and NEMA 3R rating ensure compliant operation in non-hazardous environments. Business impact: mitigates regulatory risk and simplifies procurement for standard facilities. Application: general industrial panels and outdoor installations. Feature: 2" trade size and 4-wire, four-pole configuration enable straightforward wiring and compatibility with common motor-control equipment. Business impact: reduces installation time and improves system scalability. Application: power distribution for motors, drives, and automation hardware in plants.
Get a Quick Quote for a Eaton Crouse-Hinds AREA204126
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds AREA204126?
Enquire Now
FAQs
AREA204126 uses a crimp/solder termination method, providing secure, vibration-resistant connections suitable for fixed wiring in harsh environments. The copper-free aluminum housing keeps weight manageable for installers, while the 0.75" wire well accommodates typical conductors. Use recommended crimp tools and follow industry best practices to ensure reliable, code-compliant terminations in outdoor and industrial panels.
AREA204126 is designed for Ordinary/Non-Hazardous locations with a NEMA 3R enclosure rating, delivering weather resistance and protection against dust and moisture. This makes it suitable for outdoor enclosures, wet-damp areas, and exposed facilities. Its spring door helps maintain a sealed interior, reducing corrosion risk and downtime due to environmental exposure.
With a 200A amperage rating and a 600 Vac/250 Vdc voltage rating, AREA204126 supports high-load power distribution across a broad frequency range of 50–400 Hz. This makes it compatible with many industrial motors, drives, and controls, simplifying panel design and reducing the need for multiple feeders in automation applications.
AREA receptacle assemblies are compatible with standard Arktite accessories documented in Eaton catalogs and installation sheets. For AREA204126, refer to the Arktite catalog page and IF853 instruction sheets for installation guidelines and compatible coupling components. This compatibility supports streamlined field upgrades and scalable power distribution in evolving facilities.
Using AREA204126 can reduce maintenance downtime due to its durable copper-free aluminum construction and reliable crimp/solder terminations. The design supports long service life in non-hazardous environments, helping facilities lower lifecycle costs, minimize unscheduled outages, and simplify compliance with NEC/CEC and NEMA 3R standards across standard industrial installations.
