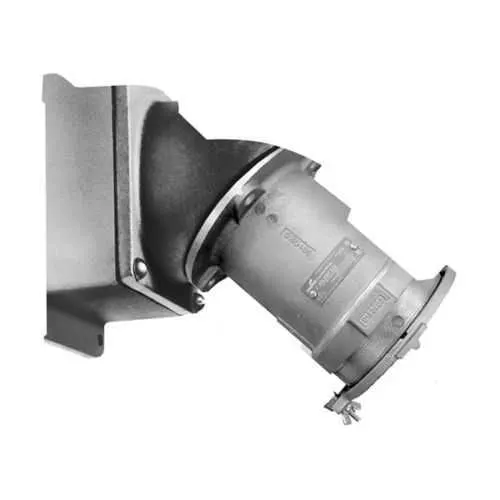

Eaton AREA20416 Receptacle Assembly - 200A, 600 Vac
Part Number: AREA20416
Quick Summary
AREA20416 receptacle assembly from Eaton Crouse-Hinds enables robust power distribution in demanding industrial installations. Maintenance downtime, miswiring risk, and corrosion are common pain points when servicing high-amperage, multi-wire systems in harsh sites. This ARKTITE solution uses copper-free aluminum construction and a Style 1 grounding, delivering durable performance in Ordinary/Non-Hazardous Locations while simplifying field installation. With a 200A, four-wire, four-pole design and a spring-door receptacle, it supports quick access and secure operation in control panels and power centers. The 2 inch trade size, 50 to 400 Hz compatibility, and crimp/solder termination further streamline wiring and service, translating to higher uptime and lower lifecycle costs for industrial facilities.
Product Information
Extended Description
AREA20416 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Arktite AREA receptacle assembly, 200A, Four-wire, four-pole,50-400 Hz, Style 1, Copper-free aluminum, Spring door, Crimp/solder, 2", 600 Vac/250 Vdc, 0.56"
Product Name
Eaton Crouse-Hinds series Arktite AREA receptacle assembly
Catalog Number
AREA20416
Product Length/Depth
15.63 in
Product Height
14.44 in
Product Width
8.38 in
Product Weight
19.6 lb
UPC
782274087955
Area classification
Ordinary/Non-Hazardous Locations
Amperage Rating
200A
Voltage rating
600 Vac/250 Vdc
Frequency rating
50 to 400 Hz
Grounding type
Style 1
Configuration
Four-wire, four-pole
Trade size
2"
Receptacle style
Spring door
Termination style
Crimp/solder
Wire well size
0.56"
Material
Copper-free aluminum
Arktite 200A Metallic Plugs, Receptacles and Connectors catalog page
IF 853 - Arktite AR Series, Model 80 200A/400A
IF 853 - Arktite AR Series, Model 80 200A/400A
Eaton Specification Sheet - AREA20416
Feature → Business Impact → Application: The AREA20416 uses a 200A, four-wire, four-pole configuration to deliver high-current capability with reliable grounding, reducing the risk of overheating and mis-wiring in critical feeders. This directly improves efficiency in control panels and MCCs by allowing robust, code-compliant distribution while minimizing restart times after maintenance. Application: Control panels, motor control centers, and large power distribution hubs in manufacturing facilities benefit from fast, secure connections and predictable performance. Feature → Business Impact → Application: Copper-free aluminum housing provides corrosion resistance and structural durability without adding excessive weight, lowering installation fatigue and long-term maintenance costs in harsh environments. Application: Outdoor or factory floors where exposure to dust and moisture is common. Feature → Business Impact → Application: Spring door receptacle design enables quick access and secure closure, streamlining field servicing and reducing maintenance downtime during routine inspections. Application: Routine electrical checks and panel upgrades. Feature → Business Impact → Application: Crimp/solder termination delivers reliable, vibration-resistant connections, minimizing loosening risks in high-vibration environments. Application: Heavy equipment, conveyors, and machine tools. Feature → Business Impact → Application: Wire well size of 0.56" supports organized, plug-friendly wiring with easier field terminations, improving install speed and reducing mis-wiring. Application: 2" trade size installations in compact enclosures. Feature → Business Impact → Application: Wide frequency range 50–400 Hz and voltage ratings up to 600 Vac / 250 Vdc enable compatibility with motor drives, control systems, and power distribution networks across industrial sectors. Application: Motors, drives, and mixed-power panels.
Get a Quick Quote for a Eaton Crouse-Hinds AREA20416
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds AREA20416?
Enquire Now
FAQs
AREA20416 is designed for straightforward field wiring with a 2" trade size and crimp/solder termination. Ensure proper enclosure clearance, route conductors to the wire well, secure the receptacle with compatible mounting hardware, and verify 50–400 Hz operation while respecting the Ordinary/Non-Hazardous area classification. Use the spring door for rapid access during inspections and testing.
AREA20416 provides a 200A amperage rating, 600 Vac / 250 Vdc voltage ratings, and supports a frequency range of 50 to 400 Hz. This makes it suitable for high-power feeders, motor drives, and control circuits common in industrial environments, while maintaining a four-wire, four-pole configuration for proper grounding.
AREA20416 is specified for Ordinary/Non-Hazardous Locations and uses copper-free aluminum for durability and corrosion resistance. While not rated as a specialized outdoor enclosure, its Arktite design provides robust performance in demanding indoor settings and semi-exposed areas where environmental conditions are managed to meet non-hazardous classifications.
The receptacle assembly is classified for Ordinary/Non-Hazardous Locations and is designed around Arktite AREA specifications. It combines a copper-free aluminum body, spring-door receptacle, and a four-wire, four-pole configuration to meet typical factory and process plant installation requirements while enabling compliant power distribution.
The spring-door design, reliable crimp/solder terminations, and copper-free aluminum construction contribute to faster installation, easier servicing, and reduced replacement needs. These features translate to lower maintenance downtime, improved uptime for critical lines, and a favorable total cost of ownership in manufacturing, processing, and other high-demand facilities.
