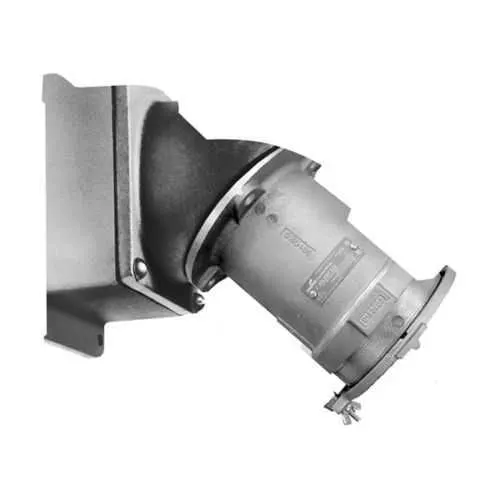

Eaton AREA20417 Receptacle Assembly 3R Enclosure
Part Number: AREA20417
Quick Summary
AREA20417 is a receptacle assembly for high-current industrial wiring in non-hazardous locations. Engineers frequently struggle with durable terminations, field adaptability, and serviceability in demanding environments; AREA20417 addresses these issues with a copper-free aluminum body, a spring door, and crimp/solder termination. This design aligns with NEC/CEC standards and carries a NEMA 3R enclosure, delivering reliable protection in typical panel and outdoor settings. With ratings of 200 A, 600 Vac/250 Vdc, and a broad 50–400 Hz range, it supports demanding electrical distributions while keeping installation straightforward. By prioritizing robust construction and standardized interfaces, facilities gain installation efficiency, reduced lifecycle costs, and easier maintenance planning when using Arktite AREA components.
Product Information
Extended Description
AREA20417 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Arktite AREA receptacle assembly, 200A, Four-wire, four-pole, 50-400 Hz, Style 1, Copper-free aluminum, Spring door, Crimp/solder, 2-1/2", 600 Vac/250 Vdc, 0.56"
Product Name
Eaton Crouse-Hinds series Arktite AREA receptacle assembly
Catalog Number
AREA20417
Product Length/Depth
15.63 in
Product Height
14.44 in
Product Width
8.38 in
Product Weight
19.6 lb
UPC
782274041445
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
3R
Amperage Rating
200A
Voltage rating
600 Vac/250 Vdc
Frequency rating
50 to 400 Hz
Grounding type
Style 1
Configuration
Four-wire, four-pole
Trade size
2-1/2"
Receptacle style
Spring door
Termination style
Crimp/solder
Wire well size
0.56"
Material
Copper-free aluminum
