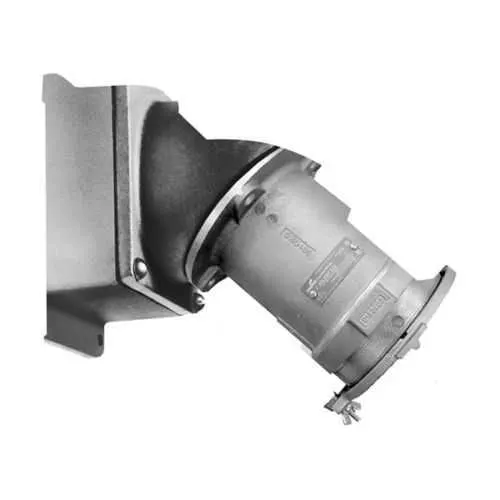

Eaton AREA20426 Receptacle Assembly - NEC/CEC 3R
Part Number: AREA20426
Quick Summary
AREA20426 is a rugged receptacle assembly used for industrial power distribution in Arktite AREA enclosures. It addresses the common challenge of maintaining secure terminations in demanding environments where downtime is costly and safety is paramount. This unit carries NEC/CEC compliance and a NEMA 3R rating, supporting reliable outdoor or indoor use. With a 200A capacity and 600 Vac/250 Vdc rating across a 50–400 Hz range, it is well-suited for a wide range of industrial applications. By leveraging copper-free aluminum construction and a spring door, it delivers long-term durability while enabling faster, safer installations and reduced lifecycle costs. Secondary benefits include compatibility with crimp/solder termination and a 2" trade size for streamlined field wiring.
Product Information
Extended Description
AREA20426 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Arktite AREA receptacle assembly, 200A, Three-wire, four-pole, 50-400 Hz, Style 2, Copper-free aluminum, Spring door, Crimp/solder, 2", 600 Vac/250 Vdc, 0.56"
Product Name
Eaton Crouse-Hinds series Arktite AREA receptacle assembly
Catalog Number
AREA20426
Product Length/Depth
15.63 in
Product Height
14.44 in
Product Width
8.38 in
Product Weight
19.6 lb
UPC
782274041506
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
3R
Amperage Rating
200A
Voltage rating
600 Vac/250 Vdc
Frequency rating
50 to 400 Hz
Grounding type
Style 2
Configuration
Three-wire, four-pole
Trade size
2"
Receptacle style
Spring door
Termination style
Crimp/solder
Wire well size
0.56"
Material
Copper-free aluminum
Arktite 200A Metallic Plugs, Receptacles and Connectors catalog page
IF 352 - Model M72 Arktite Plugs and Receptacles
IF 352 - Model M72 Arktite Plugs and Receptacles
Eaton Specification Sheet - AREA20426
Feature Area: 200A power handling with 600 Vac/250 Vdc ratings → Business Impact: Supports high-load industrial circuits while maintaining voltage flexibility and safety margins → Application: Heavy-duty motor control centers and equipment feeders in non-hazardous environments. Feature Area: 50 to 400 Hz frequency range → Business Impact: Enables diverse power standards and frequency conversion sites, reducing equipment rework → Application: Multimedia processing plants, HVAC systems, and process lines where frequency varies. Feature Area: Copper-free aluminum housing → Business Impact: Improves corrosion resistance and reduces weight, lowering maintenance costs and installation effort → Application: Outdoor installations and exposed enclosures. Feature Area: Spring door receptacle style → Business Impact: Quick access with secure sealing, minimizing downtime during maintenance → Application: Routine servicing in dusty or dirty plant floors. Feature Area: Crimp/solder termination → Business Impact: Faster, reliable terminations with long-term conductivity and strain relief → Application: Field wiring where vibration resistance is critical. Feature Area: 2" trade size and 0.56" wire well → Business Impact: Simplified routing and easier conductor management, improving install times by design → Application: Primary distribution within Arktite AREA assemblies. Feature Area: NEMA 3R and NEC/CEC compliance → Business Impact: Ensures regulatory conformity and safer outdoor performance, reducing compliance risk → Application: Non-hazardous industrial locations requiring robust enclosure integrity. Feature Area: Copper-free aluminum construction → Business Impact: Supports lighter assemblies with better heat dissipation, lowering handling risk and installation fatigue → Application: High-volume installation projects and OEM integration. Industry Insight: This AREA20426 model is designed for OEMs and contractors needing dependable, code-compliant connectors that simplify installation while delivering durable performance in harsh plant environments. In practice, it reduces installation time and lifecycle costs without compromising safety or reliability.
Get a Quick Quote for a Eaton Crouse-Hinds AREA20426
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds AREA20426?
Enquire Now
FAQs
AREA20426 uses crimp/solder termination and a 2" trade size for straightforward field wiring. Verify enclosure clearance, connect conductors to the termination points, secure the spring door, and ensure proper sealing to maintain NEMA 3R integrity. The unit’s copper-free aluminum body reduces weight during retrofit or new installations, improving handling times and safety.
AREA20426 is rated for 200A with a voltage rating of 600 Vac / 250 Vdc and supports a frequency range of 50 to 400 Hz. It is configured as three-wire, four-pole with Style 2 grounding. Termination is via crimp/solder, and the assembly is designed for a 2" trade size, enabling robust connections in industrial environments.
Yes. AREA20426 carries a NEMA 3R rating and is classified for Ordinary/Non-Hazardous Locations. This makes it appropriate for outdoor applications and indoor environments where protection from rain, dust, and incidental moisture is needed, while remaining compatible with NEC/CEC standards.
AREA20426 complies with NEC/CEC standards and carries a NEMA 3R rating for enclosure protection. Its area classification is Ordinary/Non-Hazardous, aligning with typical industrial facility requirements and reducing regulatory risk during audits or safety reviews.
The spring door design, copper-free aluminum housing, and durable termination methods reduce maintenance downtime and corrosion-related costs. Quick field wiring and reliable terminations enhance uptime, lower labor hours for service calls, and extend the service life of power distribution infrastructure in busy facilities.
