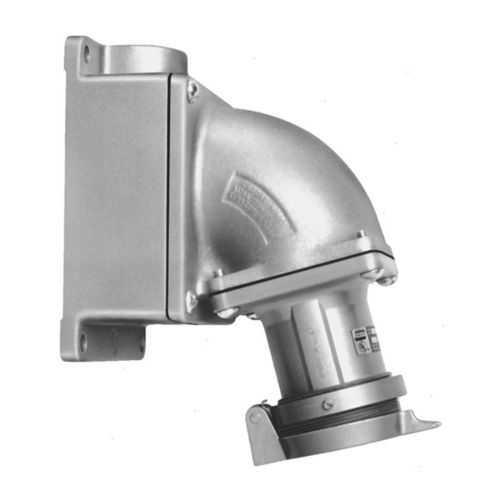

Eaton AREA6323 Receptacle Assembly - Arktite AREA, NEMA 4
Part Number: AREA6323
Quick Summary
AREA6323 is a rugged Arktite AREA receptacle assembly for industrial electrical panels. Engineers often struggle with corrosion resistance and safe, fast installation in harsh environments. It is certified for Ordinary/Non-Hazardous Locations, meets NEC/CEC standards, and carries a NEMA 4 rating for weatherproof service. The design pairs copper-free aluminum with a compact 1" trade size and spring door, delivering durable power delivery while reducing maintenance downtime. This combination supports reliable operation in facility panels and offers clear business value through broad compatibility and streamlined installation. Designed for industrial environments, AREA6323 supports 60A circuits and a wide frequency range, helping engineers meet project schedules and budget targets.
Product Information
Extended Description
AREA6323 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Arktite AREA receptacle assembly, 60A, Two-wire, three-pole, 50-400 Hz, Style 2, Copper-free aluminum, Spring door, 1", 600 Vac/250 Vdc
Product Name
Eaton Crouse-Hinds series Arktite AREA receptacle assembly
Catalog Number
AREA6323
Product Length/Depth
8.88 in
Product Height
9.44 in
Product Width
5.88 in
Product Weight
7.1 lb
UPC
782274040813
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4
Amperage Rating
60A
Voltage rating
600 Vac/250 Vdc
Frequency rating
50 to 400 Hz
Grounding type
Style 2
Configuration
Two-wire, three-pole
Trade size
1"
Receptacle style
Spring door
Material
Copper-free aluminum
Eaton Crouse-Hinds AREA6323 3D drawing
Arktite 60A Metallic Plugs, Receptacles and Connectors catalog page
IF 352 - Model M72 Arktite Plugs and Receptacles
Eaton Specification Sheet - AREA6323
Copper-free aluminum construction reduces weight and resists corrosion, easing handling during installation and extending enclosure life. This material choice also lowers maintenance costs by minimizing galling and deterioration in harsh industrial environments. For Arktite AREA receptacle assemblies, the copper-free alloy translates into durable operation in panels, outdoor enclosures, and wash-down locations. The AREA6323 delivers 60A capacity with a 600 Vac/250 Vdc rating across 50 to 400 Hz, enabling flexible power distribution. That broad electrical envelope supports motors, drives, and feeders without overmatching components or requiring frequent replacements. This specification set makes it suitable for mixed-utility facilities where equipment may operate on varying frequencies. Configured as two-wire, three-pole with a Style 2 grounding method, AREA6323 offers straightforward wiring and reliable fault paths. A 1 inch trade size simplifies mounting into standard panels and back boxes, reducing custom fabrication needs. The combination supports quick field terminations and consistent electrical clearances across installations. Rated NEMA 4 and classified for Ordinary/Non-Hazardous Locations, AREA6323 withstands dust, splashing water, and routine washdowns. This weatherproof capability helps meet regulatory expectations while preserving uptime in challenging environments. Having NEC/CEC alignment further assures compatibility with global electrical codes during project procurement. Spring door receptacle design enables secure closure and rapid maintenance access, cutting service time in the field. Dimensions and weight—8.88 in long, 9.44 in high, 5.88 in wide, and 7.1 lb—facilitate space planning. CAD drawings, catalogs, and datasheets are readily available to accelerate engineering and field installation.
Get a Quick Quote for a Eaton Crouse-Hinds AREA6323
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds AREA6323?
Enquire Now
FAQs
AREA6323 is designed for Arktite AREA receptacles and similar 1" trade size enclosures. It supports a 60A, 600 Vac/250 Vdc, 50–400 Hz, two-wire, three-pole configuration with copper-free aluminum and Style 2 grounding. It carries a NEMA 4 rating and is suitable for Ordinary/Non-Hazardous locations. When specifying, reference the AREA6323 catalog page and available CAD drawings to ensure a precise fit in your panel or enclosure.
AREA6323 aligns with NEC/CEC standards and carries a NEMA 4 weatherproof rating, along with Ordinary/Non-Hazardous area classification. These certifications help ensure code compliance, safe operation in typical industrial environments, and reduced regulatory risk for panel builds and field installations. They also support cross-border procurement where NEC/CEC conformance is required.
Install AREA6323 into a 1" trade-size mounting point using the two-wire, three-pole configuration. Connect to the circuit per the wiring diagram, secure the spring door, and confirm 600 Vac/250 Vdc rating. Verify mechanical fit and clearances, then perform insulation and continuity tests to confirm proper operation before commissioning the panel.
Yes. AREA6323’s NEMA 4 weatherproof rating and Ordinary/Non-Hazardous area classification make it suitable for dusty, wet, and wash-down environments. For best results, mount in a compliant enclosure, maintain seals, and follow the NEC/CEC wiring practices to preserve the integrity of the weatherproof rating.
AREA6323 delivers long-term value through corrosion-resistant, copper-free aluminum construction that reduces maintenance and replacement costs. Its 60A, 600 Vac/250 Vdc capability lowers component count and stocking needs, while quick wiring and a spring door save field labor time, accelerating project schedules and improving overall lifecycle efficiency.
