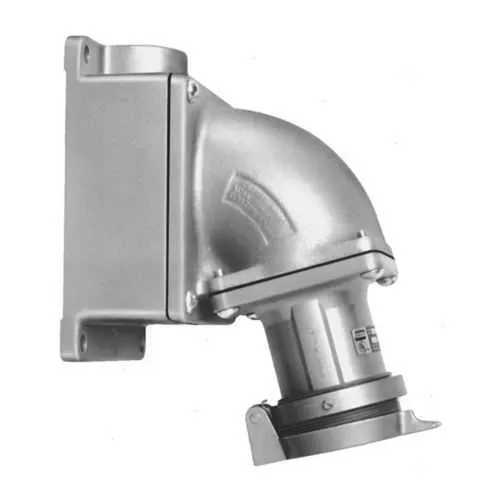

Eaton AREA6324 Receptacle Assembly - NEMA 4, 60A
Part Number: AREA6324
Quick Summary
AREA6324 receptacle assembly from Eaton provides durable, safe connections for Arktite enclosures in non-hazardous locations. The challenge is eliminating corrosion risk, improper grounding, and slow, error-prone installation in rugged industrial environments. Certified to NEMA 4 and NEC/CEC standards and suited for ordinary/non-hazardous areas, AREA6324 delivers reliable performance in demanding applications. With copper-free aluminum construction and a spring-door receptacle, it speeds installation, reduces maintenance, and supports 60A circuits at up to 600 Vac/250 Vdc, aligning with common automation-panel requirements. This combination translates to lower lifecycle costs, safer operation, and faster project completion.
Product Information
Extended Description
AREA6324 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Arktite AREA receptacle assembly, 60A, Two-wire, three-pole, 50-400 Hz, Style 2, Copper-free aluminum, Spring door, 1-1/4", 600 Vac/250 Vdc
Product Name
Eaton Crouse-Hinds series Arktite AREA receptacle assembly
Catalog Number
AREA6324
Product Length/Depth
8.88 in
Product Height
9.44 in
Product Width
5.88 in
Product Weight
7.1 lb
UPC
782274040820
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4
Amperage Rating
60A
Voltage rating
600 Vac/250 Vdc
Frequency rating
50 to 400 Hz
Grounding type
Style 2
Configuration
Two-wire, three-pole
Trade size
1-1/4"
Receptacle style
Spring door
Material
Copper-free aluminum
Eaton Crouse-Hinds AREA6324 3D drawing
Arktite 60A Metallic Plugs, Receptacles and Connectors catalog page
IF 352 - Model M72 Arktite Plugs and Receptacles
Eaton Specification Sheet - AREA6324
Feature: Copper-free aluminum construction delivers robust corrosion resistance in damp or dusty areas. Business impact: extends service life and lowers maintenance costs, especially in ordinary locations where environmental exposure is frequent. Application: ideal for AREA6324 installations in Arktite enclosures. Feature: 60A rating with 600 Vac/250 Vdc capacity and 50–400 Hz compatibility. Business impact: enables reliable power distribution for heavy machinery and control systems, reducing the need for parallel feeds and simplifying panel design. Application: industrial automation panels requiring robust power interfaces.Feature: Two-wire, three-pole configuration with Style 2 grounding. Business impact: simplifies wiring schemes while ensuring proper grounding and safety. Application: standard control cabinet and machine wiring where clear, compliant connections are essential.Feature: Receptacle style with spring door. Business impact: protects contacts from dust and moisture ingress, lowering maintenance cycles and improving field reliability. Application: rugged installations in harsh environments.Feature: 1-1/4" trade size and copper-free aluminum body. Business impact: fits common panel cutouts while reducing overall weight and installation effort. Application: Arktite AREA enclosures and compatible wiring devices in non-hazardous locations.Feature: NEC/CEC compliance and NEMA 4 rating. Business impact: simplifies regulatory certification, enhances safety, and supports faster project approvals. Application: industrial automation environments demanding robust, code-compliant connections.
Get a Quick Quote for a Eaton Crouse-Hinds AREA6324
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds AREA6324?
Enquire Now
FAQs
AREA6324 is engineered for Arktite AREA enclosures and aligns with standard 1-1/4" trade-size cutouts. Its copper-free aluminum body and Spring door design make installation straightforward in ordinary non-hazardous locations while meeting NEC/CEC requirements and a NEMA 4 rating, ensuring a reliable fit with common industrial panels and control cabinets.
AREA6324 provides a 60A amperage rating with a voltage range of 600 Vac / 250 Vdc and supports frequencies from 50 to 400 Hz. The two-wire, three-pole configuration uses Style 2 grounding, delivering a robust power interface suitable for heavy-duty automation equipment and panels in non-hazardous environments.
Yes, AREA6324 is designed for rugged, non-hazardous settings and carries a NEMA 4 rating with NEC/CEC compliance. Its ordinary/non-hazardous area classification aligns with typical industrial automation deployments, providing dependable protection against dust and water ingress in controlled environments.
AREA6324 reduces labor time with a straightforward two-wire, three-pole wiring approach and a spring-door receptacle that protects contacts during installation. The copper-free aluminum body decreases weight and corrosion risk, lowering maintenance costs and downtime, while meeting key standards to accelerate regulatory approvals and project timelines.
Plan for routine visual inspections of the spring-door mechanism and contact interfaces, and verify secure grounding connections at least during periodic maintenance. The copper-free aluminum construction minimizes corrosion-related degradation, contributing to longer service life and lower replacement frequency in non-hazardous industrial environments.
