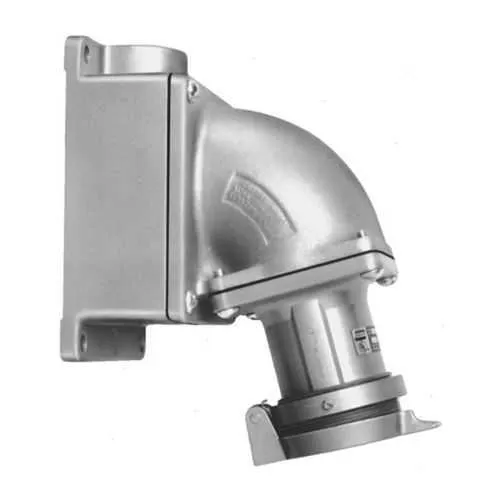

Eaton Crouse-Hinds AREA6414 Receptacle Assembly - NEMA 4
Part Number: AREA6414
Quick Summary
AREA6414 receptacle assembly from Eaton Crouse-Hinds provides rugged, plug-and-receptacle connectivity for outdoor industrial enclosures and control panels. In harsh locations, improper terminations and corrosion risks drive costly downtime and maintenance. This Arktite AREA unit is rated 60A and protected to NEMA 4 standards, certified for ordinary/non-hazardous locations under NEC/CEC. With a copper-free aluminum housing and a spring-door receptacle, it delivers reliable service and long-term cost savings, while enabling straightforward installation and compatibility with standard 1-1/4" trade-size interfaces.
Product Information
Extended Description
AREA6414 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Arktite AREA receptacle assembly, 60A, Four-wire, four-pole, 50-400 Hz, Style 1, Copper-free aluminum, Spring door, 1-1/4", 600 Vac/250 Vdc
Product Name
Eaton Crouse-Hinds series Arktite AREA receptacle assembly
Catalog Number
AREA6414
Product Length/Depth
8.88 in
Product Height
9.44 in
Product Width
5.88 in
Product Weight
7.1 lb
UPC
782274082103
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4
Amperage Rating
60A
Voltage rating
600 Vac/250 Vdc
Frequency rating
50 to 400 Hz
Grounding type
Style 1
Configuration
Four-wire, four-pole
Trade size
1-1/4"
Receptacle style
Spring door
Material
Copper-free aluminum
Eaton Crouse-Hinds AREA6414 3D drawing
Arktite 60A Metallic Plugs, Receptacles and Connectors catalog page
IF 352 - Model M72 Arktite Plugs and Receptacles
Eaton Specification Sheet - AREA6414
Copper-free aluminum housing delivers corrosion resistance and reduced weight, improving uptime in damp or outdoor environments while supporting sustainable design practices. This reduces maintenance cycles and replacement costs for field-installed connections in weather-exposed panels, enabling quicker service turns and lower total cost of ownership. The AREA6414 supports 60A, four-wire, four-pole configurations, which simplifies power distribution for motors and control circuits and enhances safety with a robust grounding scheme in demanding environments. The spring-door receptacle provides a sealed, secure closing that helps protect against dust ingress and moisture, extending component life and reducing field service calls. The 1-1/4" trade size and 50–400 Hz compatibility offer broad wiring flexibility, accelerating design wins and enabling standard interface compatibility across multiple projects. Its 600 Vac/250 Vdc rating aligns with present industrial power systems, ensuring reliable operation in non-hazardous locations per NEC/CEC. Available ARktite AREA accessories and CAD resources streamline installation and design processes, helping engineers meet project timelines with confidence.
Get a Quick Quote for a Eaton Crouse-Hinds AREA6414
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds AREA6414?
Enquire Now
FAQs
AREA6414 uses a 1-1/4" trade size interface and a spring-door receptacle design, simplifying mounting to common enclosure cutouts. Ensure compatible panel depth and proper gasket seals for NEMA 4 protection, then terminate with four-wire leads to the correct bus and grounding path. Refer to the 3D CAD drawing and installation sheets in downloads for exact mounting patterns and torque guidance.
AREA6414 is a 60A, four-wire, four-pole receptacle rated for 600 Vac / 250 Vdc and 50–400 Hz. It uses copper-free aluminum, Style 1 grounding, and a spring-door receptacle style. This combination supports robust power distribution for motors and equipment while meeting NEC/CEC standards in ordinary/non-hazardous locations.
Yes. AREA6414 carries a NEMA 4 rating and is classified for Ordinary/Non-Hazardous Locations. Its Arktite construction and sealing help withstand moisture and dust in outdoor or semi-exposed industrial environments, making it suitable for exterior panels, weatherproof enclosures, and non-hazardous process areas.
AREA6414 adheres to NEC/CEC standards and is rated NEMA 4 for weather resistance. The device is designed for ordinary/non-hazardous locations, aligning with industry requirements for safe, compliant power connections in industrial settings.
The copper-free aluminum housing reduces weight and corrosion risk, lowering maintenance intervals and replacement costs. Its robust NEMA 4 rating and reliable 60A four-wire configuration minimize downtime in weather-exposed panels, while standard interfaces and accessible CAD resources shorten design-to-install timelines, delivering faster project completion and improved lifecycle value.
