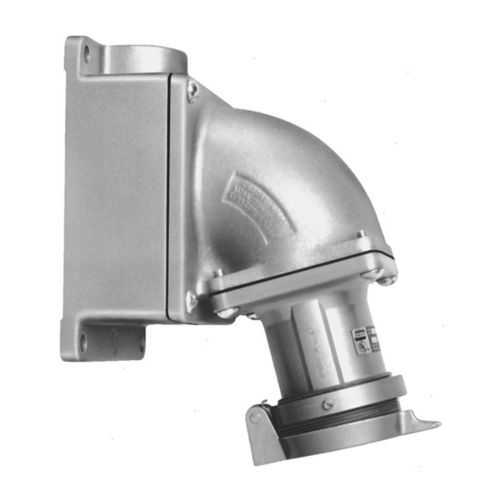

Eaton Crouse-Hinds AREA6414S22 Area Receptacle - NEMA 4
Part Number: AREA6414S22
Quick Summary
AREA6414S22 is a rugged area receptacle assembly designed for 60A industrial power connections in non-hazardous locations. Engineers often face installation complexity, inconsistent wiring configurations, and downtime when selecting heavy-duty connectors, making a reliable, code-compliant solution essential. It aligns with NEC/CEC standards and provides NEMA 4 protection for durability in ordinary environments, ensuring weather resistance and safe operation. The copper-free aluminum construction, spring-door design, and reversed contacts support long-term maintenance savings, while the 1-1/4" trade size and 50–400 Hz compatibility enable broad applicability across manufacturing, packaging, and process facilities, ultimately reducing lifecycle costs and boosting uptime.
Product Information
Extended Description
AREA6414S22 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Arktite AREA receptacle assembly, 60A, Four-wire, four-pole, 50-400 Hz, Style 1, Copper-free aluminum, Spring door, Reversed contacts, 1-1/4", 600 Vac/250 Vdc
Product Name
Eaton Crouse-Hinds series Arktite AREA receptacle assembly
Catalog Number
AREA6414S22
Product Length/Depth
8.88 in
Product Height
9.44 in
Product Width
5.88 in
Product Weight
7.1 lb
UPC
662276191860
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4
Amperage Rating
60A
Voltage rating
600 Vac/250 Vdc
Frequency rating
50 to 400 Hz
Grounding type
Style 1
Configuration
Four-wire, four-pole
Trade size
1-1/4"
Receptacle style
Spring door
Material
Copper-free aluminum
Special features
Reversed contacts
Arktite 60A Metallic Plugs, Receptacles and Connectors catalog page
Arktite 60A Metallic Plugs, Receptacles and Connectors catalog page
IF 352 - Model M72 Arktite Plugs and Receptacles
Eaton Specification Sheet - AREA6414S22
Feature 60A rating and 600 Vac/250 Vdc capability enables high-current, bidirectional power delivery for machine tooling and conveyors; Business Impact: reduces bottlenecks and improves safety in routine power connections; Application: large motors and process equipment in industrial facilities. Feature Four-wire, four-pole configuration with Style 1 grounding improves fault isolation and grounding reliability; Business Impact: enhances safety compliance and simplifies wiring schemes; Application: main distribution panels and subcircuits. Feature Copper-free aluminum construction provides corrosion resistance and lighter weight; Business Impact: lowers installation labor and maintenance costs; Application: outdoor or damp environments and long-term durability. Feature Spring-door and reversed contacts enhance protection and serviceability; Business Impact: reduces contact wear and misalignment in frequent plug-in cycles; Application: field service and maintenance-heavy operations. Feature Trade size 1-1/4" ensures compatibility with standard enclosures and raceways; Business Impact: accelerates procurement and retrofit projects; Application: Arktite systems and existing infrastructure. Feature Broad frequency range 50–400 Hz supports global power systems with a single solution; Business Impact: simplifies international deployments and conversion planning; Application: multi-site facilities and export-oriented operations.
Get a Quick Quote for a Eaton Crouse-Hinds AREA6414S22
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds AREA6414S22?
Enquire Now
FAQs
Follow the manufacturer’s IF 352 installation sheet and Eaton Arktite guidelines: verify 50–400 Hz compatibility, connect four-wire four-pole conductors with Style 1 grounding, ensure the enclosure is suitable for ordinary locations, and secure with standard mounting hardware to the 1-1/4" trade size region.
AREA6414S22 is rated for 60A and 600 Vac/250 Vdc, with a 50 to 400 Hz frequency range, four-wire four-pole configuration, and NEMA 4 protection for reliable use in non-hazardous environments.
Yes. The area classification is Ordinary/Non-Hazardous Locations, and the unit carries NEMA 4 protection, making it suitable for general industrial spaces that require durable, weather-resistant power connectors.
Copper-free aluminum construction reduces corrosion risk, the spring-door design protects contacts, and reversed contacts improve life and safety in frequent plug-in applications.
Access Eaton’s Arktite catalog pages, installation sheets (IF 352), and the AREA6414S22 specification sheet from Eaton’s site; reference the provided catalog PDFs for wiring, mounting, and compliance details.
