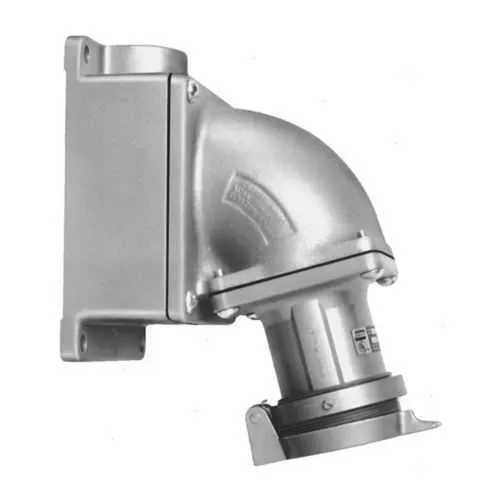

Eaton Crouse-Hinds AREA6415 receptacle assembly - NEMA 4
Part Number: AREA6415
Quick Summary
The Eaton Crouse-Hinds AREA6415 AREA receptacle assembly is a rugged 60A connection solution designed for Arktite enclosures in industrial facilities. In harsh production environments, engineers struggle with corrosion, moisture ingress, and complex wiring inside control panels. This receptacle assembly addresses those pain points with a copper-free aluminum body and a spring-door design that stays secure yet accessible for maintenance. It carries NEC/CEC compliance and a NEMA 4 rating, supporting safe operation in Ordinary/Non-Hazardous locations. By combining durable construction with straightforward installation, AREA6415 reduces downtime and extends service life. For panel builders and OEMs, it provides dependable, standards-aligned connectivity while enabling faster maintenance cycles and better lifecycle costs.
Product Information
Extended Description
AREA6415 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Arktite AREA receptacle assembly, 60A, Four-wire, four-pole, 50-400 Hz, Style 1, Copper-free aluminum, Spring door, 1-1/2", 600 Vac/250 Vdc
Product Name
Eaton Crouse-Hinds series Arktite AREA receptacle assembly
Catalog Number
AREA6415
Product Length/Depth
8.88 in
Product Height
9.44 in
Product Width
5.88 in
Product Weight
7.1 lb
UPC
782274040837
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4
Amperage Rating
60A
Voltage rating
600 Vac/250 Vdc
Frequency rating
50 to 400 Hz
Grounding type
Style 1
Configuration
Four-wire, four-pole
Trade size
1-1/2"
Receptacle style
Spring door
Material
Copper-free aluminum
Eaton Crouse-Hinds AREA6415 3D drawing
Arktite 60A Metallic Plugs, Receptacles and Connectors catalog page
IF 352 - Model M72 Arktite Plugs and Receptacles
Eaton Specification Sheet - AREA6415
Feature: 60A, 600 Vac/250 Vdc, 50 to 400 Hz capability → Business Impact: Supports broad industrial power profiles with a single receptacle, simplifying designs and reducing part counts. Application: Control panels and machinery enclosures requiring reliable, multi‑voltage compatibility. Feature: Four-wire, four-pole configuration → Business Impact: Ensures proper grounding and fault isolation, improving safety and compliance in harsh environments. Application: Heavy equipment wiring in process lines and packaging machinery. Feature: Copper-free aluminum construction → Business Impact: Delivers corrosion resistance and lighter weight, lowering maintenance costs and handling effort. Application: Outdoor or damp locations in food & beverage, steel, or chemical processing facilities. Feature: Spring door receptacle style → Business Impact: Quick access for maintenance and faster field service, reducing downtime during inspections. Application: Routine wiring checks and panel servicing in high‑throughput operations. Feature: 1-1/2" trade size with 8.88 in L, 9.44 in H, 5.88 in W dimensions → Business Impact: Clear, standardized fit within common Arktite enclosures, streamlining panel layout and reducing installation time. Application: OEM panels and retrofit projects in industrial facilities. Feature: NEMA 4 enclosure rating; NEC/CEC compliance; Ordinary/Non-Hazardous area classification → Business Impact: Ensures regulatory alignment and protection against dust, water ingress, and minor impacts, lowering risk and accelerating procurement approvals. Application: Enclosures in manufacturing floors, packaging lines, and general-purpose plants. Feature: 60A, 600 Vac/250 Vdc capability combined with 50–400 Hz operation → Business Impact: Future‑proofs systems for mixed power sources and evolving automation architectures. Application: Industrial automation panels powering motors, drives, and logic equipment. Note: This product is designed for Arktite AREA enclosures and offers installation efficiency, robust protection, and lifecycle cost benefits for critical control points.
Get a Quick Quote for a Eaton Crouse-Hinds AREA6415
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds AREA6415?
Enquire Now
FAQs
AREA6415 is designed for Arktite AREA enclosures and fits 1-1/2" trade-size openings. It provides a four-wire, four-pole connection rated at 60A and 600 Vac/250 Vdc, suitable for non-hazardous environments. Its copper-free aluminum construction resists corrosion and simplifies mounting within standard Arktite panels and disconnect enclosures.
AREA6415 is a 60A receptacle assembly rated for 600 Vac and 250 Vdc, with a frequency range of 50 to 400 Hz. It uses a four-wire, four-pole configuration and leverages Style 1 grounding. This combination supports reliable power distribution for motors, drives, and control circuits in industrial settings.
Yes. AREA6415 is classified for Ordinary/Non-Hazardous locations and adheres to NEC/CEC standards. It carries a NEMA 4 rating, offering protection against dust and water ingress in typical manufacturing environments, ensuring compliant and safe operation in non-hazardous areas.
Absolutely. The spring-door design enables quick access for inspections and maintenance, reducing downtime. Its copper-free aluminum body resists corrosion, lowering long-term maintenance costs, while the 1-1/2" trade size and overall dimensions align with common Arktite enclosure footprints for straightforward integration.
OEMs benefit from AREA6415’s standardized dimensions (8.88 in L, 9.44 in H, 5.88 in W) and 7.1 lb weight, which simplify panel layout and handling. The four-wire, four-pole design, combined with 60A and 50–400 Hz capability, broadens compatibility with motors, drives, and automation gear while meeting regulatory requirements for safe, reliable field connections.
