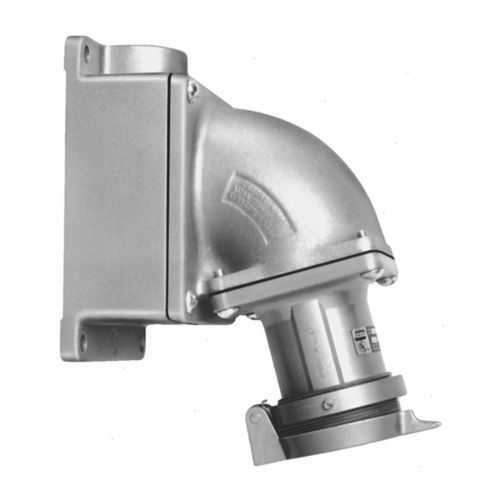

Eaton Crouse-Hinds AREA6585 Receptacle Assembly - NEMA 4
Part Number: AREA6585
Quick Summary
AREA6585 receptacle assembly delivers rugged power connections for Arktite enclosures in industrial environments. It supports 60 A, 600 Vac/250 Vdc, and a 50–400 Hz range to cover diverse control systems. Engineers often face downtime from corrosion, misalignment, or maintenance challenges in harsh locations. This unit meets NEC/CEC standards with a NEMA 4 enclosure and ordinary/non-hazardous area classification, ensuring reliability in typical factory settings. Durable copper-free aluminum construction, Style 2 grounding, and a spring door enable quick servicing without exposing live conductors. The 1-1/2 inch trade size and four-wire, five-pole configuration simplify wiring and panel layout, delivering safer, more efficient installations and lower total cost of ownership.
Product Information
Extended Description
AREA6585 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Arktite AREA receptacle assembly, 60A, Four-wire, five-pole, 50-400 Hz, Style 2, Copper-free aluminum, Spring door, 1-1/2", 600 Vac/250 Vdc
Product Name
Eaton Crouse-Hinds series Arktite AREA receptacle assembly
Catalog Number
AREA6585
Product Length/Depth
8.88 in
Product Height
9.44 in
Product Width
5.88 in
Product Weight
7.1 lb
UPC
782274040912
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4
Amperage Rating
60A
Voltage rating
600 Vac/250 Vdc
Frequency rating
50 to 400 Hz
Grounding type
Style 2
Configuration
Four-wire, five-pole
Trade size
1-1/2"
Receptacle style
Spring door
Material
Copper-free aluminum
Eaton Crouse-Hinds AREA6585 3D drawing
Arktite 60A Metallic Plugs, Receptacles and Connectors catalog page
IF 352 - Model M72 Arktite Plugs and Receptacles
Eaton Specification Sheet - AREA6585
Copper-free aluminum housing provides superior corrosion resistance, extending service life in washdown-prone or humid environments and reducing replacement costs. This material choice translates to a lower total cost of ownership while maintaining enclosure integrity for ongoing safety. The 60A current rating with 600 Vac/250 Vdc capability supports heavier motor and control circuits, enabling more flexible panel designs and faster energization in manufacturing lines and material handling. With a frequency range of 50 to 400 Hz, AREA6585 remains compatible across regional power systems, minimizing rework when shifting facilities or equipment. Four-wire, five-pole configuration with Style 2 grounding improves fault protection and simplifies wiring discipline in control panels. The spring door receptacle style allows rapid field servicing without compromising protective enclosure. Finally, NEMA 4 enclosure protection and Ordinary/Non-Hazardous classification provide dependable operation in standard industrial spaces, reducing maintenance headaches and ensuring predictable performance across shifts.
Get a Quick Quote for a Eaton Crouse-Hinds AREA6585
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds AREA6585?
Enquire Now
FAQs
Install AREA6585 by aligning the four-wire, five-pole receptacle with the enclosure mounting points, then secure the unit using standard hardware for the 1-1/2 inch trade size. Ensure proper grounding via Style 2 and verify 60A rating with 600 Vac/250 Vdc compatibility. Close the spring door to maintain enclosure integrity and protect conductors during operation. Always follow NEC/CEC guidelines and local safety practices.
AREA6585 is a 60A receptacle assembly rated for 600 Vac and 250 Vdc, with a frequency range of 50 to 400 Hz. It features a four-wire, five-pole configuration and Style 2 grounding. The enclosure is NEMA 4 protected and intended for Ordinary/Non-Hazardous locations, ensuring reliable performance in standard industrial environments.
Yes. AREA6585 is classified for Ordinary/Non-Hazardous locations and carries a NEMA 4 rating, making it appropriate for typical factory floors, control rooms, and manufacturing spaces. This combination provides dependable protection against dust and water ingress while meeting NEC/CEC standards for general industrial use.
AREA6585 adheres to NEC/CEC standards and carries a NEMA 4 enclosure rating. It is designated for Ordinary/Non-Hazardous locations, aligning with common industrial compliance requirements and ensuring safe, reliable operation in standard manufacturing and processing environments.
The copper-free aluminum housing resists corrosion, reducing replacement frequency and maintenance downtime. The spring door design simplifies servicing, while the robust 60A, 600 Vac/250 Vdc rating supports durable operation under demanding loads. Together with NEC/CEC compliance and NEMA 4 protection, AREA6585 can lower lifecycle costs and improve uptime across facilities.
