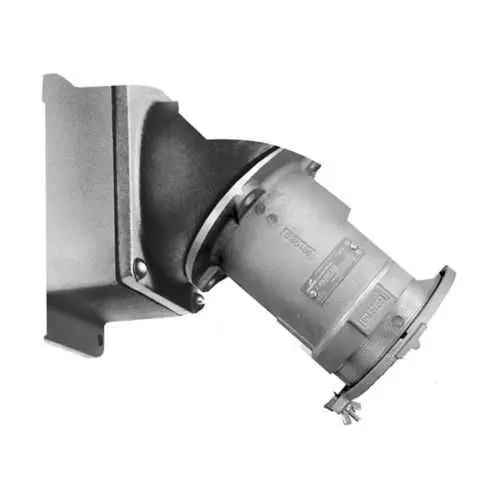

Eaton AREAL20416 Receptacle Assembly - 200A 600 Vac 3R
Part Number: AREAL20416
Quick Summary
AREAL receptacle assembly from Eaton Crouse-Hinds delivers robust power connections for outdoor control panels and industrial enclosures. In the field, installers confront limited space, corrosion risk, and mounting complexity that can derail schedules and safety. This unit carries a NEMA 3R rating and NEC/CEC compliance, with area classification of Ordinary/Non-Hazardous Locations, ensuring dependable outdoor performance. Designed with copper-free aluminum, a spring door, and a mechanical lug termination, AREAL20416 helps reduce maintenance costs and speed wiring in 2-inch trade-size provisions, while supporting 50 to 400 Hz operation and flexible voltage options. End users gain predictable installation footprints and long-term reliability in demanding environments.
Product Information
Extended Description
AREAL20416 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Arktite AREAL receptacle assembly, 200A, Four-wire, four-pole, 50-400 Hz, Style 1, Copper-free aluminum, Spring door, Mechanical lug, 2", 600 Vac/250 Vdc, 0.687"
Product Name
Eaton Crouse-Hinds series Arktite AREAL receptacle assembly
Catalog Number
AREAL20416
Product Length/Depth
15.63 in
Product Height
14.44 in
Product Width
8.38 in
Product Weight
20.4 lb
UPC
662276256279
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
3R
Amperage Rating
200A
Voltage rating
600 Vac/250 Vdc
Frequency rating
50 to 400 Hz
Grounding type
Style 1
Configuration
Four-wire, four-pole
Trade size
2"
Receptacle style
Spring door
Termination style
Mechanical lug
Wire well size
0.687"
Material
Copper-free aluminum
Eaton Crouse-Hinds AREAL20416 3D drawing
Arktite 200A Metallic Plugs, Receptacles and Connectors catalog page
IF 853 - Arktite AR Series, Model 80 200A/400A
IF 853 - Arktite AR Series, Model 80 200A/400A
Eaton Specification Sheet - AREAL20416
200A at 600 Vac/250 Vdc with a 50 to 400 Hz range provides high-current capability for outdoor power distribution without proliferating SKUs, reducing inventory complexity and project lead times for MCCs and outdoor enclosures. Four-wire, four-pole configuration with Style 1 grounding and mechanical lug termination simplifies field wiring, enhances safety, and accelerates commissioning in rugged environments. Copper-free aluminum construction delivers corrosion resistance and lighter weight, lowering handling costs and extending service life in exposure-prone locations. Spring door receptacle styling paired with a 2" trade size and 0.687" wire well supports larger conductors while maintaining a tight seal against dust and moisture, improving reliability in non-hazardous outdoor settings. Compliance features include NEMA 3R and NEC/CEC alignment, giving contractors confidence in code adherence, safer maintenance practices, and quicker procurement decisions in industrial facilities.
